4 DVR Installation Guideline
4.1Product Overview
37

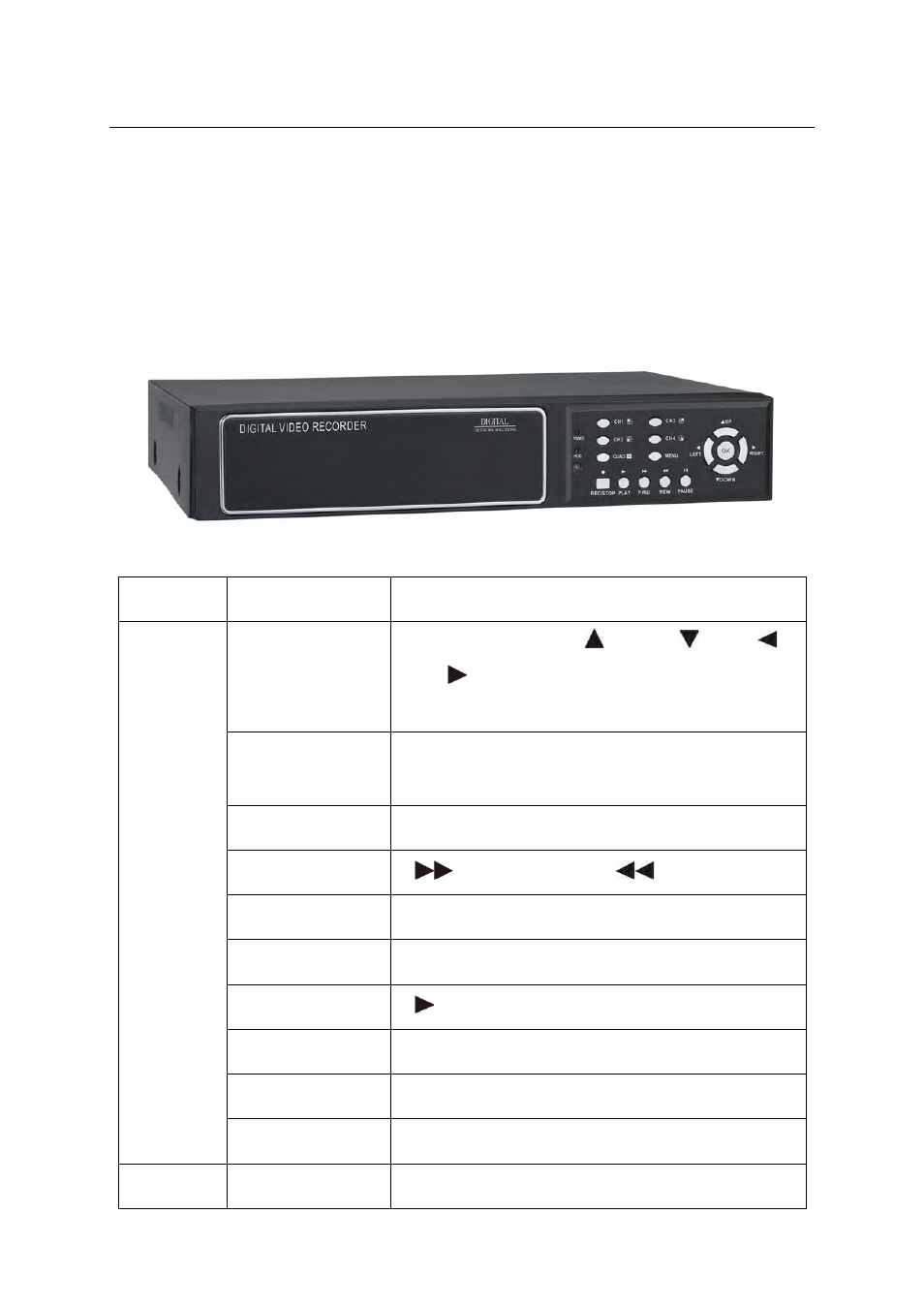

1. The Definition of Buttons and Connectors on Front Panel
NO. TYPE NAME
Direction key
direction key include: up【 】、down【 】、left【 】、
right【 】four buttons, which can move cursor to setup
and control PTZ.
OK/PTZ（OK/PTZ）
Confirm operation, or into PTZ control panel under live
view
Stop key 【■】 Stop button
Speed choice
【 】 fast forward button、 【 】 fast reverse button
Pause key 【‖】 pause key
Single image CH1、CH2、CH3、CH4 single image choice
playback 【 】 PLAY recording playback button
MENU/EXIT Enter into main menu under live view, or exit sub menu
HDD HDD Status
Control
button
POW power
IR receiver IR Remote control receiver
