Part No. 4801-0172 Rev 10/05 PowerTrak Jr. Page 7 of 18
Important!
Evenly distribute weight on each cable to ensure that the
load block will operate properly.
6.2.3 Installation Of Load Block Cable
1. With the PowerTrak Jr. securely mounted, install load block cable. Run ends of cable
through the holes in the top of the cabinet to the load block as in Figure 2. From the
top of the load block insert the cables through the two holes nearest the center of the
load block as shown in Figure 2. Loop the cables and insert the ends upward
through the outside holes of the load block.
2. Attach cable clamps to fasten ends of cables as shown in step 3 of Figure 2.
Securely tighten the cable clamps.
3. Hook up electrical wiring and controller wiring as shown in Section "Wiring Diagrams,
Schematics". All wiring must comply with all National and Local Electric Codes.
4. Close access door to the unit.
5. Replace cabinet cover.
6. This completes mounting of machine.

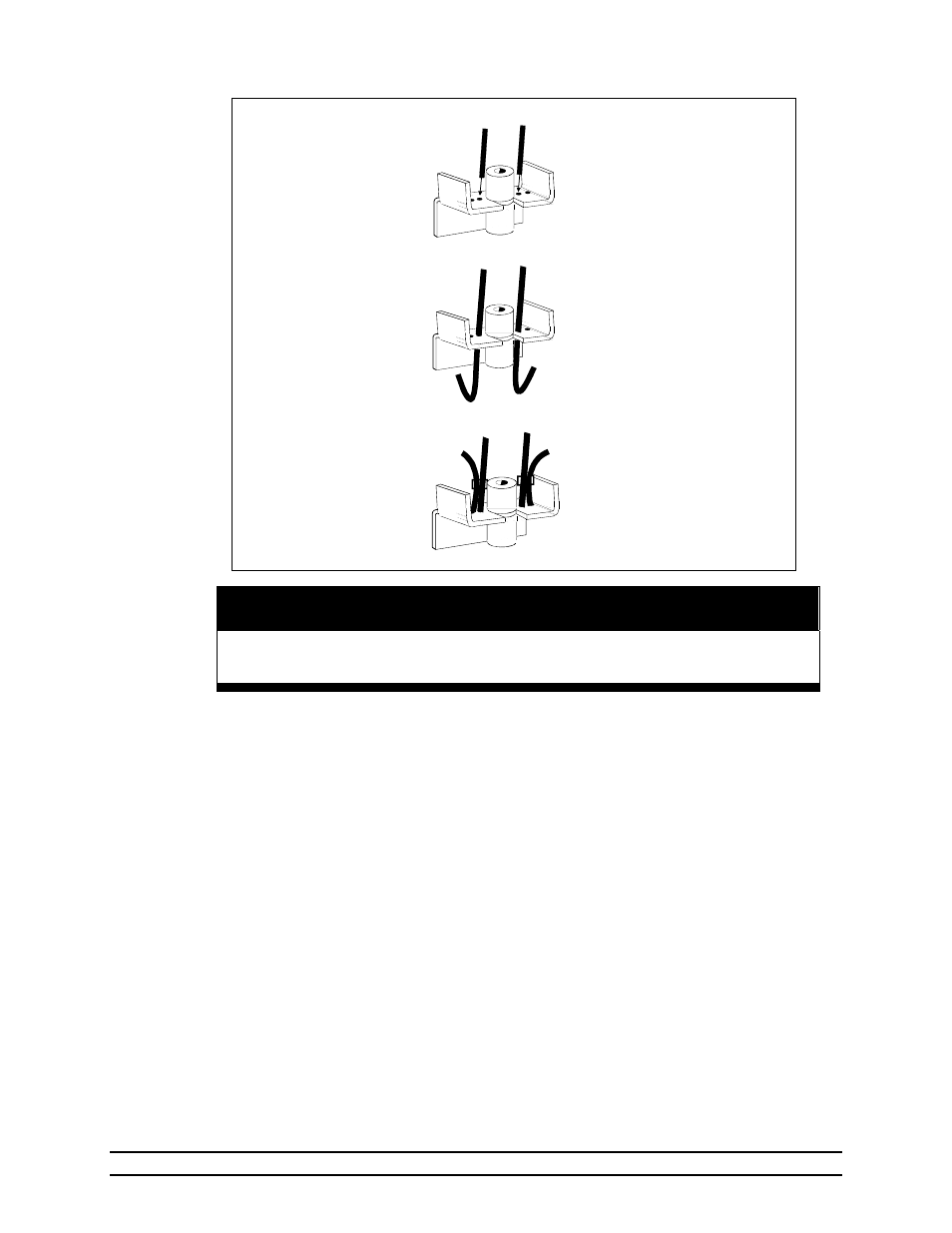

Figure 2
Note: The cabinet housing
and drive screw are not
shown for clarity. Load
block tilted for better view.
Bring ends of cables
through two holes nearest
the center of the load block.
Loop ends of cable
and insert them back
up through the outer
holes of load block.
Step 1
Step 2
Step 3
Securely fasten ends of
cables with cable
clamps.
