Part No. 4801-0172 Rev 10/05 PowerTrak Jr. Page 6 of 18
2
1

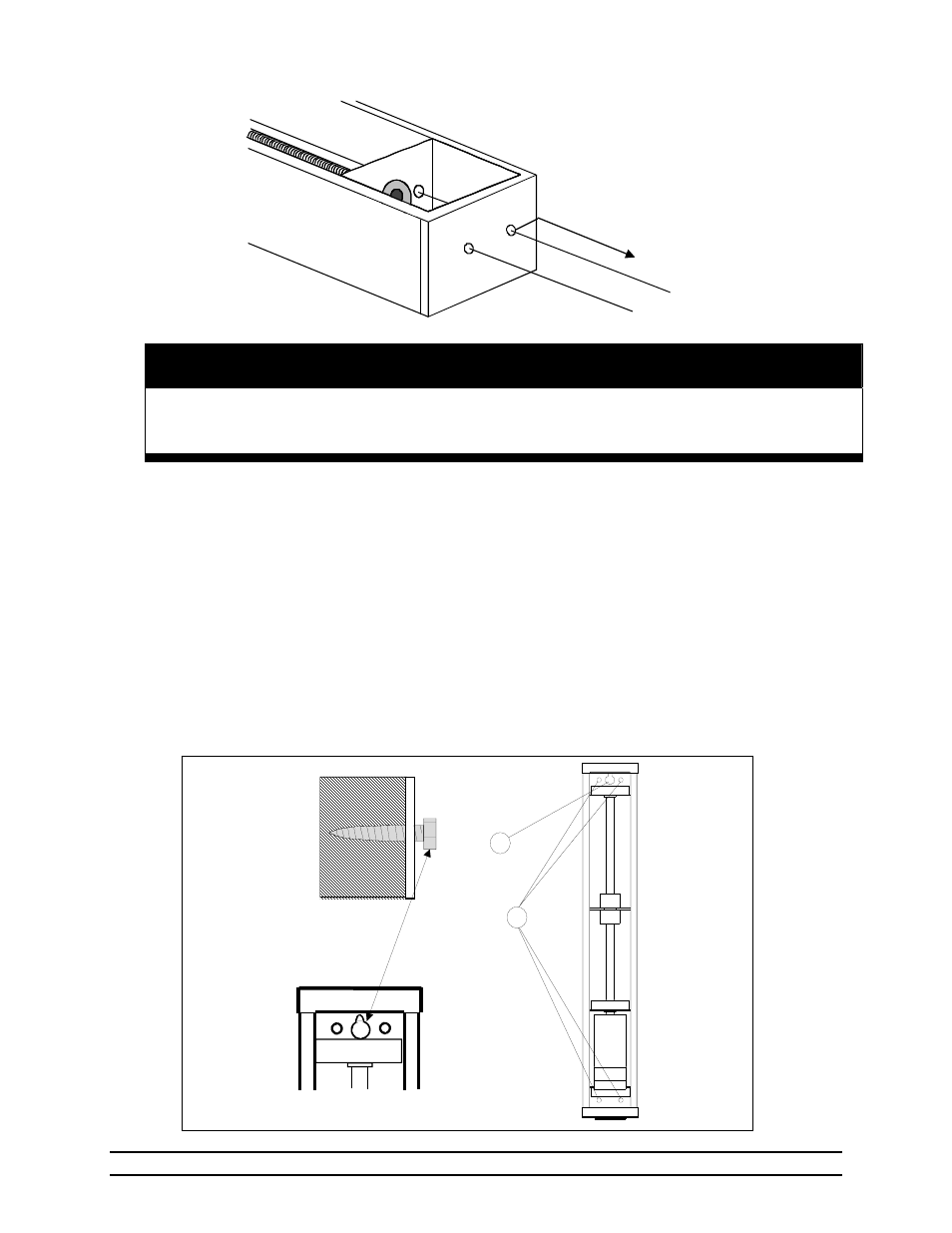

Figure 1
3/8" (9.5 mm)
Lag Bolt
Important!
Always Keep Cable Direction Perpendicular To Top Of Cabinet
To Prevent Excessive Cable Wear.
6.2.2 Mounting Machine
1. Remove cabinet cover. Locate slotted mounting hole in top of rear panel between
the two round mounting holes (see 1 in Figure 1). Position machine in the desired
mounting location. Mark the position of the slotted mounting hole.
2. Refer to Figure 1. At the marked location, drive one 3/8" lag bolt through the wall of
the building, or into a mounting board. Leave about 1/4" between the bolt head and
wall.
3. Hang machine onto lag bolt through the slotted top hole.
4. Use the remaining four 3/8" lag bolts provided to secure the PowerTrak Jr. into
position. There are two mounting holes near the top and two mounting holes near
the bottom of the rear panel of machine (see 2 in Figure 1). Install the bolts through
these four mounting holes in the rear panel of the PowerTrak Jr. Tighten bolts
securely.
Machine cable should be
positioned so that the two
cables exit at right angle
to the top of cabinet.
90°
