Warning, Farm hand alert alarm – Hired-Hand Emergency Back-Up and Alarms: Alert Alarm User Manual
Page 22
Part No. 4801- 5085 Rev 5-01
Farm Hand Alert Alarm
20
Jumper J11 is used to represent a “Lights On” condition. If a Light Program is used, J11
must be removed and the circuit shown in “Light Control” should be added.

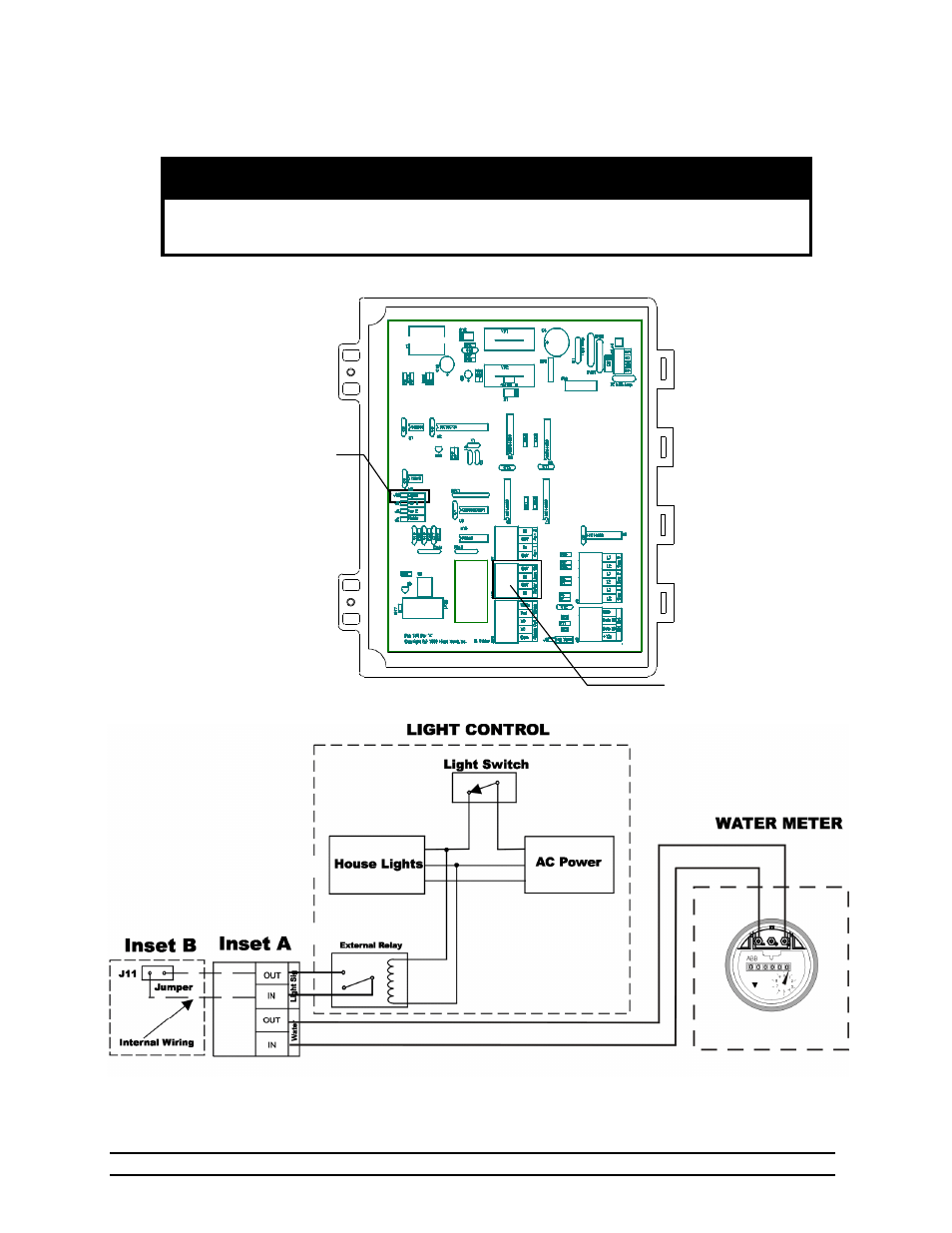

13.8 Connecting the Alert Alarm to the Water Meter and Light Control
Warning!
The external relay is not supplied for the light circuit. Do not apply high
voltage AC to the “Light Sig” input!
Farm Hand Alert Alarm
Inset A
Inset B
