Part No. 4801- 5085 Rev 5-01 Farm Hand Alert Alarm 18
13.6 Connecting Other Farm Hand Controllers to the Alert Alarm
N.C. N.O.
Aux Alarm
N.C. N.O.
Aux Alarm

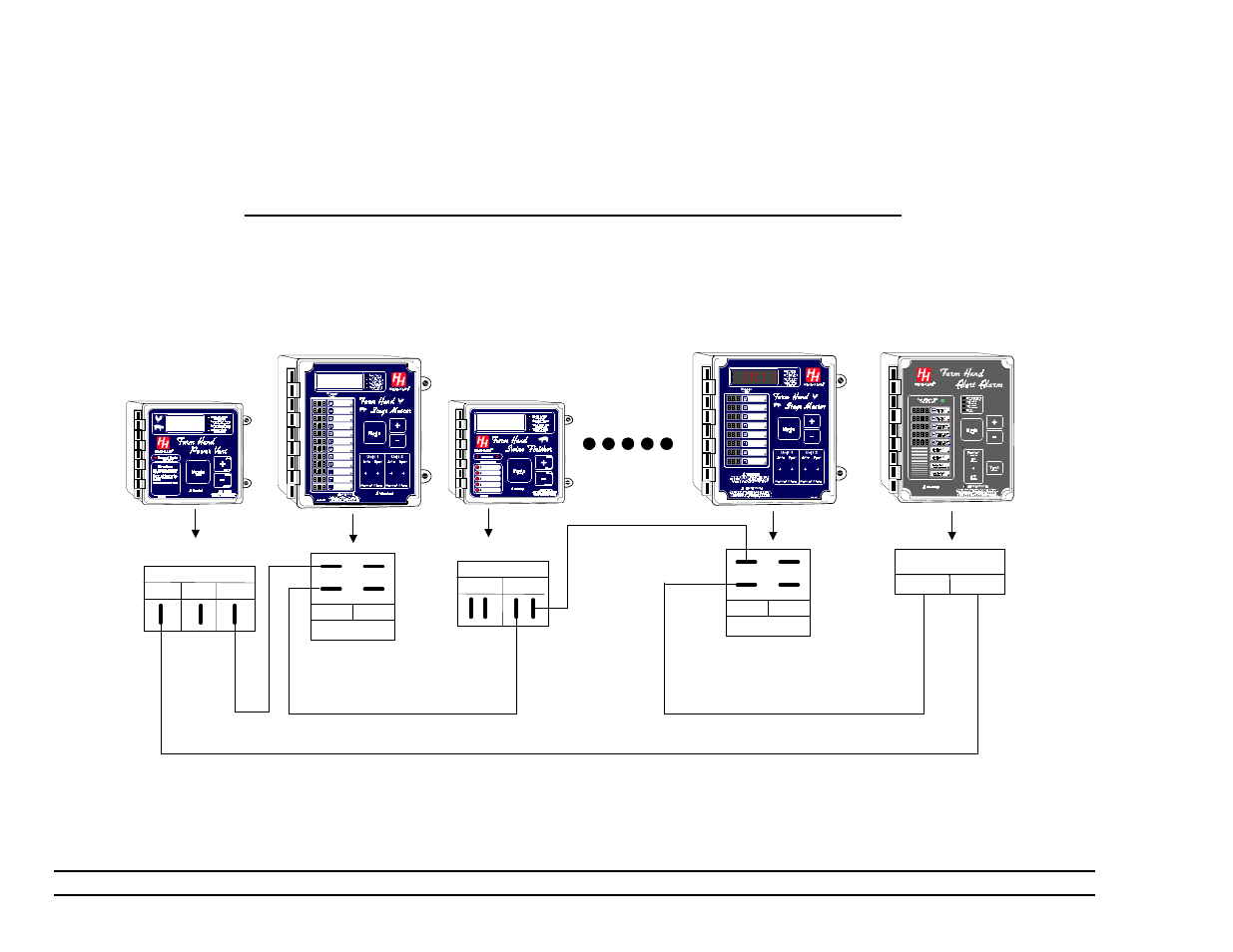

The diagram below shows the proper way to connect the Farm Hand family of auxillary alarm outputs to a Farm
Hand Alert Alarm. The alarm activates when the connection is broken between the OUT and IN terminals.
Farm Hand Alert Alarm Series Alarm Connection
Note 1: As long as a path for current to flow is present, the Alert
Alarm is not activated. Consequently, if one controller alarms, the
path will be broken and the alarm will be activated.
Alarm
N.O. N.C.
Alarm
N.C. N.O. Com
Aux1 or Aux 2
OUT IN
Note 1
Note 2
Note 2: Remove the jumper between the OUT ans
IN terminals when installing external alarm inputs.
