3. Adjust Switches

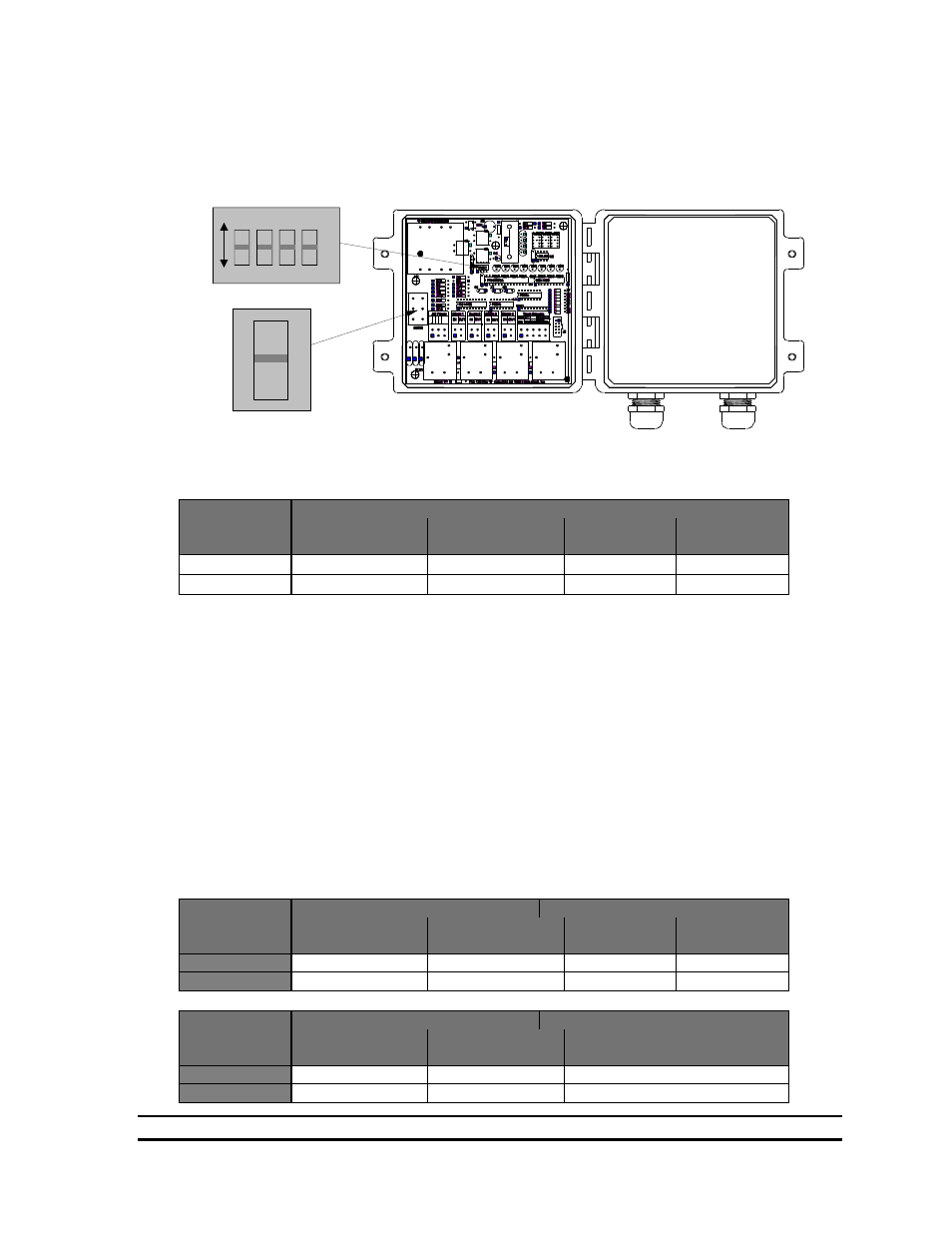

3.1 Switch Locations
3.2 Farm Hand Back Up Switch Settings
Table 1. Farm Hand Back Up DIP Switch Options
SWX1-Fahrenheit/Celsius
This switch toggles between Fahrenheit and Celsius operation. If the switch is
set to ON, the controller will display the temperature as Fahrenheit. If the
switch is set to OFF, the controller will display the temperature as Celsius.
(Note: If you change the switch, you will have to reset your High Limit
and Low Limit).
SWX2-1/2 Rooms
This switch selects between one or two room operation.
If switch is ON, then the controller is set for two room operation.
If switch is OFF, then the controller is set for one room operation.
SWX3-Heat/Cool Options Of Stages 2 and 4
This switch selects the heat or cool option for stages 2 and 4. See Table 2.
Switch Numbers
Switch
Position
1
(Temp. Units)
2
(Operation)
3
(Heat/Cool)
4
(Sensors)
ON Fahrenheit (
°
F) Two Rooms See Table 2 2 Sensors
OFF Celsius (
°
C) One Room See Table 2 1 Sensor
ON
OFF
SWX1
SWX2
1 2 3 4
115v
230v
SWX5
SWX1,2,3,4
Switch Settings Stages 2/4 Options
Two Room
Operation
SWX 2 SWX 3 Stage 2 Stage 4
(Stages 1,3 ON ON Heat Heat
Cool Only) ON OFF Cool Cool
Switch Settings Stage 4 Options
One Room
Operation
SWX 2 SWX 3 Stage 4
(Stages 1,2,3 OFF ON Heat
Cool Only) OFF OFF Cool
Table 2. Heat/Cool Options
