QPAC User's Guide 7 Chapter 2: Install & Wire
7.9mm
(5/16 in - 18)
5.7mm
(0.225 in)
9.7mm
(0.38 in)
3.8mm
(0.15 in)
88.9mm (3.50 in) minimum
106.4mm (4.19 in) maximum
Top View Right Side View
25.4mm
(1.00 in)
13.5mm
(0.53 in)
31.8mm
(1.25 in)
21.1mm
(0.83 in)
40.4mm
(1.59 in)

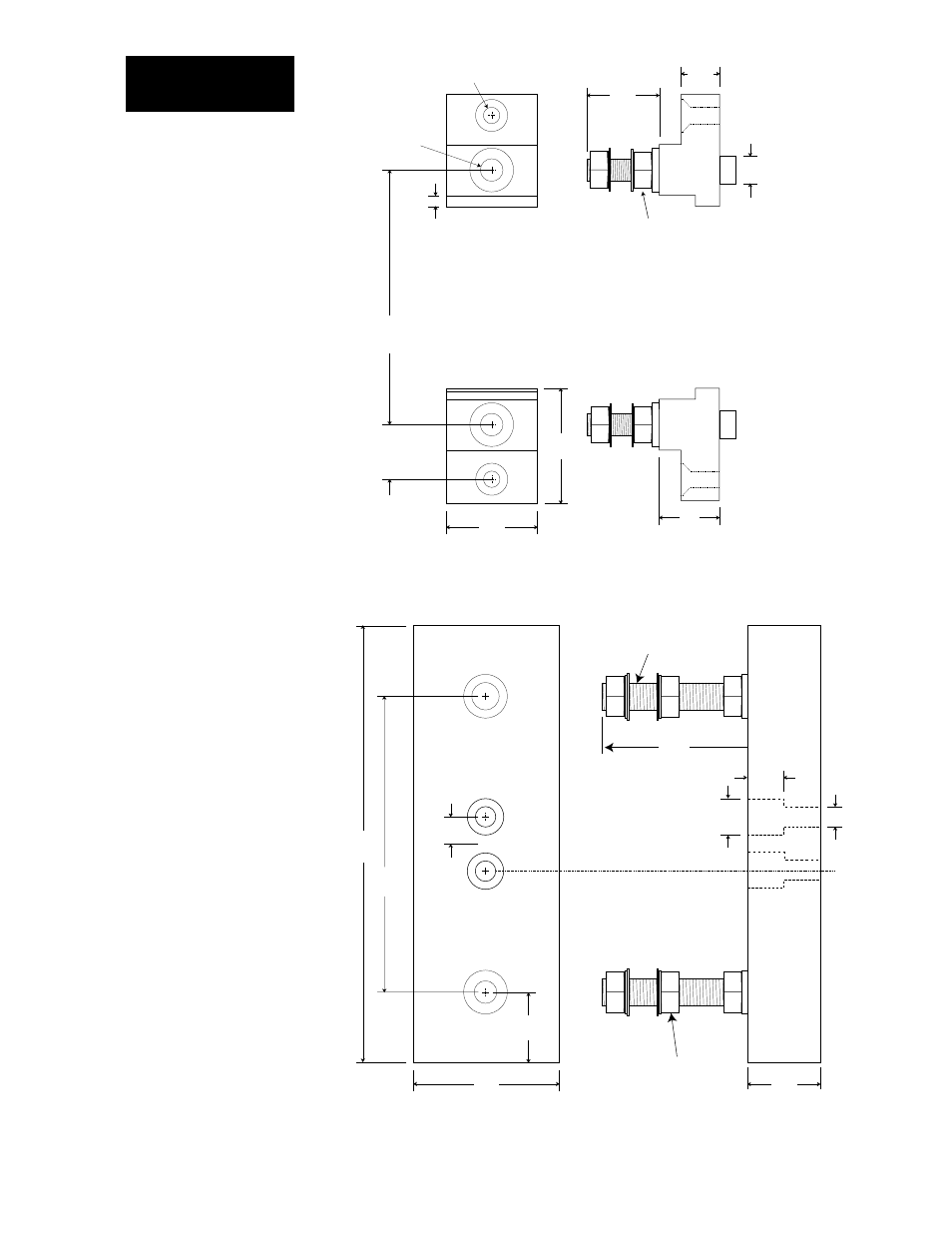

Template for Fuse Holders
sent with QPAC 150 Amp 575 V
Ensure nut and washer
are used below and above fuse
19.1mm
(0.75 in)
Mounting
Top View Right Side View
Template for Fuse Holders
sent with QPAC 200 & 300 Amp 575 V
Ensure nut and washer
are used below and above fuse
152.0mm
(6.00 in)
103.17mm
(4.062 in)
9.5mm
(0.375 in - 16)
25.4mm
(1.00 in)
50.8mm
(2.00 in)
9.7mm
(0.38 in) Typical
24.6mm
(0.97 in)
12.7mm
(0.50 in)
7.1mm
(0.281 in)
12.7mm
(0.50 in)
50.8mm
(2.00 in)
Template for Fuse Holders
with QPAC 150A, 575V.
Template for Fuse Holders
with QPAC 200 and 300A,
575V.
