Single- and three-phase current transformer wiring, Dh card operation — heater diagnostics, Setup procedure – Watlow QPAC User Manual

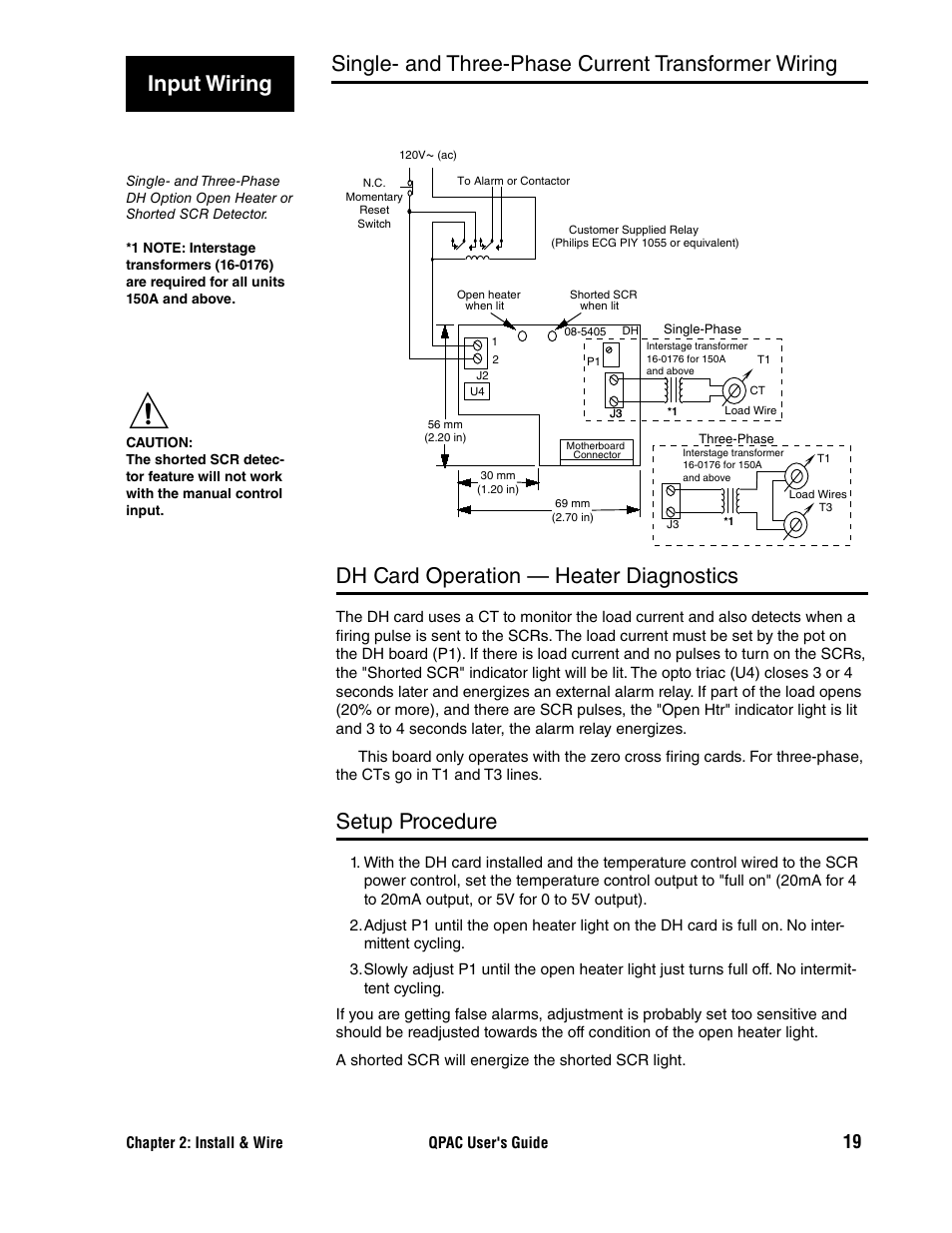

Page 19: Input wiring
