Watlow EZ-ZONE PM Express Limit User Manual
Page 8
EZ-ZONE PM Limit Express
• 8 •
Install & Wiring

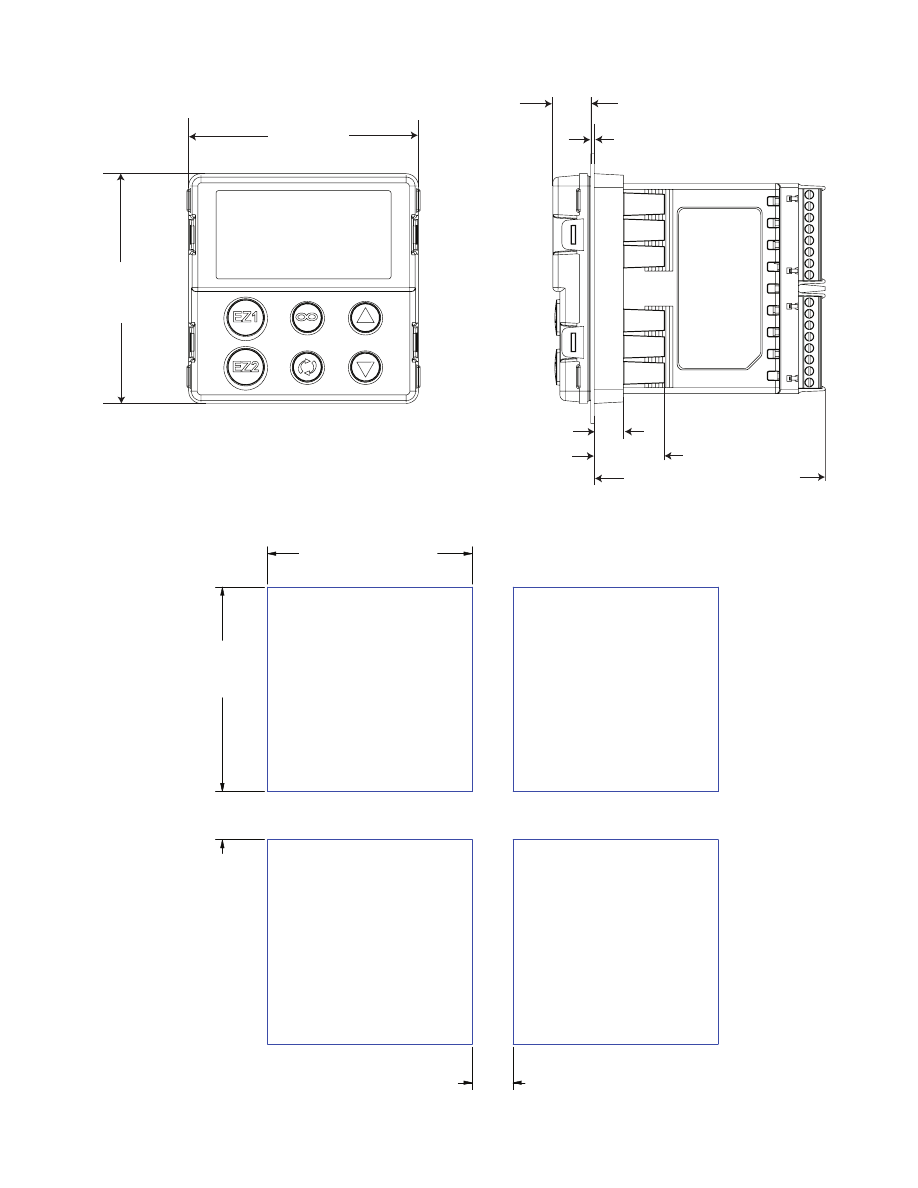

Dimensions 1/4 DIN (PM4) Dimensions
100.33 mm
(3.05 in)
100.33 mm
(3.95 in)
15.75 mm (0.62 in)
12.70 mm
(0.50 in)
1.52 mm (0.06 in)
30.73 mm (1.21 in)
100.84 mm (3.97 in)
92.00 to 93.0 mm
(3.62 to 3.65 in)
panel thickness 1.53 to 9.52 mm
(0.060 to 0.375 in)
21.6 mm
(0.85 in)
Minimum
21.6 mm
(0.85 in)
Minimum
92.00 to 93.0 mm
(3.62 to 3.65 in)
