EZ-ZONE PM Limit Express
• 4 •
Install & Wiring
Installation and Wiring

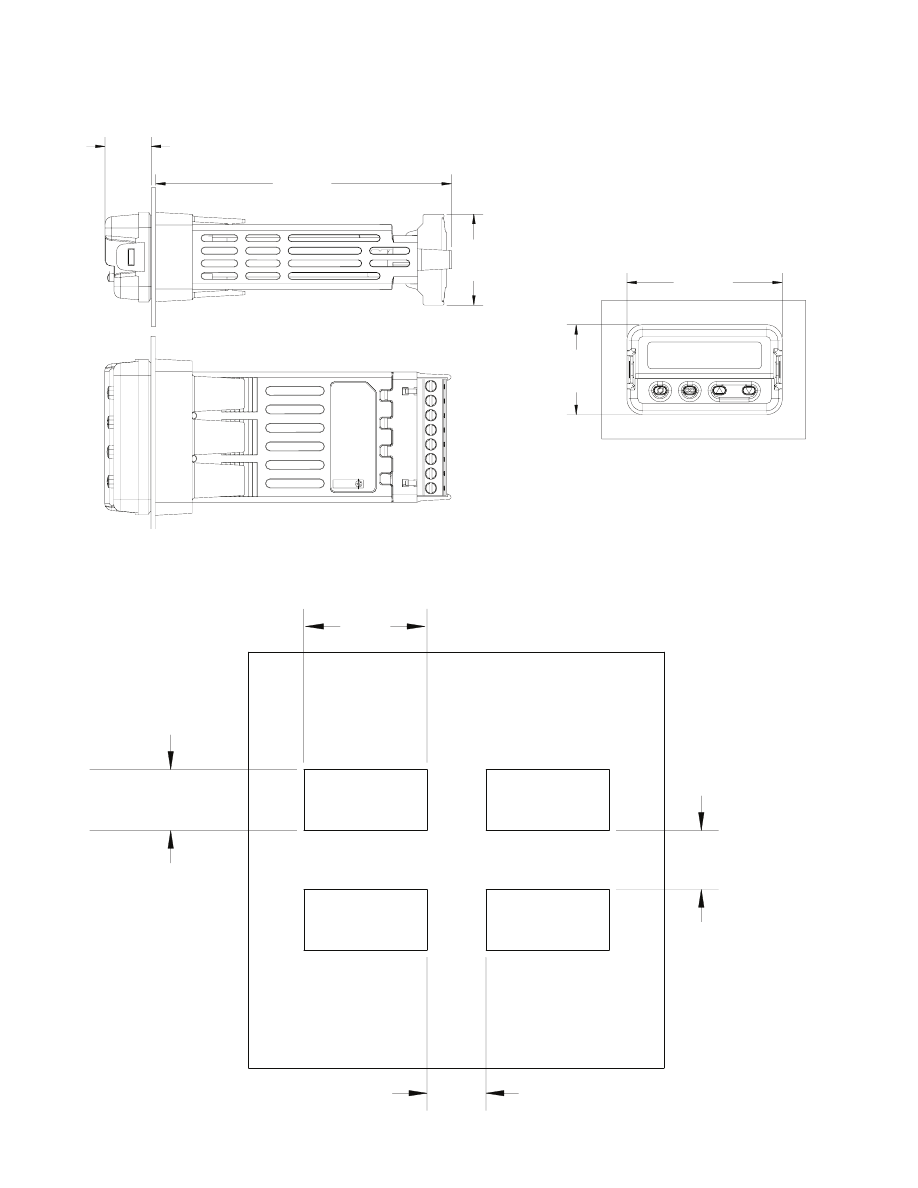

1/32 DIN (PM3) Dimensions
Side
Front
Top
15.9 mm
(0.63 in)
101.6 mm
(4.00 in)
31.2 mm
(1.23 in)
53.3 mm
(2.10 in)
30.9 mm
(1.22 in)
1/32 DIN (PM3) Recommended Panel Spacing
21.6 mm
(0.85 in)
minimum
21.6 mm
(0.85 in)
22.2 to 22.5 mm
(0.87 to 0.89 in)
44.96 to 45.47 mm
(1.77 to 1.79 in)
