Watlow EZ-ZONE PM Express Limit User Manual
Page 7
EZ-ZONE PM Limit Express
• 7 •
Install & Wiring

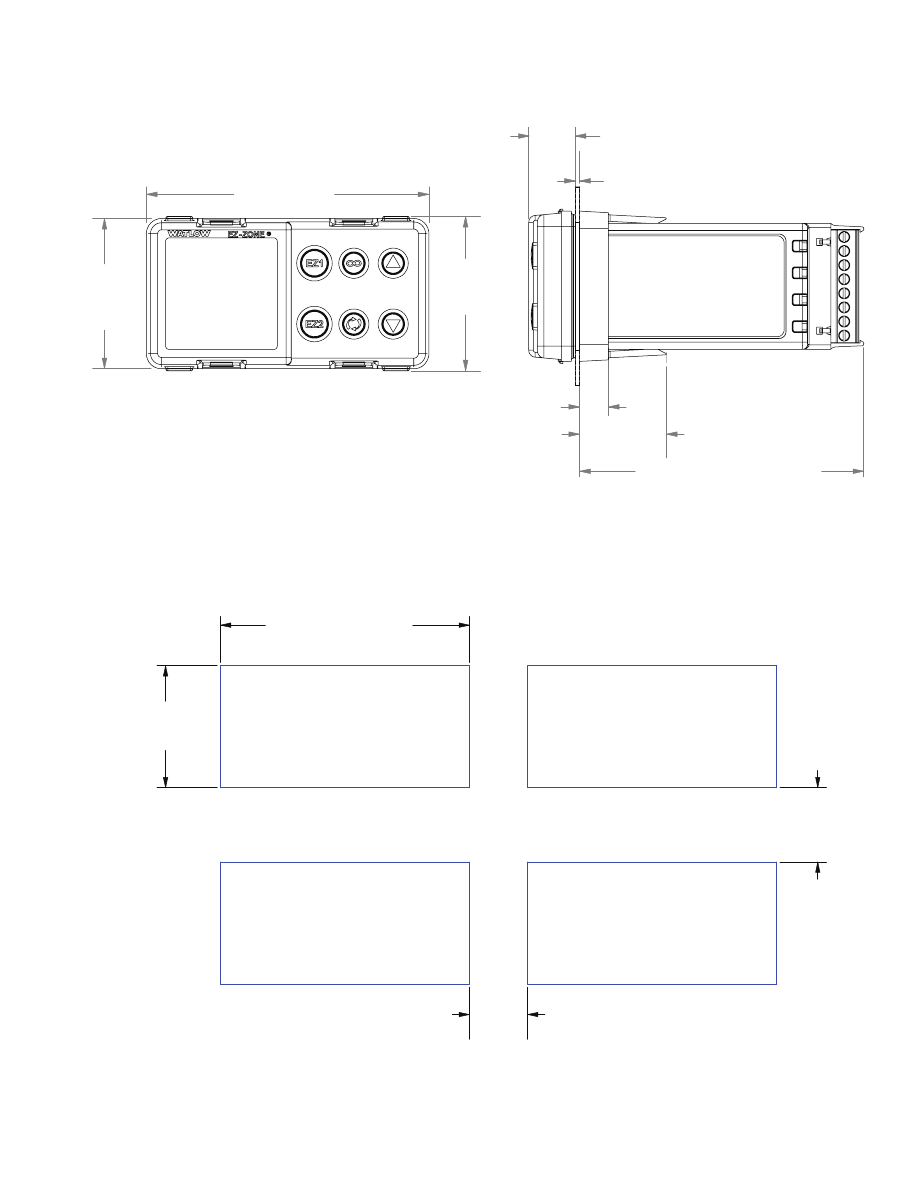

1/8 DIN (PM9) Horizontal Recommended Panel Spacing
44.96 to 45.6 mm
(1.77 to 1.79 in)
92.00 to 92.80 mm
(3.62 to 3.65 in)
panel thickness 1.53 to 9.52 mm
(0.060 to 0.375 in)
21.6 mm
(0.85 in)
Minimum
21.6 mm
(0.85 in)
Minimum
53.34 mm
(2.10 in)
100.33 mm
(3.95 in)
53.8 mm
(2.16 in)
15.75 mm (0.62 in)
1.52 mm (0.06 in)
10.16 mm
(0.40 in)
30.73 mm (1.21 in)
101.60 mm (4.00 in)
1/8 DIN (PM9) Horizontal Dimensions
