Watlow EZ-ZONE PM Express Limit User Manual
Page 5
EZ-ZONE PM Limit Express
• 5 •
Install & Wiring
Side
Front
Top
15.8 mm
(0.62 in) 101.6 mm
(4.00 in)
51.2 mm
(2.02 in)
53.3 mm
(2.10 in)
53.3 mm
(2.10 in)

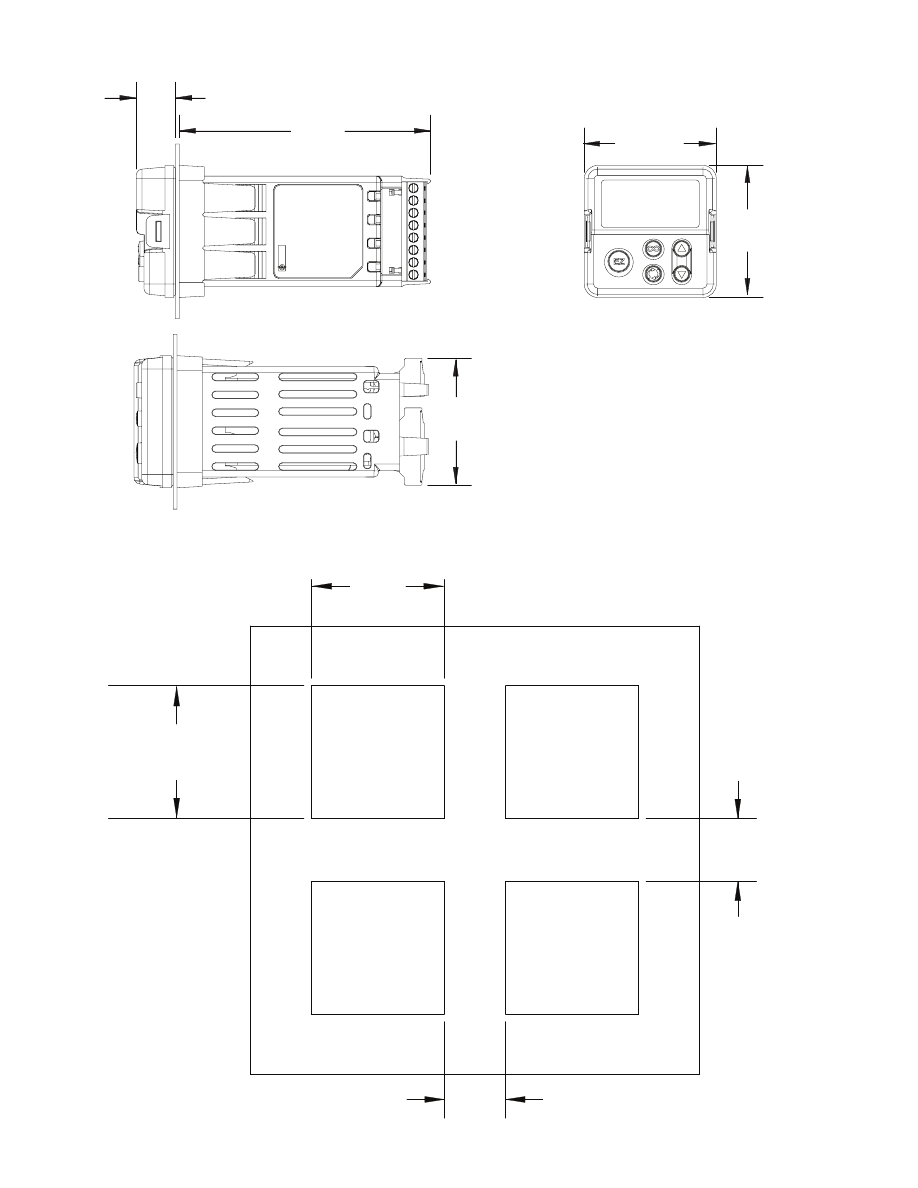

1/16 DIN (PM6) Recommended Panel Spacing
21.6 mm
(0.85 in)
minimum
panel thickness 1.53 to 9.52 mm
(0.060 to 0.375 in)
44.96 to 45.47 mm
(1.77 to 1.79 in)
44.96 to 45.47 mm
(1.77 to 1.79 in)
21.5 mm
(0.85 in)
1/16 DIN (PM6) Dimensions
