Watlow EZ-ZONE PM Express Limit User Manual
Page 6
EZ-ZONE PM Limit Express
• 6 •
Install & Wiring

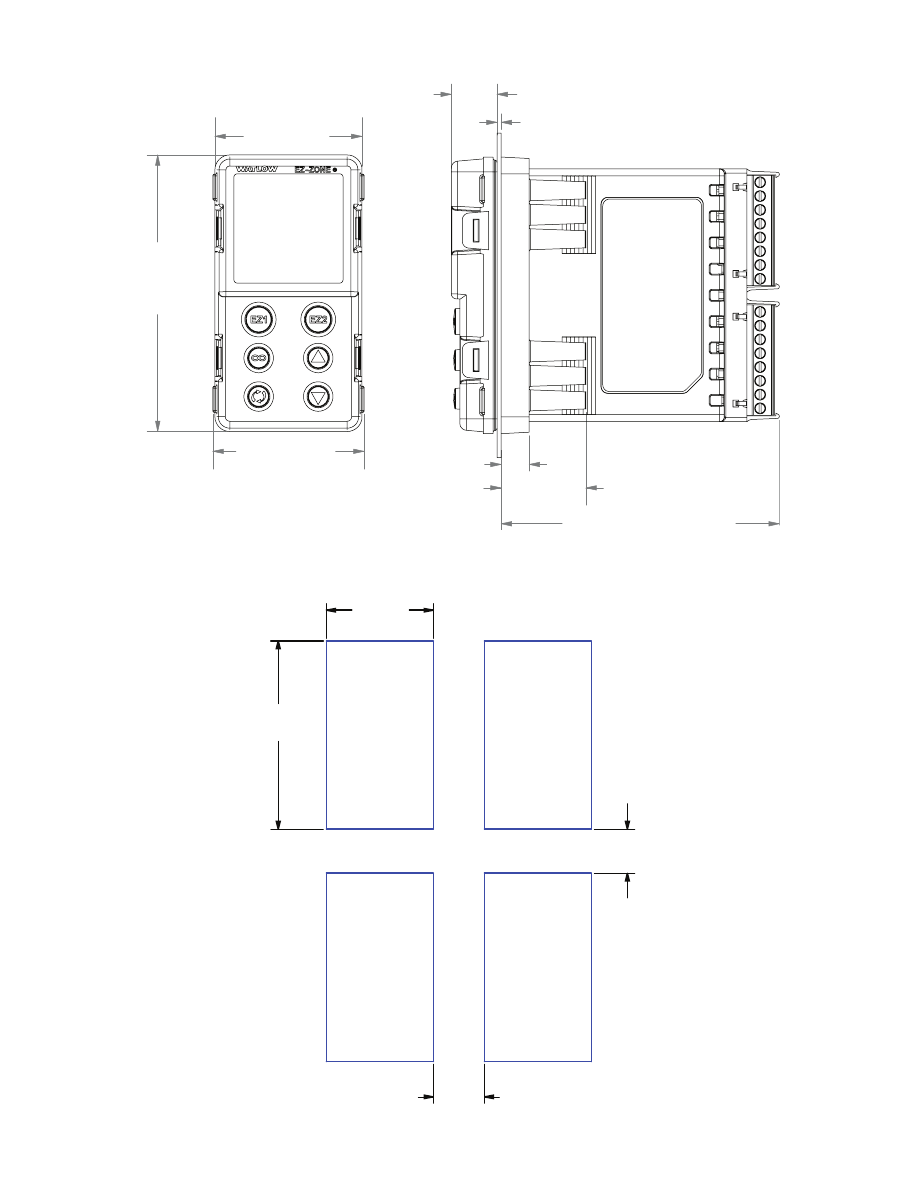

1/8 DIN (PM8) Vertical - Recommended Panel Spacing
92.00 to 92.80 mm
(3.62 to 3.65 in)
44.96 to 45.60 mm
(1.77 to 1.79 in)
panel thickness 1.53 to 9.52 mm
(0.060 to 0.375 in)
21.6 mm
(0.85 in)
Minimum
21.6 mm
(0.85 in)
Minimum
53.34 mm
(2.10 in)
100.33 mm
(3.95 in)
15.75 mm (0.62 in)
10.16 mm
(0.40 in)
54.8 mm
(2.16 in)
1.52 mm (0.06 in)
30.73 mm (1.21 in)
101.60 mm (4.00 in)
1/8 DIN (PM8) Vertical Dimensions
