DVI-D I/F Expansion Board(Built-in option)
This interface is a Built-in option.
Please note that the DVI-D I/F Expansion Board and the embedded DVI-I Interface are
different.
WARNING
EQUIPMENT DISCONNECTION OR UNINTENDED EQUIPMENT OPERATION
z
Use the Single-link Monitor to connect DVI-D I/F Expansion Board. If you use
the Dual-link Monitor, the monitor is unable to show and it will cause malfunction
to the monitor.
z
Do not connect anything to pins for n.c. and System Reserve.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.

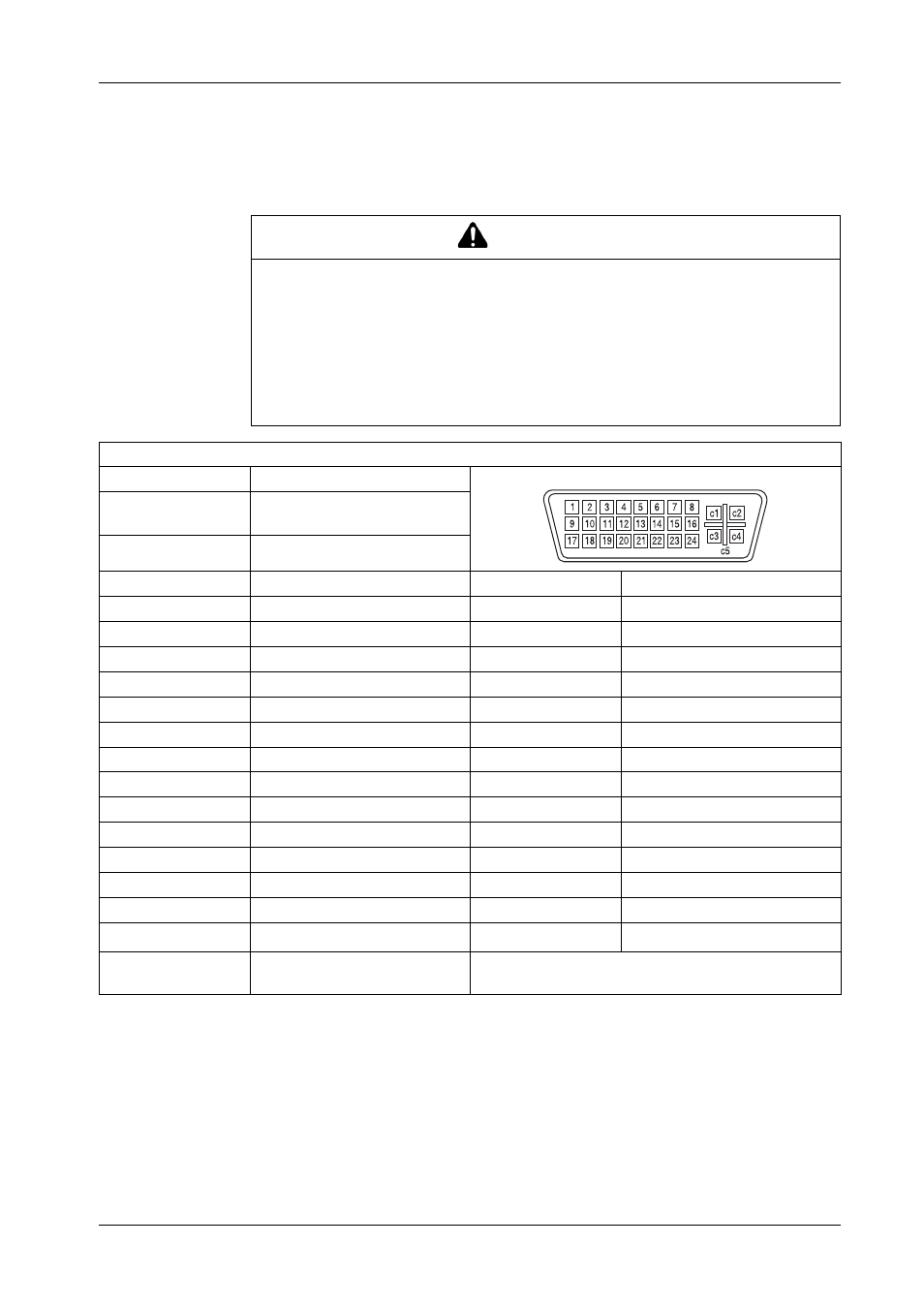

DVI-D I/F Expansion Board
Type
DVI-I 24 pin, Socket
Recommended Screw
Type
No.4(40 UNC)
Cable length
Max. 5 meters (16.40 feet)
Pin
Assignment
Pin
Assignment
1
T.M.D.S. data 2-
16
Hot Plug detect
2
T.M.D.S. data 2+
17
T.M.D.S. data 0-
3
T.M.D.S. data 2 shield
18
T.M.D.S. data 0+
4
System Reserve
19
T.M.D.S. data 0 shield
5
System Reserve
20
System Reserve
6
DDC clock
21
System Reserve
7
DDC data
22
T.M.D.S. shield
8
n.c.
23
T.M.D.S. clock +
9
T.M.D.S. data 1-
24
T.M.D.S. clock -
10
T.M.D.S. data 1+
c1
n.c.
11
T.M.D.S. data 1 shield
c2
n.c.
12
System Reserve
c3
n.c.
13
System Reserve
c4
n.c.
14
+ 5V power
*1
c5
n.c.
15
Ground (return for + 5 V, HSync
and VSync)
*1
Protected internally by a multifuse
