Datasheet
©2013 Pro-face. All rights reserved. Specifications may change without notice.
Customer Service Hotline: 800.289.9266
ACCESS
www.profaceamerica.com
For more information

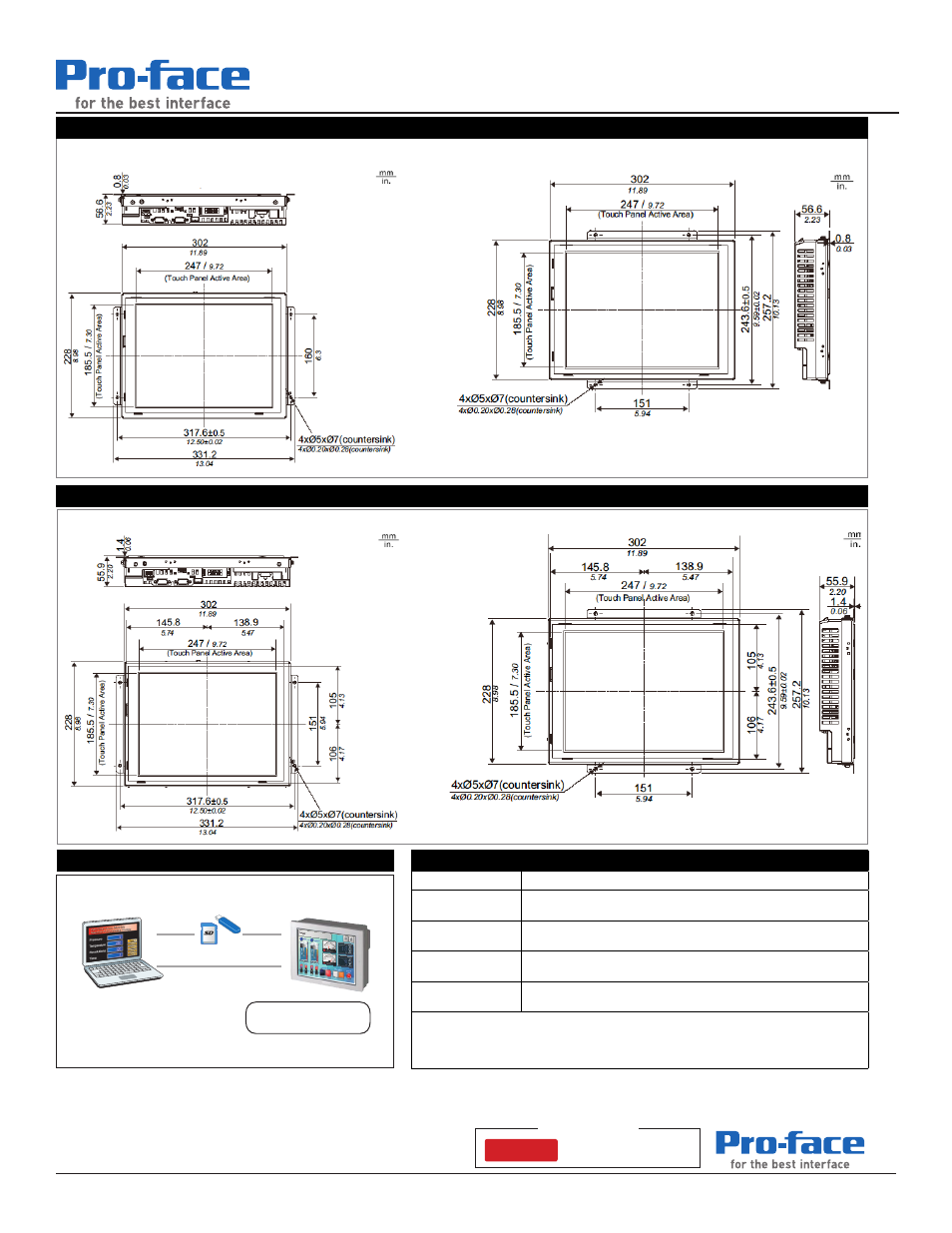

GP-4601TADR - Panel Type Standard Mount Dimensions*
GP-4601TADR - Panel Type Flat Mount Dimensions*
Pro-face America
Phone: 734.477.0600
Fax: 734.864.7347
www.profaceamerica.com
DS-GP4601TR(A)
Easily Transfer Data
▲
▲
▲
7UDQVIHU7RRO
6'&DUG
86%0HPRU\
(WKHUQHW/$1RU86%FDEOH
7KHGDWDWUDQVIHUWRROFDQEHGRZQORDGHG
IRUIUHHIURPWKH:HE
KWWSZZZSURIDFHDPHULFDFRP
6FUHHQGDWDFDQEHXSGDWHGE\XVLQJWKHGDWDWUDQVIHUWRRO
HYHQZLWKRXWDVRIWZDUHOLFHQVH
Ordering Information
Part Number
Description
PFXGP4601TADR
GP-4601TR: 12.1" TFT Color Touchscreen (Analog), SVGA, 2x Serial, Ethernet, 2x USB, SD,
100-240VAC, UL/CE, Rear mounting options
PFXGP4601TADRF0C
GP-4601TRC: 12.1" TFT Color Touchscreen (Analog), SVGA, 2x Serial, Ethernet, 2x USB, SD,
100-240VAC, UL/CE, Rear mounting options, conformal coating
PFXZGPAFRL1
12.1-inch & 10.4-inch Rear mount Installation Fastener*1, GP4000 Rear Mount model Installation
Gasket (1 piece)
PFXZGPFSR12W1
12.1-inch Overlay*2*3, Overlay(Front Sheet) for Flat mount of GP4000 Rear Mount model (Color:
White, 1 piece)
*1 These options can not be used with the standard GP4000 products. *2 These overlays can only be used with the flat mounted
GP4000R Series products. Whenstandard mounting is used, no overlay can be used. Overlays
.
The standard GP4000 series
Screen Protection Sheet (PFXZCBDS***) can be applied on top of the Overlay. *3 If you would like to request customization about
overlay, such as other size or different colors or customer /company logo stickers, please contact Customer Care.
Installation with fasteners attached to the top and bottom surfaces of the GP unit
Installation with fasteners attached to the sides of the GP unit
*Additional mounting options available on profaceamerica.com
*Additional mounting options available on profaceamerica.com
Installation with fasteners attached to the top and bottom surfaces of the GP unit
Installation with fasteners attached to the sides of the GP unit
