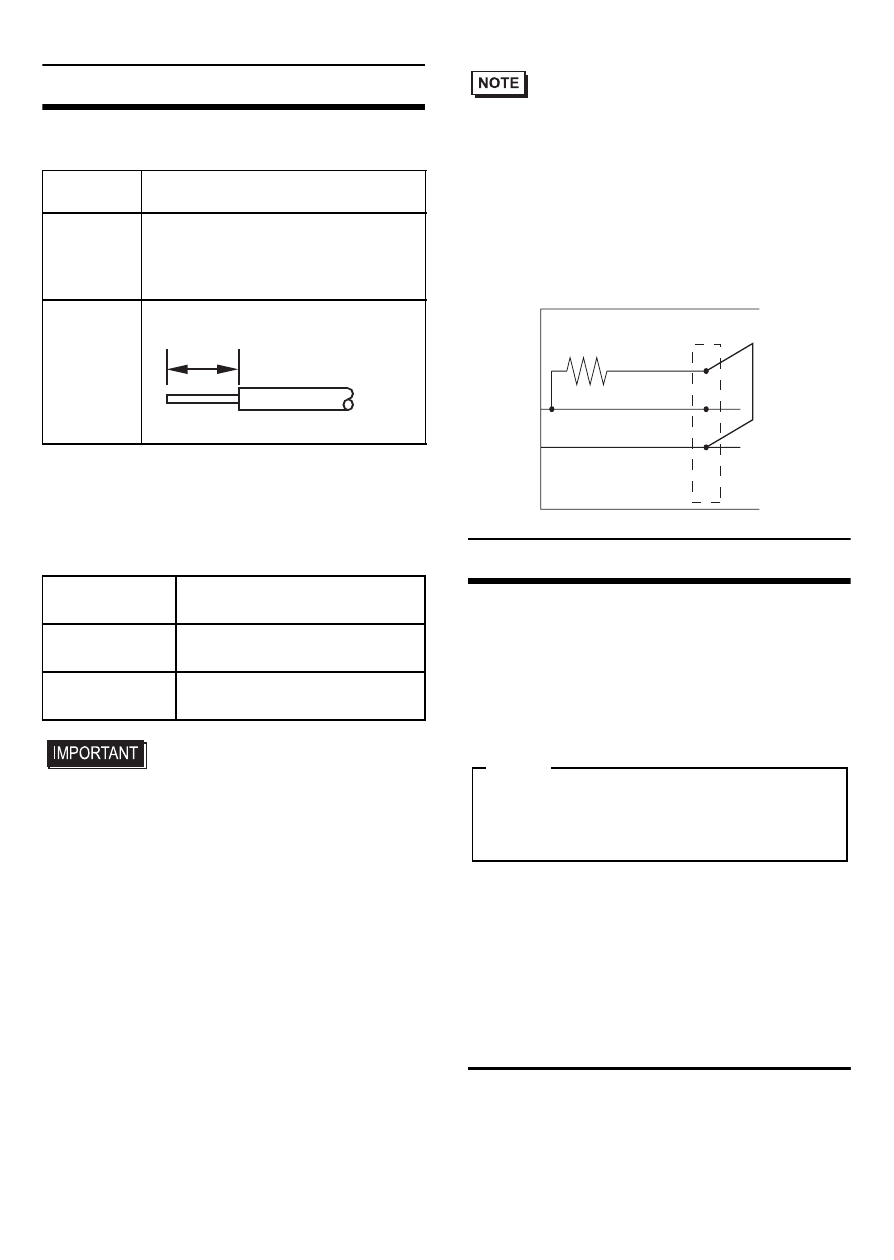

Wiring
Direct Connection Specifications
Pin Terminal Specifications when
using Crimp Terminals
• Please use the following items when creating a
cable. All items listed below are made by Phoenix
Contact.
• When attaching terminal screws, be sure to use a
standard (flatblade: 0.4 x 2.5) type screwdriver.
• The appropriate torque is 0.22 N•m to 0.25 N•m
(1.95 lb-in to 2.21 lb-in).
• Do not solder the cable's joined section.
• Digital's RS-422 Terminal Block Conversion
Adapter cannot be connected to the Mitsubishi
PLC 2Port Adapter (GP030-MD11-0). However, it
can be connected to Digital's Mitsubishi PLC A,
QnA, FX Series 2Port Adapter II (GP070-MD11).
• When termination resistance is needed, shorting
the RS-422 terminal block adapter's TRM and
RDB wires inserts 100
Ω of resistance between
RDA and RDB.
Connection Information
The wired RS-422 Terminal Block Conversion
Adapter will be attached to Display's Serial Interface
(COM).
Digital Electronics Corporation
8-2-52 Nanko-higashi
Suminoe-ku, Osaka 559-0031
JAPAN
TEL: +81-(0)6-6613-3116
FAX: +81-(0)6-6613-5888
http://www.pro-face.com
The information in this document is subject to
change without notice.
Copyright 2011 Digital Electronics Corporation. All
rights reserved.
PFXZCBADTM1-MT01-CP
2011.8.IT/B
Wire Type
Simple wire or Lay wire
Cable
dimensions
(cross
section)
Simple wire
:0.14 to 1.5mm
2
Lay wire
:0.14 to 1.0mm
2
Cable size
:26 to 16AWG
Strip
Length
Recommended
Driver
SZF 0-0,4X2,5
(1204504)
Recommended
Pin Terminals
A 0,34-7
(3009202)
A 0,5-6
(3200218)
Recommended
Crimping Tool
CRIMPFOX ZA 3
(1201882)
5mm
[0.2in.]
100Ω 1/2W
TRM
RDA
RDB
Terminal Block B
RS-422 Terminal Block Conversion Adapter
Please be aware that Digital Electronics Corpora-
tion shall not be held liable by the user for any
damages, losses, or third party claims arising
from the uses of this product.
