(3)

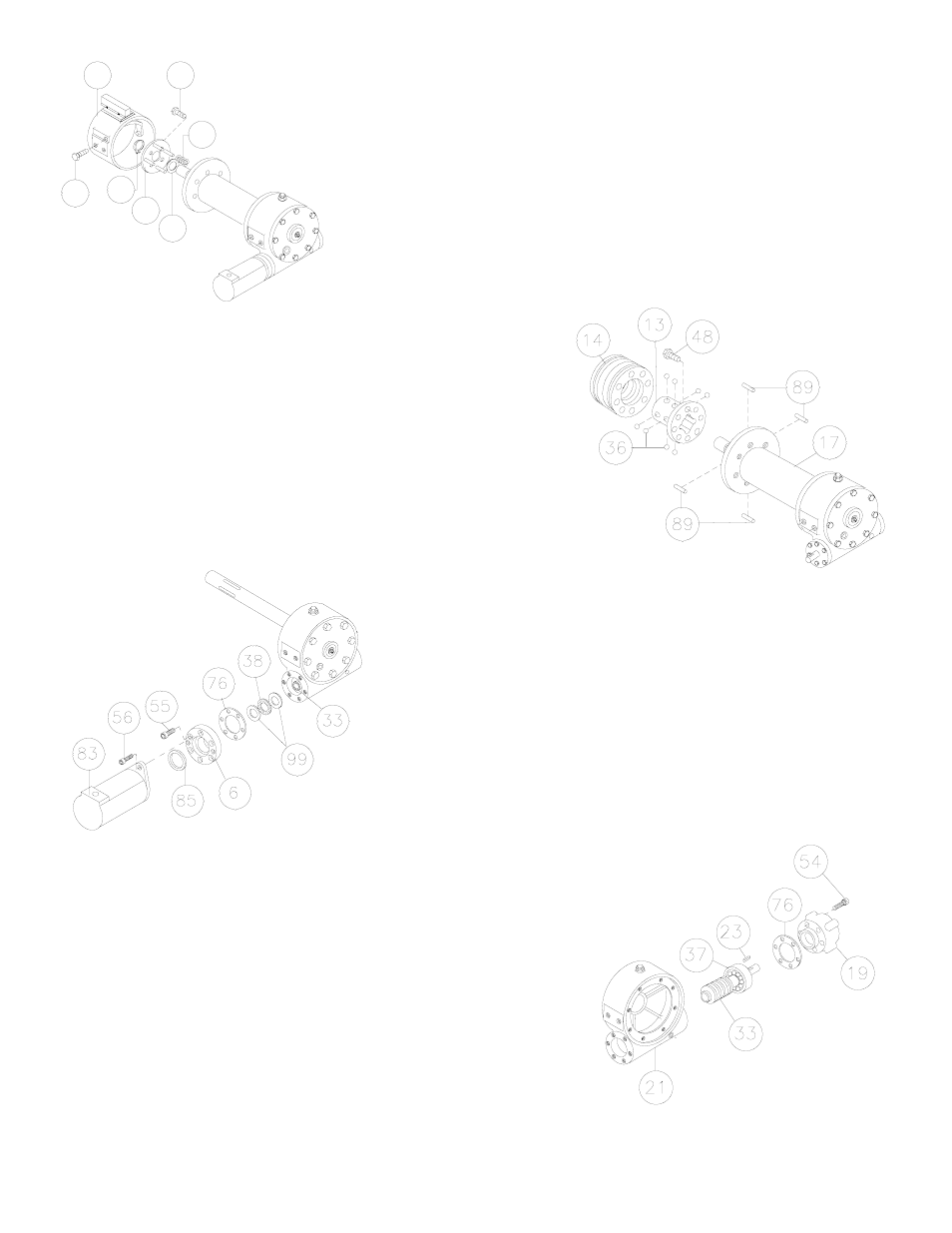

Remove two capscrews (item #50) from clutch housing (item #21) and
unlatch shifter assembly.
Remove clutch housing from end of drum shaft. Press in on retainer plate
(item #92), to relieve the spring tension and remove the retainer ring (item
#94).
Remove four capscrews (item #42), retainer plate (item #67), springs (item
#96) and spacer (item #31).
(4)
Slide the locking ring (item #14) from the clutch. NOTE: The locking
ring cannot be removed unless the clutch is engaged, with dowel pins
(item #89) seated in the shaft keyways.
Rotate the drum so the eight balls (item #36) and four dowel pins
(item #89) can be removed.
If necessary, the clutch (item #13) may be disassembled from the
drum by removing eight capscrews (item #48). Slide drum (item
#17) from drum shaft.
(5)
Remove motor (item #83) from adapter (item #6) by removing two
capscrews (item #56). Remove adapter from gear housing by remov-
ing six (item #55) capscrews. Replace o-ring (item #85) and gasket
(item #76). Remove thrust bearing (item #38) and thrust washers
(item #99).
(6)
Refer to page 5, “Worm Brake Maintenance”. Remove brake housing
(item #19) from gear housing by unscrewing six capscrews (item
#54). Remove key (item #23) from worm. Remove worm (item
#33) and bearing (item #37) from gear housing. Use a soft ham-
mer to gently tap input end of worm and drive worm and bearing
from gear housing. Once worm has been removed from housing,
bearing can be pressed from end of worm.
Check for signs of wear or damage to worm (item #33) and bear-
ings (item #37). Replace if necessary.
