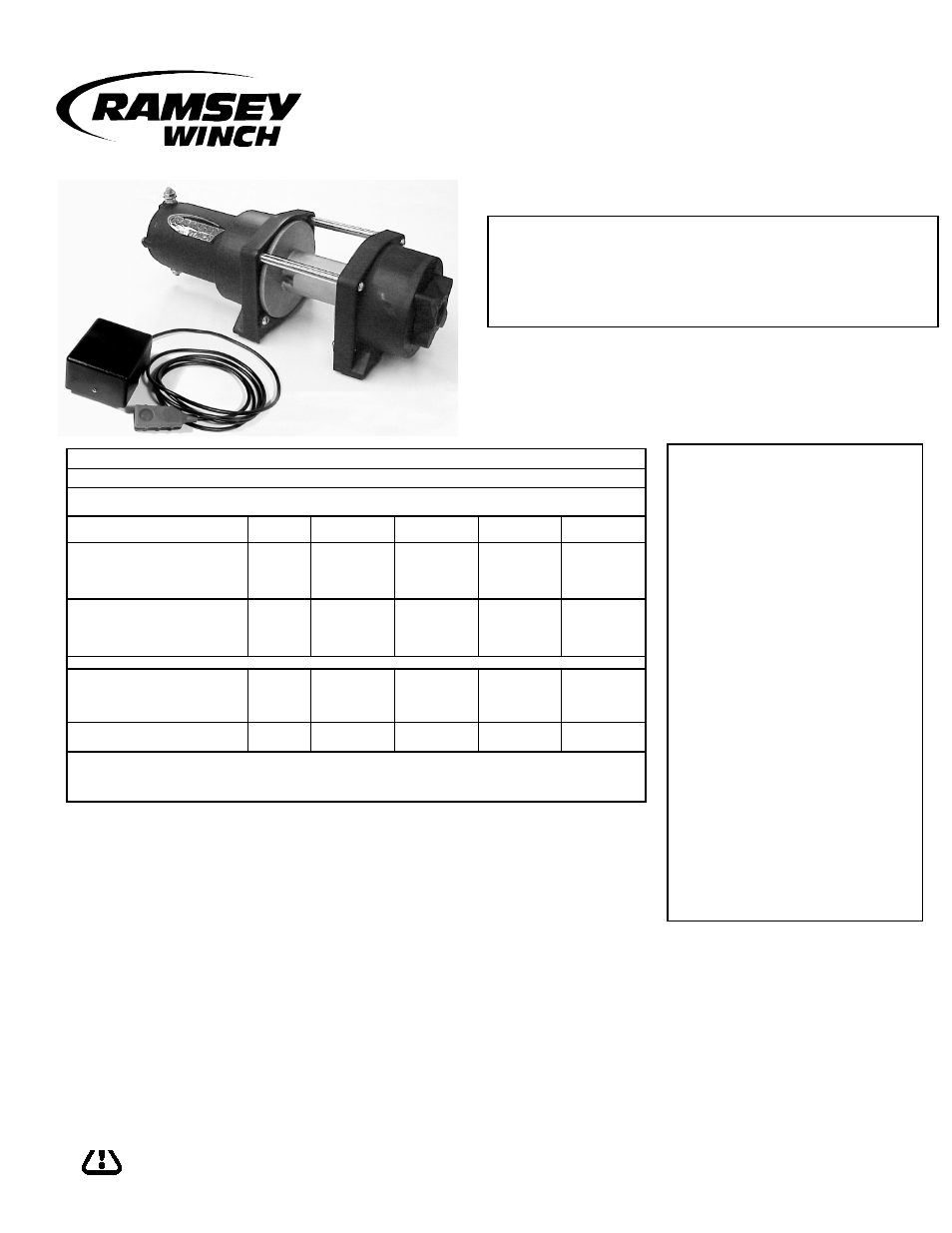

OWNER'S MANUAL
Electric Winch Model ATV 8
with Push Button Remote Control Switch
CAUTION: Read and understand this manual before installation and operation of winch. See Safety Precautions.
Intended Purpose: Self recovery of vehicles and pulling of loads.
WARNINGS:
THE USER SHALL ENSURE THAT THE
OPERATING PERSONNEL ARE GIVEN
THE NECESSARY TRAINING.
THE OPERATOR SHALL ALWAYS WORK
IN COMPLIANCE WITH THE OPERAT-
ING INSTRUCTIONS.
CLUTCH MUST BE FULLY ENGAGED
BEFORE STARTING THE WINCH.
DO NOT DISENGAGE CLUTCH UNDER
LOAD.
STAY OUT FROM UNDER AND AWAY
FROM RAISED LOADS.
STAND CLEAR OF ROPE WHILE
PULLING. DO NOT TRY TO GUIDE
ROPE.
DO NOT USE WINCH TO LIFT, SUP-
PORT, OR OTHERWISE TRANSPORT
PERSONNEL.
A MINIMUM OF 2 WRAPS OF ROPE
AROUND THE DRUM BARREL IS NEC-
ESSARY TO HOLD THE LOAD.
AVOID CONDITIONS WHERE LOAD
SHIFTS OR JERKS OCCUR. EXCESSIVE
“INCHING” SHALL BE AVOIDED.
English (Original Instructions) . . . . . . . . . . . . . . . 1
Français (Traduction des instructions originales) . . 10
Deutsch (Übersetzung der Originalanleitung) . . . . . 18
Español (Traducción de las instrucciones originales) 28
OM-914220-1012-B
First Layer Line Pull 8kN (1800 lb)
Noise Level 81 db
Ambient Temperature Range -28 to 60 C (-20F to 140F)
LAYER OF ROPE 1 2 3 4
Rated Line Pull Per Layer
kN 8 6,6 5,3 4,8
lb 1,800 1,400 1,200 1,100
Cumulative Rope Capacity
Per Layer
m 1,5 4,5 6 10,6
ft 5 15 20 37
Line Pull First Layer
kN No 2,6 5,3
6,6
lb Load 600 1,200 1800
Amp Draw 12V 31 72 101
135
* These specifications are based on recommended 5 mm (.196") 1960 grade wire rope
RAMSEY WINCH COMPANY
Post Office Box 581510 Tulsa, Oklahoma 74158-1510 USA
Phone: (918) 438-2760 Fax: (918) 438-6688
Visit us at http://ww.ramsey.com
Ramsey Authorized Representative in the Community:
(Please contact for regulatory inquiries only.)
Alura Group BV
P.O. Box 18626
2502 EP The Hague
The Netherlands
Tel: (31) (0) 70 362-4896
Fax: (31) (0) 70 346-7299
