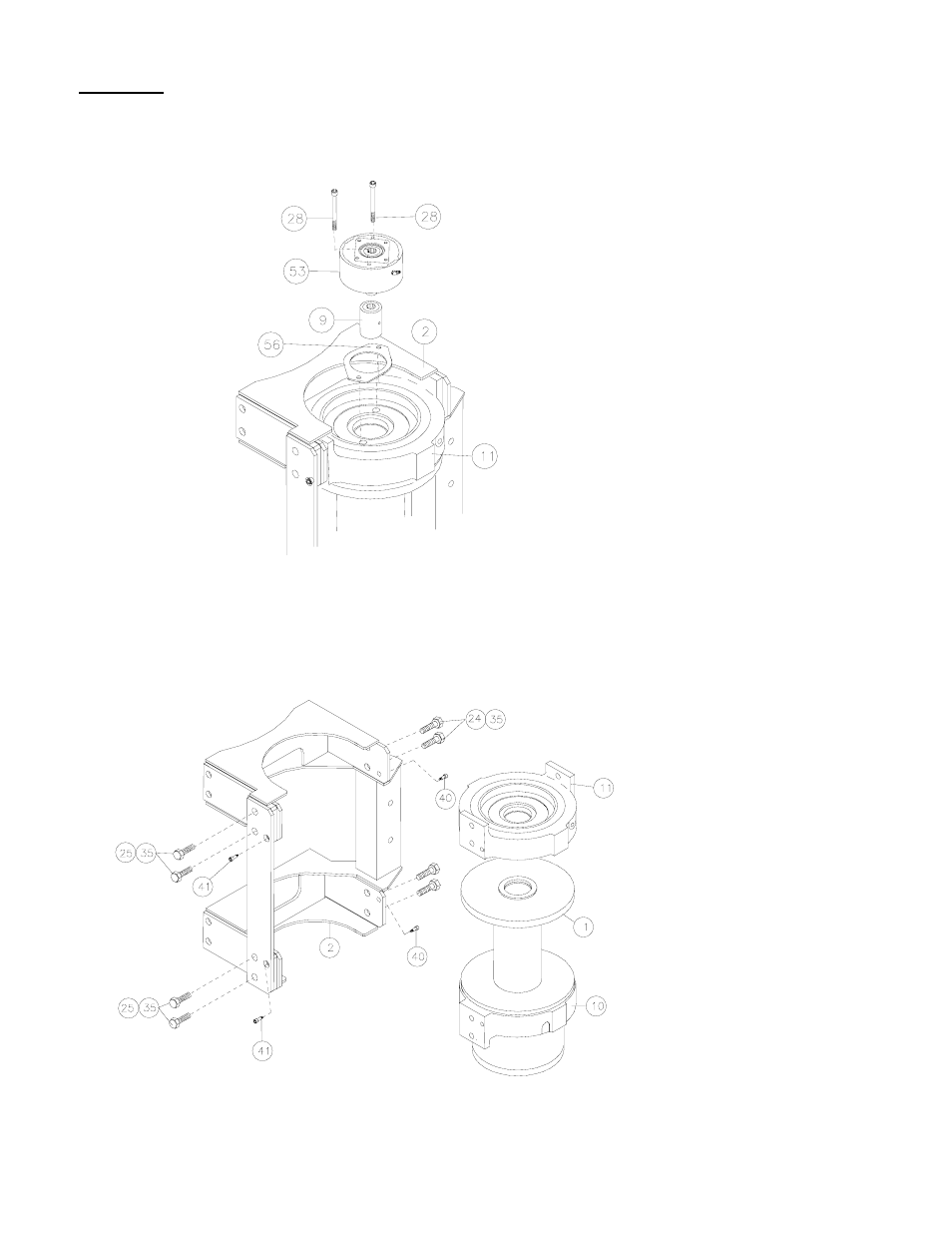

4. Remove brake assembly screws (item #28) from brake (item #53) and end bearing (item #11).
CAUTION: Brake is spring loaded by clutch spring and must be restrained against end bearing as
mounting screws (item #28) are removed. Remove coupling (item #9) and gasket (item #56)
from end bearing. Take note of mounting configuration for proper mounting of parts during
re-assembly.
5. Remove winch from upright mounting frame (item #2) by removing capscrews (item #24 & #25),
lockwashers (item #35) and shoulder bolts (item #40 & #41). Pull motor end bearing (item #11)
from drum assembly (item #1).
7
