13.

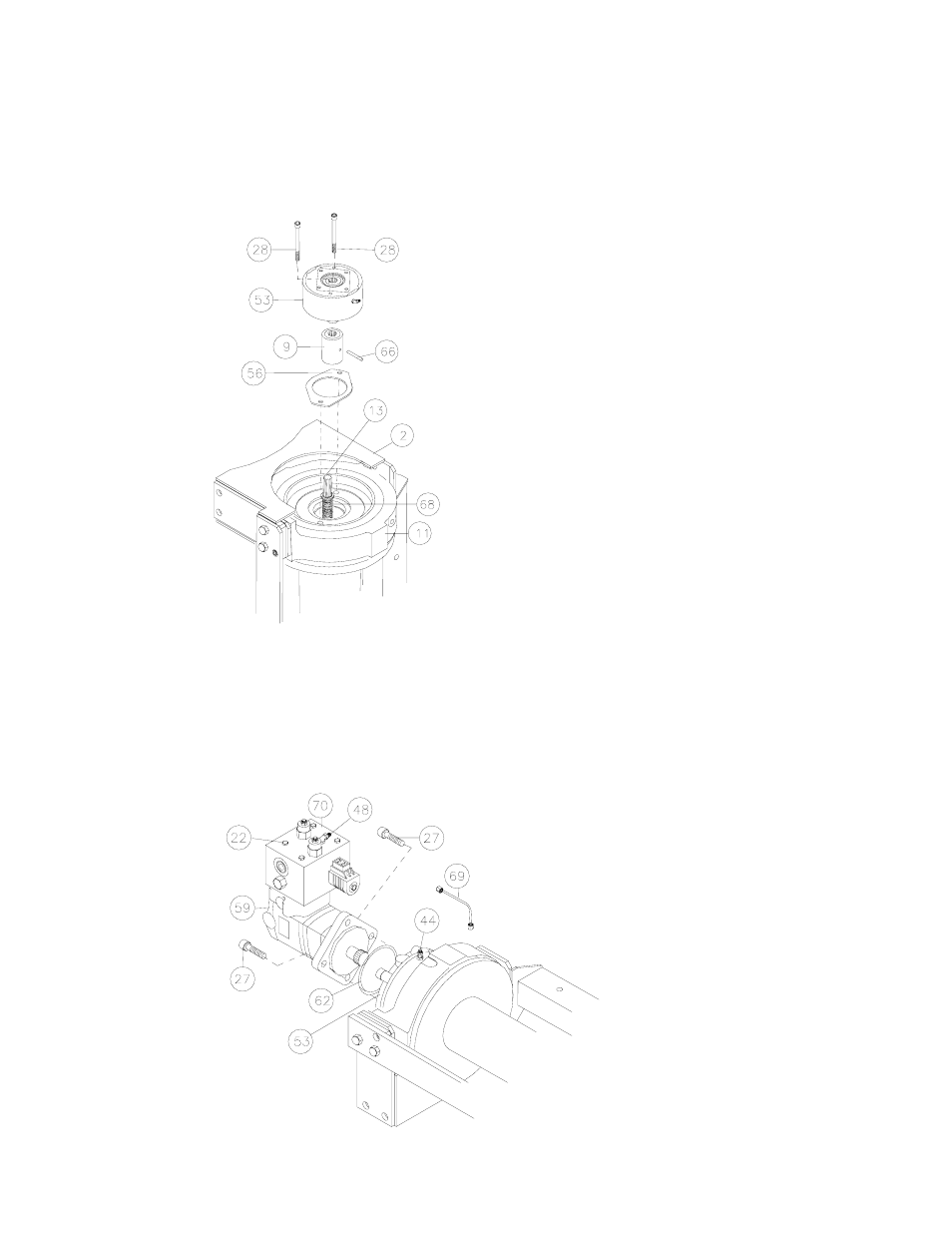

With pin (item #66) installed in coupling, align splines of coupling (item #9) with splines of input shaft below. Slide

coupling over end of shaft (item #13). Place gasket (Item #56) into position on motor mounting surface of end
bearing (item #9). Insert brake shaft into coupling. Use (2) screws (item #28) to attach brake assembly to motor end
bearing. Alternately tighten one, then the other of the capscrews (item #28) in a back and forth manner, thus
compressing spring (item #68) and pulling the brake assembly down against end bearing (item #11). Torque
capscrews to 85 ft lbs each.

14.

Attach control valve (item #70) with (4) o-rings (supplied with valve) to motor (item #59) using (4) capscrews (item

#22).

Attach motor (item #59) with o-ring (item #62) to brake (item #53). Use (4) capscrews (item #27) and torque to 74

ft. lbs. each. Securely connect tube (item #69) to fitting (item #44) on brake (item #53) and to elbow fitting (item
#48) .
