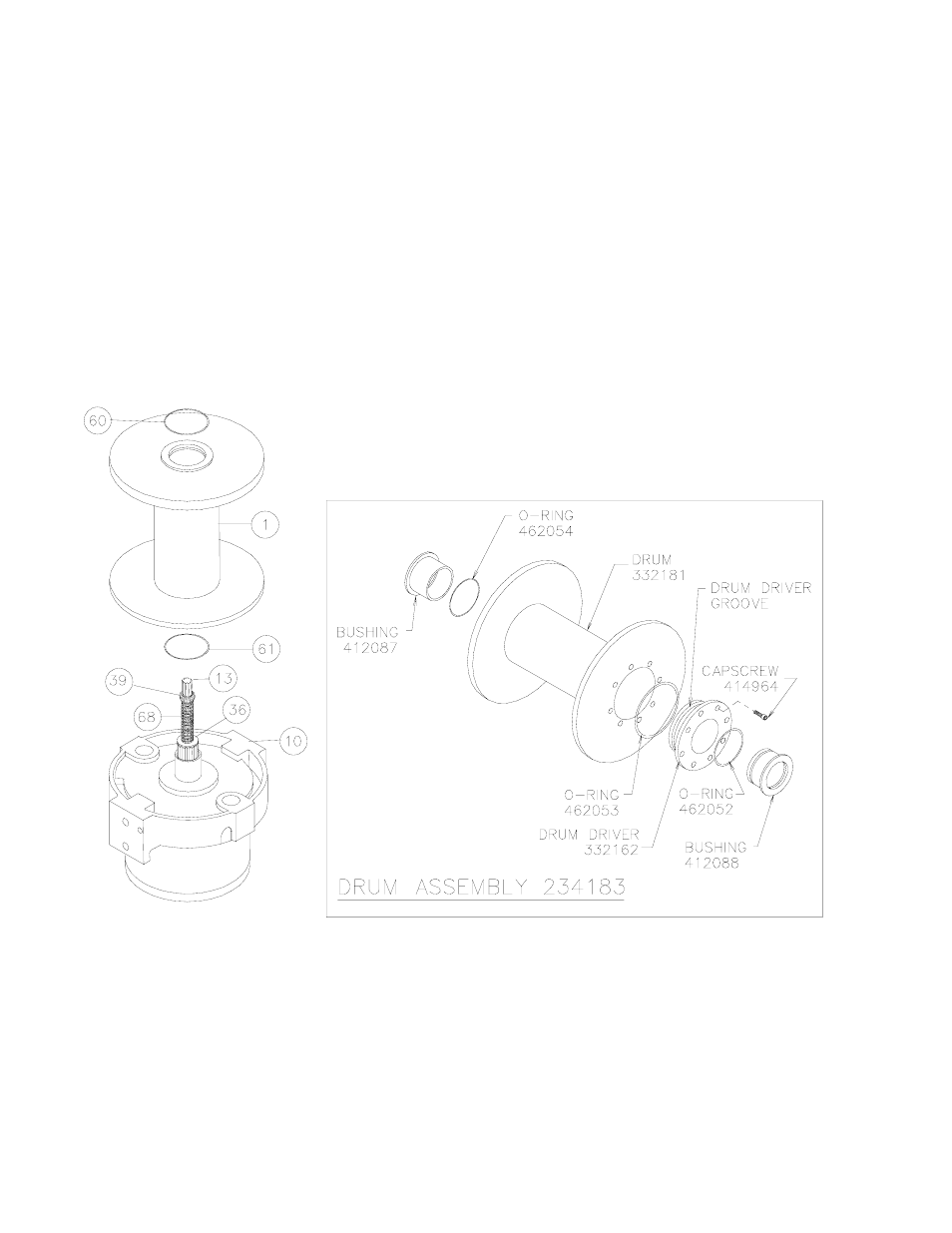

6. Pull drum assembly (item #1) upward from end bearing (item #10). Remove quad-rings (item #60
& #61) from grooves in drum bushings. Remove input shaft (item #13), clutch spring (item #68)
and washers (item #39 & #36) from end bearing (item #10).
Examine drum assembly (item #1) for signs of wear. If splines inside of drum driver (332162) are
damaged, drum driver must be replaced. Remove drum driver by unscrewing (8) capscrews
(414578). Place well oiled o-ring (462053) into drum driver groove and attach driver to drum
(332181) using (8) capscrews (414964). Torque capscrews to 114 ft. lbs. each, in criss-cross
pattern.
Press old bushings from drum and drum driver. Remove o-rings (462054 & 462052) from
grooves in drum and drum driver bushing (412088). Place well oiled o-rings (462054 & 462052)
into grooves in drum and outer diameter of drum driver bushing (412088). Press new bushing
(412087) into end of drum opposite drum driver and press bushing (412088) into drum driver until
flange of bushings are flush against drum and driver.
