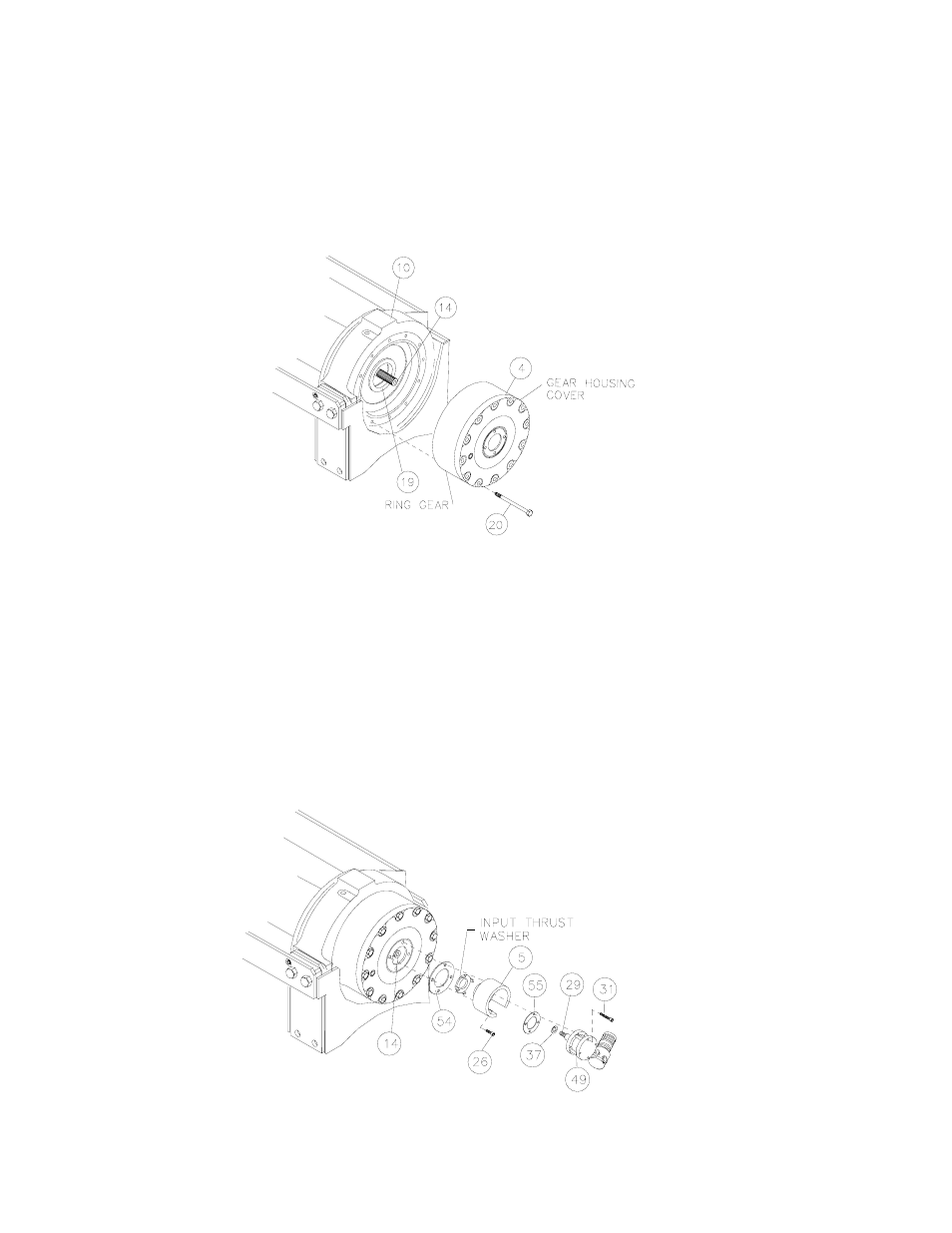

11. Apply RTV sealing compound to ring gear mounting surface of end bearing (item #10). Place
ring gear onto end bearing, aligning holes in ring gear with holes and gear housing end bearing.
Use (2) capscrews to temporarily secure ring gear to end bearing.
Place (2) gear carrier assemblies into ring gear meshing carrier gears with ring gear. Remove
(2) temporary capscrews, making sure that ring gear and carrier assemblies are securely against
end bearing (item #10). Apply RTV sealing compound to cover mounting surface of ring gear
(item #4) and attach cover to ring gear. Use (12) capscrews (item #20) to secure gear box to
gear housing end bearing. Torque capscrews to 39 ft. lbs. each, in criss-cross pattern.
12. Slide input sun gear over shifter shaft (item #14) and mesh with teeth of input carrier. Apply
grease to input thrust washer and place into slots of air cylinder adapter (item #5). Place gasket
(item #54) into position on gear box cover with sealer and attach adapter to cover using (4)
capscrews (item #26). Apply Loctite PST thread sealer to threads of capscrews. Torque
capscrews to 13 ft. lbs. each, in criss-cross pattern.
Pull rod from air cylinder as far as possible. Slide washer (item #37) over setscrew (item #29)
and against nut attached to air cylinder rod. Place setscrew into hole of shifter shaft (item #14).
Attach new air cylinder (item #49) and gasket (item #55) with sealer, to adapter using (4)
capscrews (item #31). Apply Loctite PST thread sealer to threads of capscrews. Torque
capscrews to 5 ft. lbs. each, in criss-cross pattern.
