278027 - 12V

278028 - 24V

Item

Oty.

No.

Req'd

Part No.

Description

1

1

280009

Cable-Bolt Ass'y.

2

3

289077

Wire Ass'y

3

1

289091

Wire Ass'y

4

2

364001

Strap

5

2

364002

Strap

6

1

408035

Solenoid Bracket

7

2

416216

Screw

8

2

416227

Screw

9

4

41Em4

Nut

10

2

410022

Nut 1/4 - 18NC Hx. Reg

11

2

418140

Flat Washer #10

12

1

418163

Lockwasher 5/16 Med Sect

13

1

418164

Lockwasher 5/16 Internal

14

1

418165

Lockwasher 5/16 External

15

1

43)013

Female Connector

16

2

440071

Terminal - Tab

17

2

440110

Solenoid- 12V

18

1

472071

Cover

19

1

482029

Cover-Connector

20

4

530106

Cover-Terminal

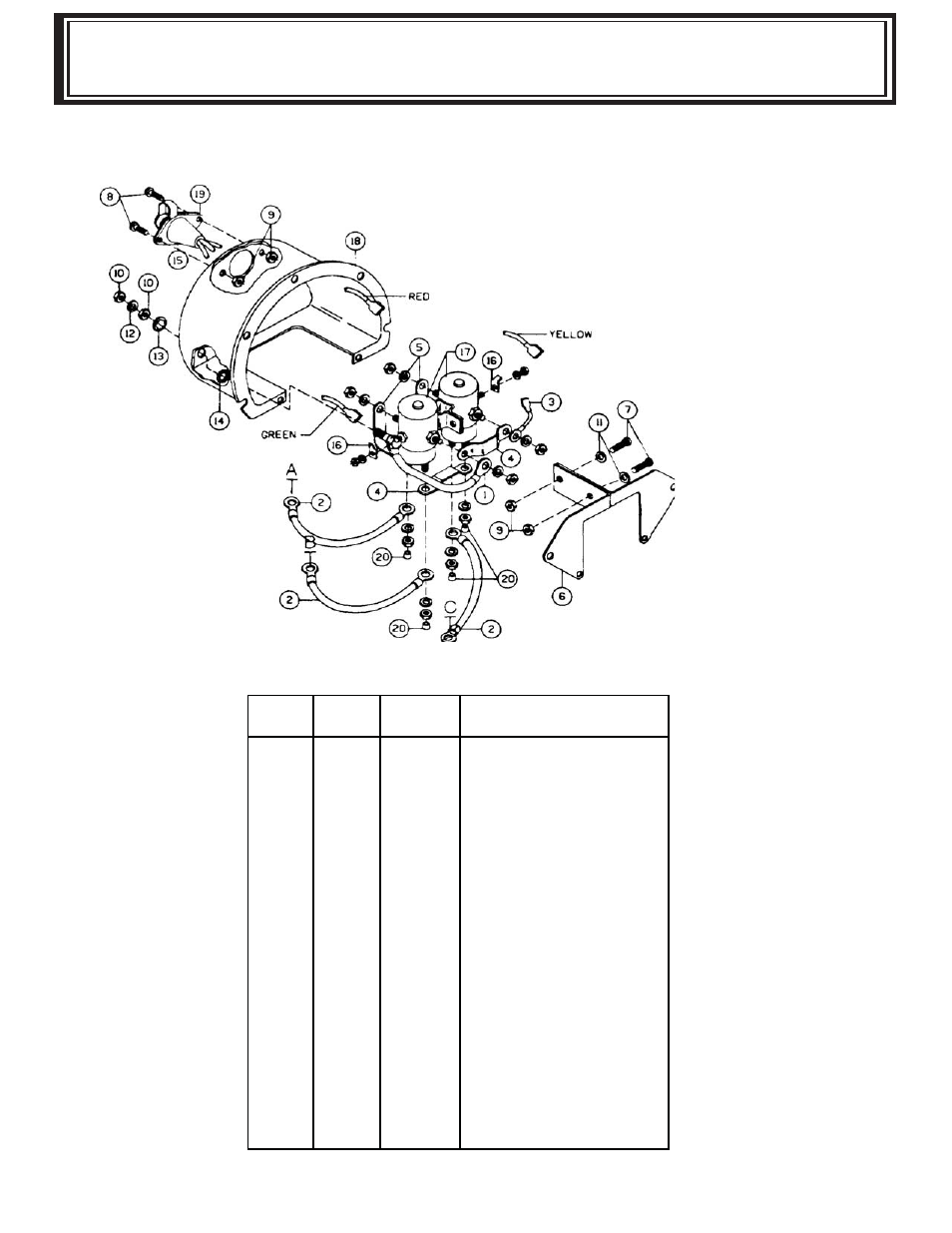

Solenoid Assembly Parts
