Paasche Airbrush A-AU-PL User Manual
Page 3

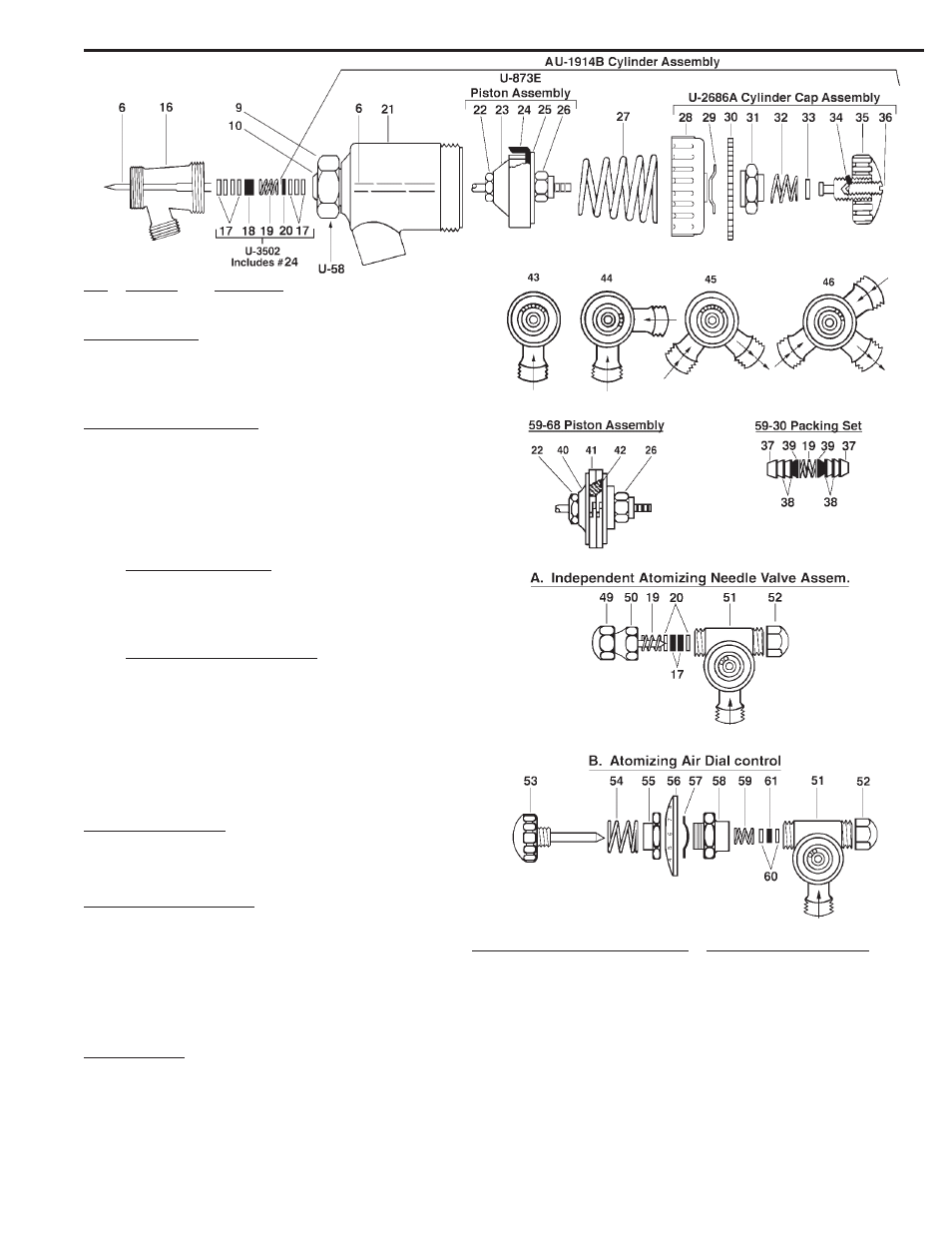

Paasche A-AU Automatic Spray Gun
Page 3
No.
Part No.
Description
6.
A-AU-3-11/16 Needle
16.
AU-7B
Fluid Body
U-3502 Packing Set
17.
U-28-12
Packing Washers (12)
18.
U-29
Packing Gland (1)
19.
DU-30
Stainless St. Spring (1)
20.
U-203
Gland (1)‡
24.
U-322
Cup Leather (1)
AU-1914B Cylinder Assembly
(Note: lncludes U-873E & U-2686A)
6.
A-AU-3-11/16 Needle
17.
U-28-12
Packing Washers (3)‡
20.
U-203
Gland
21.
U-1907B
Shell Assembly
9.
U-3633
Large “O” Ring
10.
U-3632
Small “O” Ring
27.
U-2966
Piston Spring
U-2687
Light Spring Action (Special Only)
U-873E Piston Assembly
22.
U-2965
Needle Chuck
23.
U-2964
Inner Bushing
24.
U-322
Cup Leather ‡
25.
U-2465A
Outer Disc
26.
U-2544
Locknut
U-2686A Cylinder Cap Assembly
28.
U-2707A
Cylinder Cap
29.
U-941
Spring Washer
30.
U-951B
Fluid Dial
31.
U-2675A
Friction Nut
32.
U-1098
Spring
33.
U-2584P
Stop Washer
34.
59-57
Lock Stud
35.
U-3178
Fluid Adjusting Knob †
36.
59-56
Lock Screw
†
Do Not Use as a Shutoff by turning all the way Down, It will split the Tip.
PTFE Packings are available for any model at an additional charge.
59-30 PTFE Packing Set
19.
DU-30
St. St. Spring
37.
U-3353
Packing (2)
38.
59-24
PTFE Packing (4)
39.
59-25B
Expander Gland (2)
59-68 PTFE Piston Assembly
22.
U-2965
Needle Chuck
26.
U-2544
Locknut
40.
59-63
Aluminum Piston
41.
59-64
PTFE Piston Ring (2)
42.
59-65
Expansion Spring* (1)
• Add letter “x” after the Prefix A for PTFE Needle Packings.
• Example: A-AUF-2 to Ax-AUF-2
• Add Letters “xx” after prefix A for PTFE Piston and Needle Packings.
• Example: A-AUF-2 to Axx-AUF-2
AU- Fluid Bodies
43.
AU-7B
Standard
AUS-7B
Standard Stainless Steel
44.
AUA-7B
Independent Atomizing
AUSA-7B
Independent Atomizing Stainless Steel
45.
AUG-7B
Circulating Fluid
AUSG-7B
Circulating Fluid Stainless Steel
46.
AUAG-7B
Circulating Fluid Indept. Atomizing
51.
AU-7DA
Indept. Atomizing Needle Valve Body
AUS-7DA
Indept. Atom. Needle Valve Body St. St.
A. Independent Atomizing Needle Valve
(Available in Stainless Steel)
49. U-166A
Needle Valve
50. U-167
Spring Cap
19. DU-30
St. St Spring ‡
20. U-203
Gland (2)‡
17. U-28-12
Pkg. Washers (2)‡
51. AU-7DA
Fluid Body
AUS-7DA St. St. Fluid Body
52.
U-551
Cap Nut
‡ Item included in U-3502 Packing Set
U-28-12 and DU-28-12 Packing
Washers sold per Dozen (12) Only.
B. Atomizing Air Dial Control
(Available in Stainless Steel)
53.
U-959
Air Adj. Needle
54.
U-1098
St. St. Spring
55.
U-942
Friction Nut
56.
PA-14
Dial (for AUG-7DA
& AUSG-7DA use U-951G Dial)
57.
U-941
Spring Washer
58.
U-957
Bushing
59.
DU-30
St. St. Spring ‡
60.
U-27
Packing Gland (2)
61.
DU-28-12
Packing Washer (1)
51.
AU-7DA
Fluid Body
AUS-7DA
St. St. Fluid Body
52.
U-551
Cap Nut
