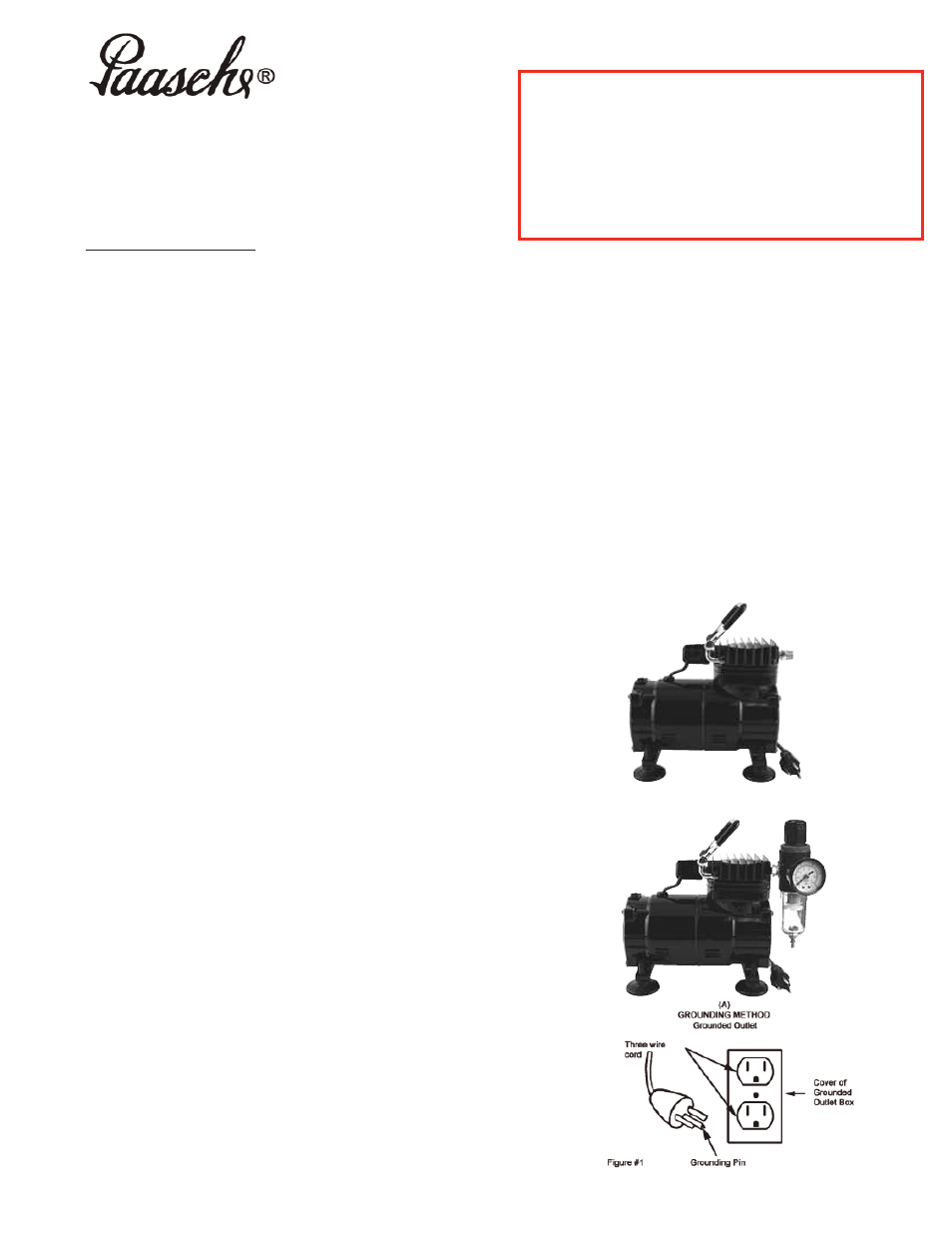

INSTRUCTION AND PARTS LIST DA300- 8/31/2011

Supersedes Instruction & Parts List DA300-4/16/2008

WARNING: When a flammable liquid is sprayed, there may be

danger of fire or explosion especially in a closed room: keep

compressor at least 20 feet away from areas where hazardous

concentrations of flammable vapors are likely to occur.

Disconnect power before servicing.

ATTENTION: Lorsqu'un liquide inflammable est pulverise, il

peut y avoir danger d'incendie ou d'explosion, specialement

dans une piece fermee; garder le compresseur a au moins 20

pieds des endroits ou des concentrations dangereuses de

vapeurs inflammables sont susceptibles de se produire.

Debrancher avant toute maintenance.

Manufactured in CHINA for Paasche

Paasche Airbrush Company
4311 North Normandy Avenue
Chicago, IL 60634-1395
Phone: 773-867-9191 • Fax: 773-867-9198
Website: paascheairbrush.com
E-Mail: [email protected]

DA300 & DA300R

Air Compressor

1/8 HP (150W), 120VAC, 1 Ph, 60 Hz, 1.3 A, .3 CFM @ 20 PSI,
Noise 53dB, 1720 rpm, Shipping Weight: 4.2kgs (9.2 lbs.).

OPERATION INSTRUCTIONS
Check carefully for damage that might have occurred in transit.
Electrical Requirements:
This unit must only be used at the listed voltage. Low voltage will cause
the motor to overheat. Low voltage is recognized when the following
conditions exist:

1. Motor does not develop full power or speed.
2. A fuse blow out occurs at starting or when load is applied.
3. Lights dim when motor starts and remains dim.

Avoid excessive voltage drop by keeping extension cords as short as
possible. If it is necessary to use an extension cord, do not use less than16
gauge for 25 feet, 14 gauge for 50 feet, or 12 gauge for 100 feet or more.
THERMAL PROTECTOR
The motor of this compressor has a thermal overload protector. If the
motor should overheat, the overload protector will shut off the motor. If this
should occur, unplug the compressor and allow the motor to cool (approx.
5 minutes), remove excess load and restart compressor. If the
compressor fails to start, check for blown fuses. The compressor may
need to cool further before attempting to restart. If the overload protector
shut off the motor frequently you may have a low voltage situation. Low
voltage can also be suspected when:

1. The motor does not get up to full power or speed.
2. Fuses or circuit breakers activate when starting compressor.
3. Lights dim or remain dim when compressor is started.
4. Other motor operated appliances fail to operate properly. Too many

motor operated appliances on same circuit.

SEALING OF AIR HOSE
When attaching the female pipe thread fitting from your air hose to the
compressor, it may be necessary to use a quality pipe thread sealant or
PTFE pipe thread tape on the threaded air outlet of the compressor.
Failure to do so may cause an air leak and your compressor will not shut
off as it should. NOTE: This unit does not require any lubricants or oil.
Applying oil to any part could result in damage to the compressor. All
bearings, including those in the motor, are grease packed. In case of
motor failure, return to authorized motor service station in your area.
AUTOMATIC SHUT-OFF FEATURE
This compressor has a built-in pressure switch that automatically shuts-off the
compressor when the airbrush is not in use. It has been preset at the factory to
give maximum pressure when the airbrush is attached to the compressor. The
compressor will automatically stop when the airbrush is not in use. It will
immediately start again as soon as the air is allowed to flow through the airbrush.
TROUBLE SHOOTING
If, while spraying, the compressor starts and stops during a continuous
spraying stroke, it means your airbrush or spray gun is not using enough
air to prevent the back pressure, being measured by the pressure switch,
from reaching the cut-off point. Starting and stopping of the compressor
when the airbrush is not in use is caused by an air leak in the hose
connection. Usually at the point where the air hose meets the compressor
(see Sealing of Air Hose). A short running of the compressor for one or
two seconds every five minutes is normal.
GROUNDING INSTRUCTIONS
This product must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for the
electric current. This product is equipped with a cord having a grounding wire
with a grounding plug. The plug must be plugged into an outlet that is properly
installed and grounded in accordance with all local codes and ordinances.

DANGER– Improper installation of the grounding plug can result in a risk
of electric shock.
If repair or replacement of the cord or plug is necessary, do not connect
the grounding wire to either flat blade terminal. The wire with insulation,
having an outer surface that is green with or without yellow stripes, is the
grounding wire. Check with a qualified electrician or serviceman if the
grounding instructions are not completely understood or if in doubt as to
whether the product is properly connected.
Do not modify the plug provided; if it will not fit the outlet, have the proper
outlet installed by a qualified electrician.
DANGER– Do not use temporary adapter plugs with this compressor.
EXTENSION CORDS – If it is necessary to use an extension cord, use a
3-wire extension cord that has a 3-blade grounding plug and a 3-slot
receptacle that will accept the plug on the product. Make certain your
extension cord is in good condition. Make certain your extension cord wire
is not less than 16 gauge for 25 feet, 14 gauge for 50 feet and 12 gauge
for 100 feet. An undersized cord will cause a drop in line voltage resulting
in loss of power and overheating. If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.

DA300 120Volts, 60Hz.

DA300R 120Volts, 60Hz. with R-75
