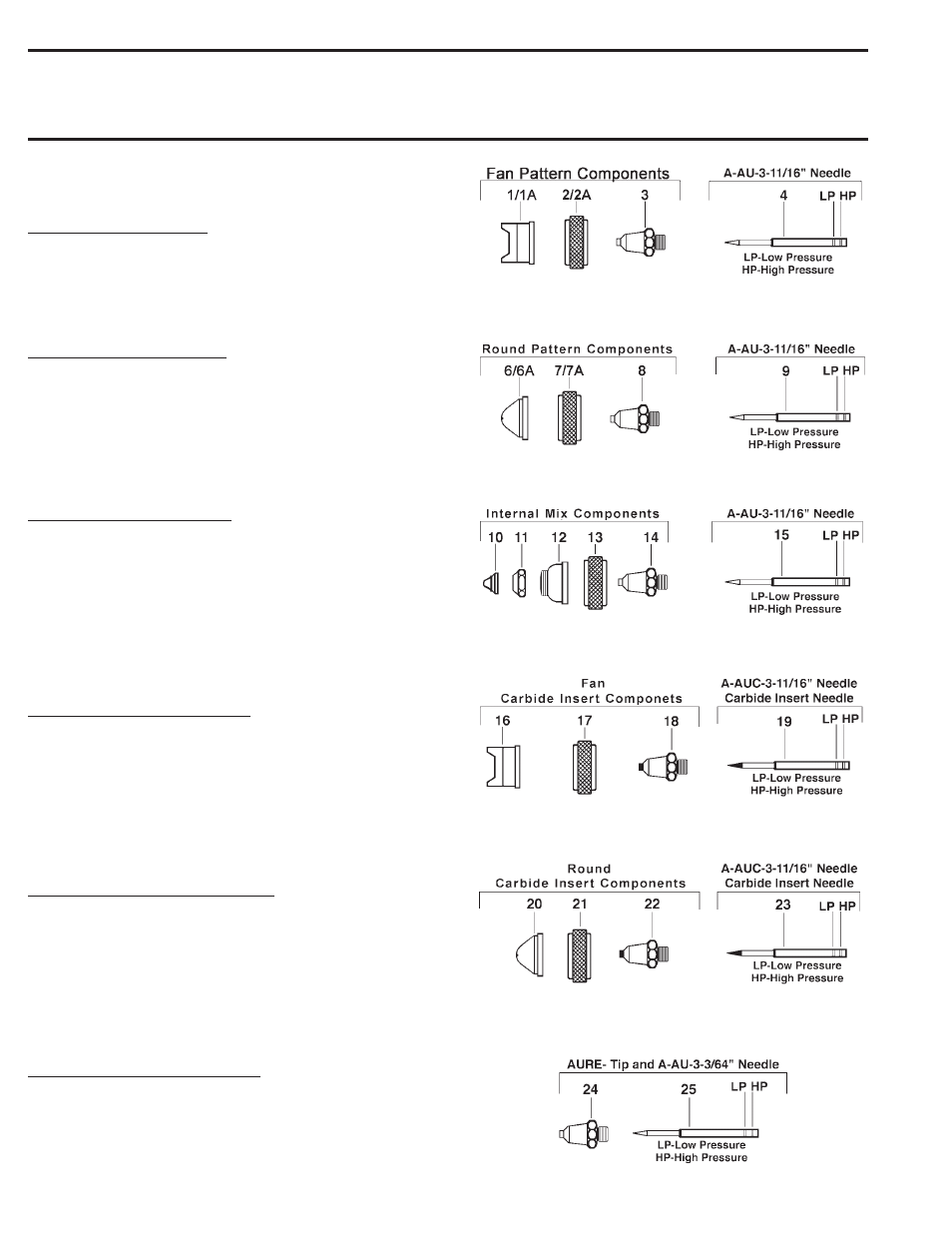

Page 2 SPRAY HEAD COMPONENTS
• Fan Sizes: 000/ 0, 1, 2 or 3
• Application: General Light Painting, Touch-up and Decorating
• Fluid Viscosity: Light
• Atomization: External - Fan, Internal - Round
ExTERNAL- FAN PATTERN
1. ANFA- Fan Aircap (Brass) (Select Size above)
1A. ANFAS- Stainless Fan Aircap (Select Size)
2. AU-12 Aircap Nut
2A. AUS-12 Stainless Aircap Nut (Optional)
3. AU- Stainless Tip (Select Size)
4. A-AU-3-11/16 Stainless Needle
INTERNAL- ROUND PATTERN
6. AR-15-000/0, 1, 2, or 3 Round Aircap (Brass) (Select Size above)
6A. ASR-15-000/0, 1, or 3 Stainless Round Aircap (Select Size)
7. AU-12 Aircap Nut
7A. AUS-12 Stainless Aircap Nut (Optional)
8. AU- Stainless Tip (Select Size)
9. A-AU-3-11/16 Stainless Needle
INTERNAL MIx- FAN PATTERN
• Application: Broad Coverage
• Fluid Viscosity: Light
• Application: Fluid pressure must be approximately 5 to 10 P.S.I.
lower than air atomizing pressure.
10. ASC-1 Slotted Cap
11. AU-6 Cap Nut
12. ARA-1 Aircap Body
13. AU-12 Aircap Nut
14. AU-1 Stainless Tip
15. A-AU-3-11/16 Stainless Needle
CARBIDE INSERT- FAN PATTERN
• Size: 4
• Application: Gritty and Abrasive Material
• Fluid Viscosity: Light Abrasives
16. ANFAC-4 Fan Aircap (for Carbide Tip)
17. AU-12 Air Cap Nut
18. AUC-4 Carbide Insert Fluid Tip
19. A-AUC-3-11/16 Carbide Insert Needle
CARBIDE INSERT- ROUND PATTERN
• Size: 4
• Application: Gritty and Abrasive Material
• Fluid Viscosity: Light Abrasives
20. ACR-15-4 Aircap
21. AU-12 Aircap Nut
22. AUC-4 Carbide Insert Stainless Fluid Tip
23. A-AUC-3-11/16 Carbide Insert Stainless Needle
AURE TIP- SPECIAL APPLICATION
• Application: May be used in conjunction with Fan or Round pattern
Heads. For application of fast settling materials, Needle Seat is in the rear,
which prevents material from settling in the Tip cavity.
24. AURE-3 Stainless Tip
25. A-AU-3-3/64 Stainless Needle
Spray Heads for the A-AU- Automatic Spray Guns are available in several different styles, some of which are available with
Stainless Steel components. The C.F.M. requirements range from .25 to 3 C.F.M. @ 30 lbs. air pressure. NOTE: When either
fluid Tip or fluid Needle is worn and requires replacement, it is recommended that both items be changed for best results. All
Tips and Needles are made using 303 Stainless Steel. Carbide Tips and Needles are available for use with abrasive materials.
