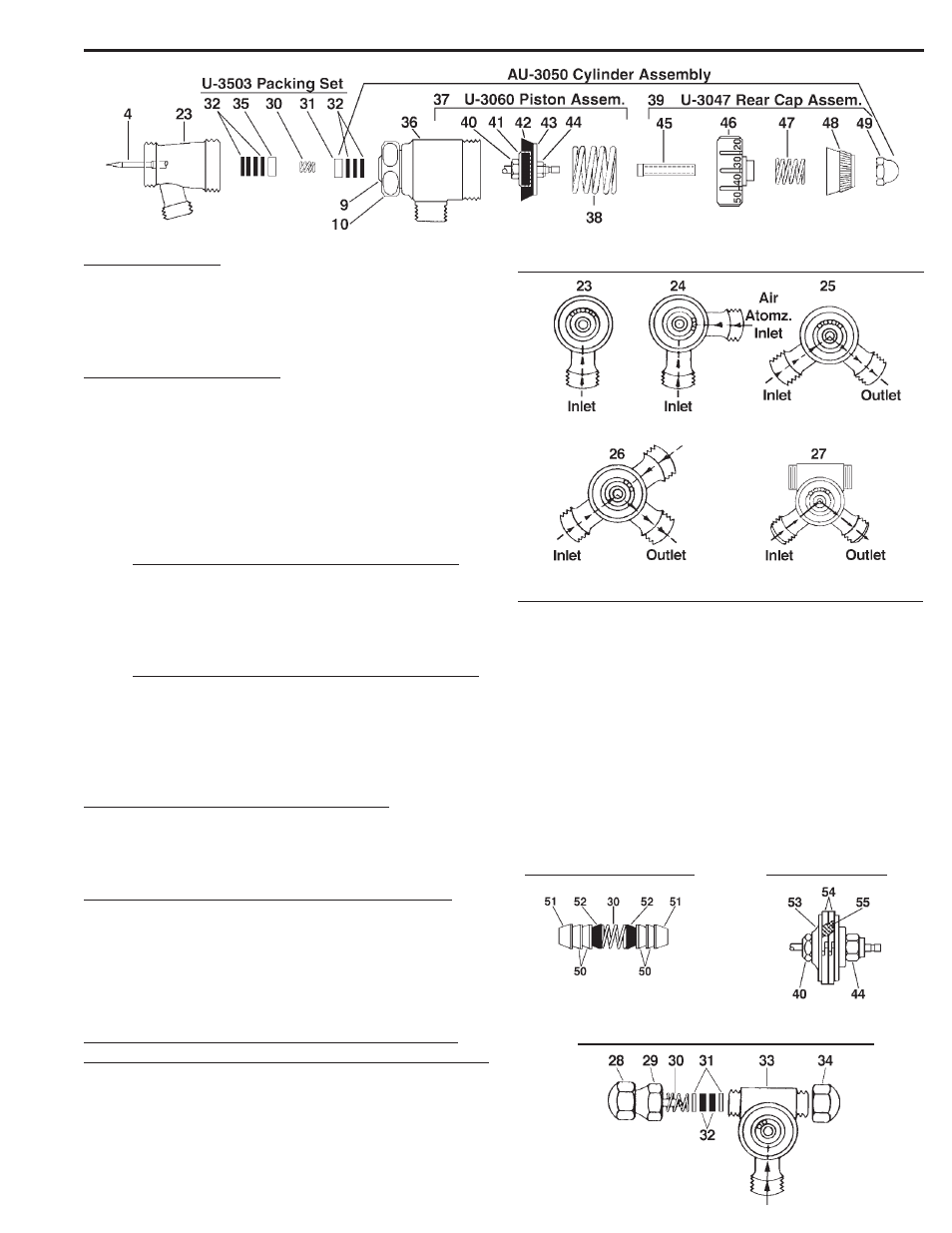

Page 3 Paasche A-JU Automatic Spray Gun Replacement Parts
U-3503 Packing Set
32. U-28-12 Packing Washers (1 Dozen/12)
35. U-29 Gland
30. DU-30 St. St. Spring
31. U-203 Gland
41. U-3058 Piston Leather
AU-3050 Cylinder Assembly
36. U-3045 Cylinder Shell
9. U-3632 Small “O” Ring
10. U-3633 Large “O” Ring
37. U-3060 Piston Assembly
38. U-3049 St. St. Piston Spring
39. U-3047 Rear Cap Assembly
4. A-AU-2-29/32 St. St. Needle
31. U-203 Packing Gland
32. U-28-12 Packing Washers (1 Dozen/12) (3 Required)
37. U-3060 Piston Assembly (Included w/AU-3050)
40. U-3056 Needle Chuck
41. U-3057 Inner Bushing
42. U-3058 Piston Leather
43. U-3059 Disc
44. U-3061 Locknut
39. U-3047 Rear Cap Assembly (Included w/AU-3050)
45. U-1458 St. St. Needle Stop
46. U-3048 Cap
47. U-3352 St. St. Spring
48. U-1460 Adjusting Nut
49. U-1495 Locknut
59-30 Set Automatic PTFE Needle Packings
50. 59-24 1/8" PTFE Packings (4)
51. U-3353 Packing Follower (2)
52. 59-25B 1/8" Expanders (2)
30. DU-30 St. St. Spring
U-3209 PTFE Piston Assembly (Items 53 thru 55 Only)
53. U-3207 Aluminum Piston
54. U-3208 PTFE Piston Rings (2)
55. U-3206 St. St. Expander Spring
40. U-3056 Needle Chuck (Sold Separately)
44. U-3061 Locknut (Sold Separately)
A. Fluid Bodies
Independent Atomizing Needle Valve Body
59-30 PTFE
Needle Packings
U-3209 PTFE
Piston Assembly
Independent Atomizing Needle Valve Body Assembly
• (Also in Stainless Steel)
28. U-166A Needle Valve
29. U-167 Nut
30. DU-30 St. St. Spring
31. U-203 Gland (2)
32. U-28-12 Packing Washers (1 Doz.) (2 Required)
33. AU-7DA Fluid Body
AUS-7DA St. St. Fluid Body
34. U-551 Cap Nut
AU- Fluid Bodies
23. AU-7B Standard
AUS-7B Standard Stainless Steel
24. AUA-7B Independent Atomizing
AUSA-7B Independent Atomizing Stainless Steel
25. AUG-7B Circulating Fluid
AUSG-7B Circulating Fluid Stainless Steel
26. AUAG-7B Circulating Fluid Separate Atomizing
27. AUG-7DA Circulating Fluid Body for Needle Valve
AUSG-7DA Circulating Fluid Body Stainless Steel
for Needle Valve
