• Sizes: 000,/0, 1, 2 or 3
• Application: Apply materials in small or confined areas.
• Fluid Viscosity: Thin to Medium
•Atomization: External
ExTERNAL - FAN PATTERN
1. ANFA- Fan Aircap (Select Size above)
1A. ANFAS- Stainless Fan Aircap (Select Size)
2. AU-12 Aircap Nut
2A. AUS-12 Stainless Aircap Nut (Optional)
3. AU- Stainless Tip (match aircap size)
4. A-AU-2-29/32 Stainless Needle
INTERNAL - ROUND PATTERN
5. AR-15- Round Aircap (Select Size above)
5A. ARS-15- Stainless Round Aircap (Select Size)
6. AU-12 Aircap Nut
6A. AUS-12 Stainless Aircap Nut (Optional)
7. AU- Stainless Tip (match aircap size)
8. A-AU-2-29/32 Stainless Needle
INTERNAL MIx- FAN PATTERN
• Size: 1 only
• Application: Broad Coverage
• Fluid Viscosity: Light
• Fluid Pressure: Fluid pressure must be 5 to 10 P.S.I. lower than
air atomizing pressure.
9. ASC-1 Slotted Cap
10. AU-6 Aircap Nut
11. ARA-1 Aircap
12. AU-12 Aircap Nut
13. AU-1 Stainless Tip
14. A-AU-2-29/32 Stainless Needle
CARBIDE INSERT- FAN PATTERN
• Size: 4 only
• Application: Gritty, Abrasive Material
• Fluid Viscosity: Light Abrasives
15. ANFAC-4
Fan Aircap (for Carbide Tip)
16. AU-12 Air Cap Nut
17. AUC-4 Carbide Insert Stainless Body Tip
18. A-AUC-2-29/32 Carbide Insert Stainless Needle
CARBIDE INSERT- ROUND PATTERN
• Size: 4 only
• Application: Gritty, Abrasive Material
• Fluid Viscosity: Light Abrasives
19. ACR-15-4
Aircap (for Carbide Tip)
20. AU-12 Aircap Nut
21. AUC-4 Carbide Insert Stainless Body Tip
22. A-AUC-2-29/32 Carbide Insert Stainless Needle

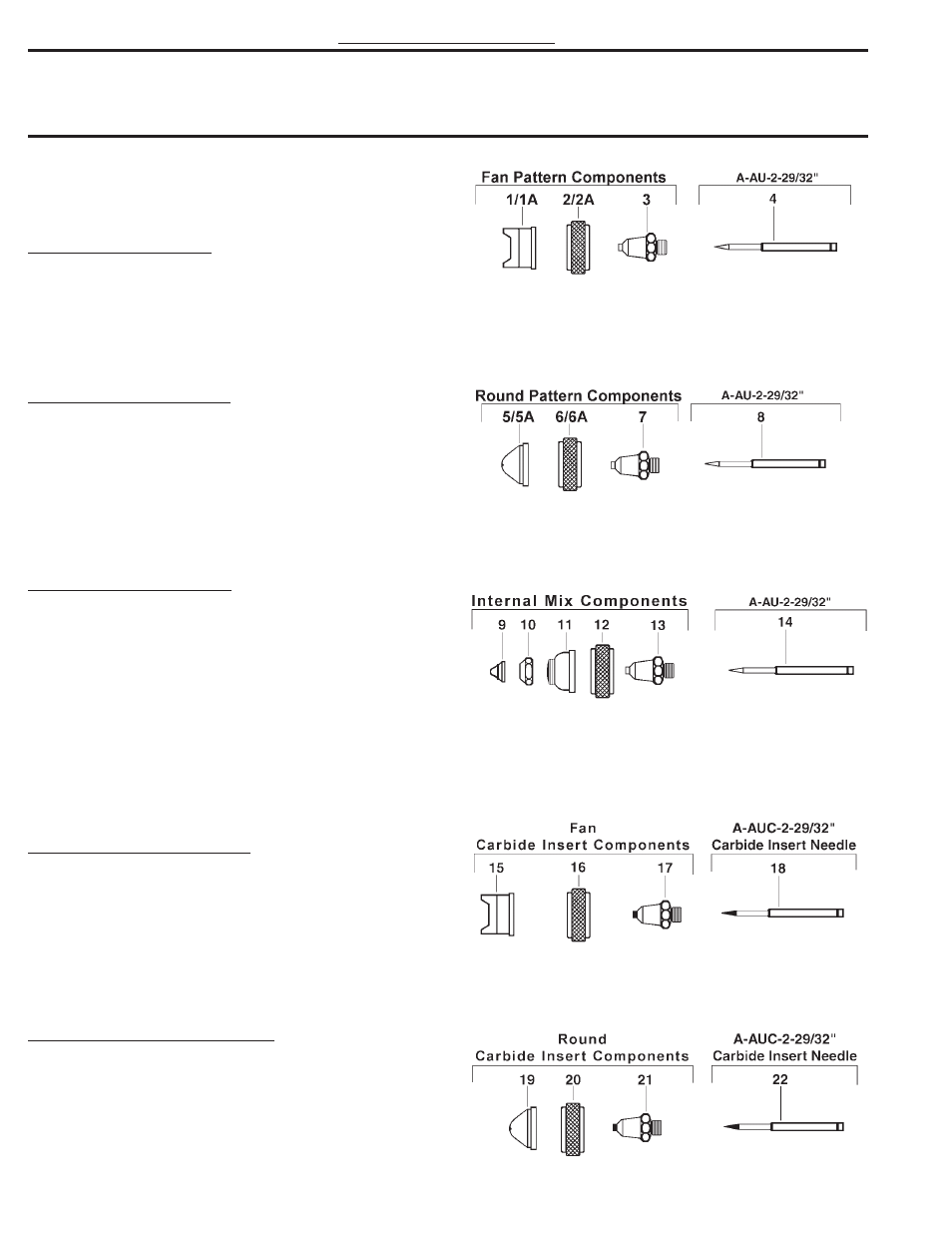

Page 2 SPRAY HEAD COMPONENTS for A-JU Automatic Spray Gun
Spray Heads for the A-JU- Automatic Spray Guns are available in several different styles, some of which are available with
Stainless Steel components. The C.F.M. requirements range from .25 to 3 C.F.M. @ 30 lbs. air pressure. NOTE: When either
fluid Tip or fluid Needle is worn and requires replacement, it is recommended that both items be changed for best results. All
Tips and Needles are made using 303 Stainless Steel. Carbide Tips and Needles are available for use with abrasive materials.
