IDDUPS Series DC/DC Converter Module
Page 40

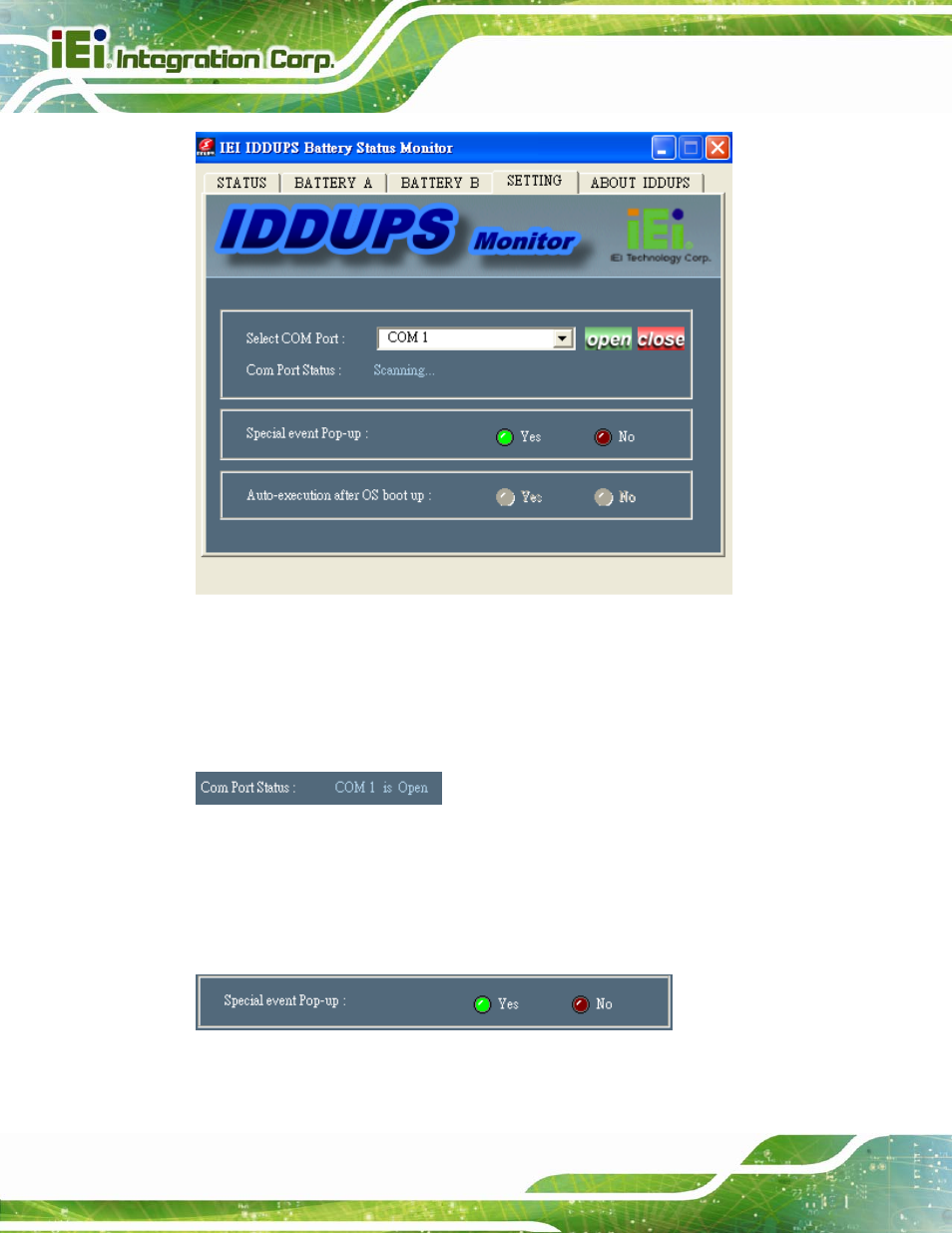

Figure 5-7: Application Setting
When the IDDUPS Battery Status Monitor application starts up, it automatically scans all
COM port (COM1~COM16) and shows the valid COM port.
232H232H232H235H
Figure 5-8 shows the
IDDUPS application is communicating with IDDUPS module through COM 1.
Figure 5-8: COM Port Status
The IDDUPS Battery Status Monitor application will notify users with pop-up window if
some special events happen, such as battery low or temperature over 60°C. This function
can be enabled or disabled. Click Yes to enable or click No to disable (
233H233H233H236H
Figure 5-9 ).
Figure 5-9: Special Event Pop-up Setting
