IDDUPS Series DC/DC Converter Module
Page 26

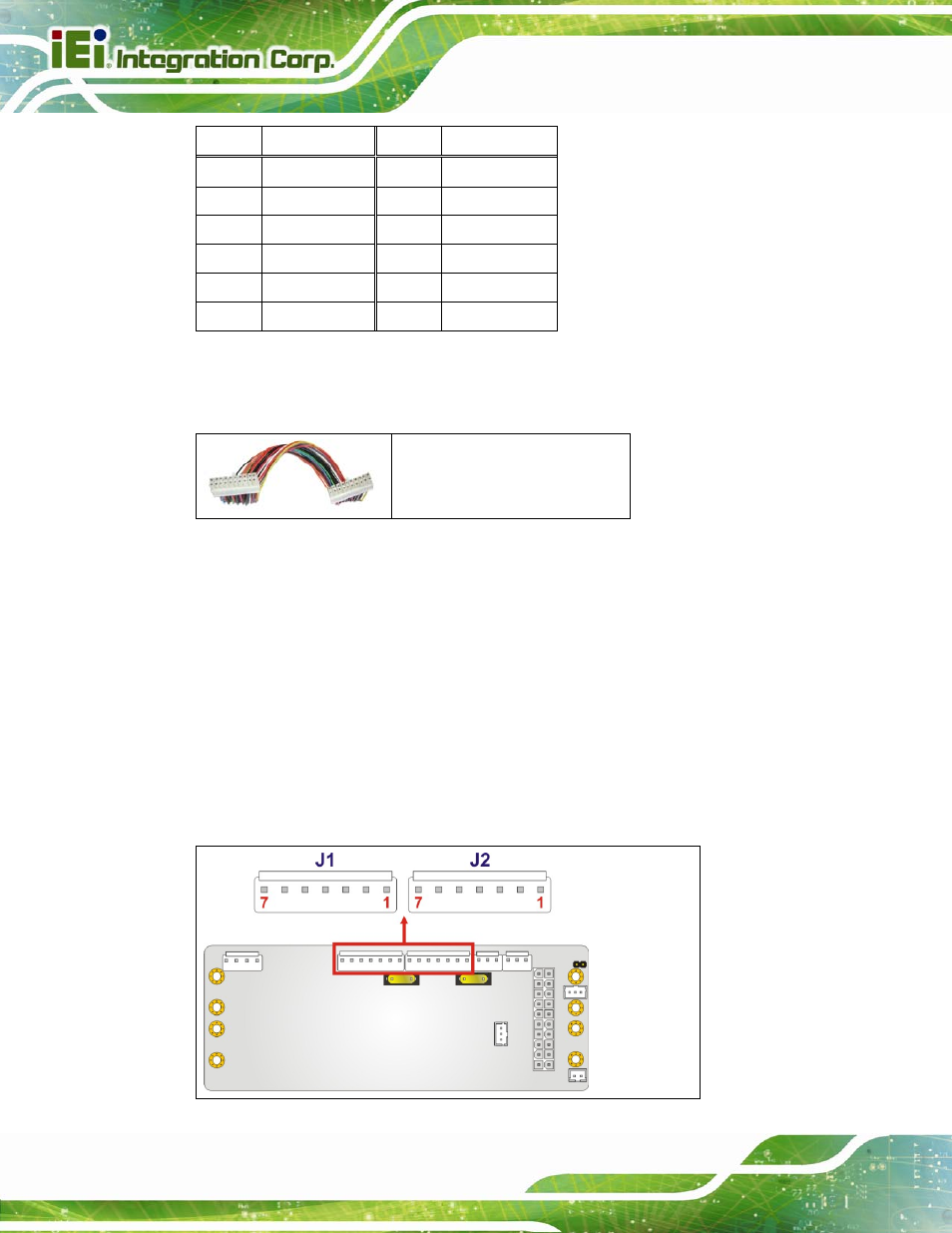

PIN NO. DESCRIPTION PIN NO. DESCRIPTION
5 GND 15 GND
6 +5V 16 GND
7 GND 17 GND
8 Power good 18 -5V
9 5VSB 19 +5V
10 +12V 20 +5V
Table 4-5: ATX Power Connector Pinouts
Use the following cable to connect J3 with motherboard:
20p-20p ATX cable
(for IDDUPS-6364120A)
(P/N: CB-ATX20P-RS)
Table 4-6: J3 Connector Cables
4.2.3 Battery Connectors
CN Label: J1, J2
CN Type: 7-pin wafer connector (1x7)
CN Location: See
208H208H208H211H
Figure 4-5
CN Pinouts: See
209H209H209H212H
Table 4-7
This connector is connected to the smart battery.
