IDDUPS Series DC/DC Converter Module

Page 29

Cable for Terminal Block

(P/N: CB-NOLP4-RS)

Table 4-9: CN1 Connector Cables

4.2.5 Output Power Connectors

CN Label:

CN3, CN4

CN Type:

3-pin wafer connector (1x3)

CN Location:

See

212H212H212H215H

Figure 4-8

CN Pinouts:

See

213H213H213H216H

Table 4-10

The power module provides power to devices through this output power connector.

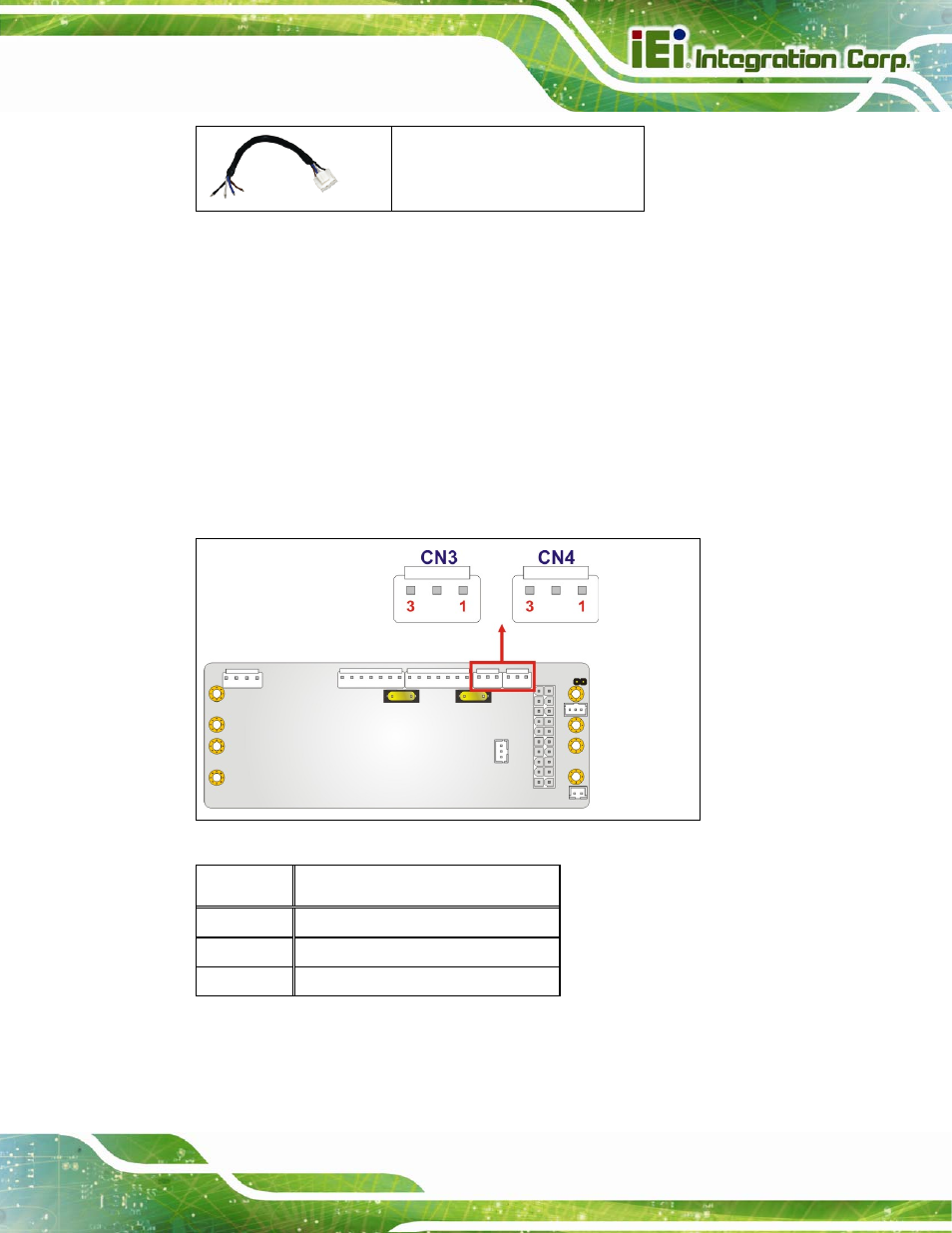

Figure 4-8: Output Power Connector Locations

PIN NO.

DESCRIPTION

1 +5V

2 GROUND

3 +12V

Table 4-10: Output Power Connector Pinouts

Use either one of the following cables to connect CN3 or CN4 with HDD:
