IDDUPS Series DC/DC Converter Module
Page 27
Figure 4-5: Battery Connector Locations
PIN NO. DESCRIPTION
1 BAT+
2 BAT+
3 Clock
4 DATA
5 Temp
6 GROUND
7 GROUND
Table 4-7: Battery Connector Pinouts

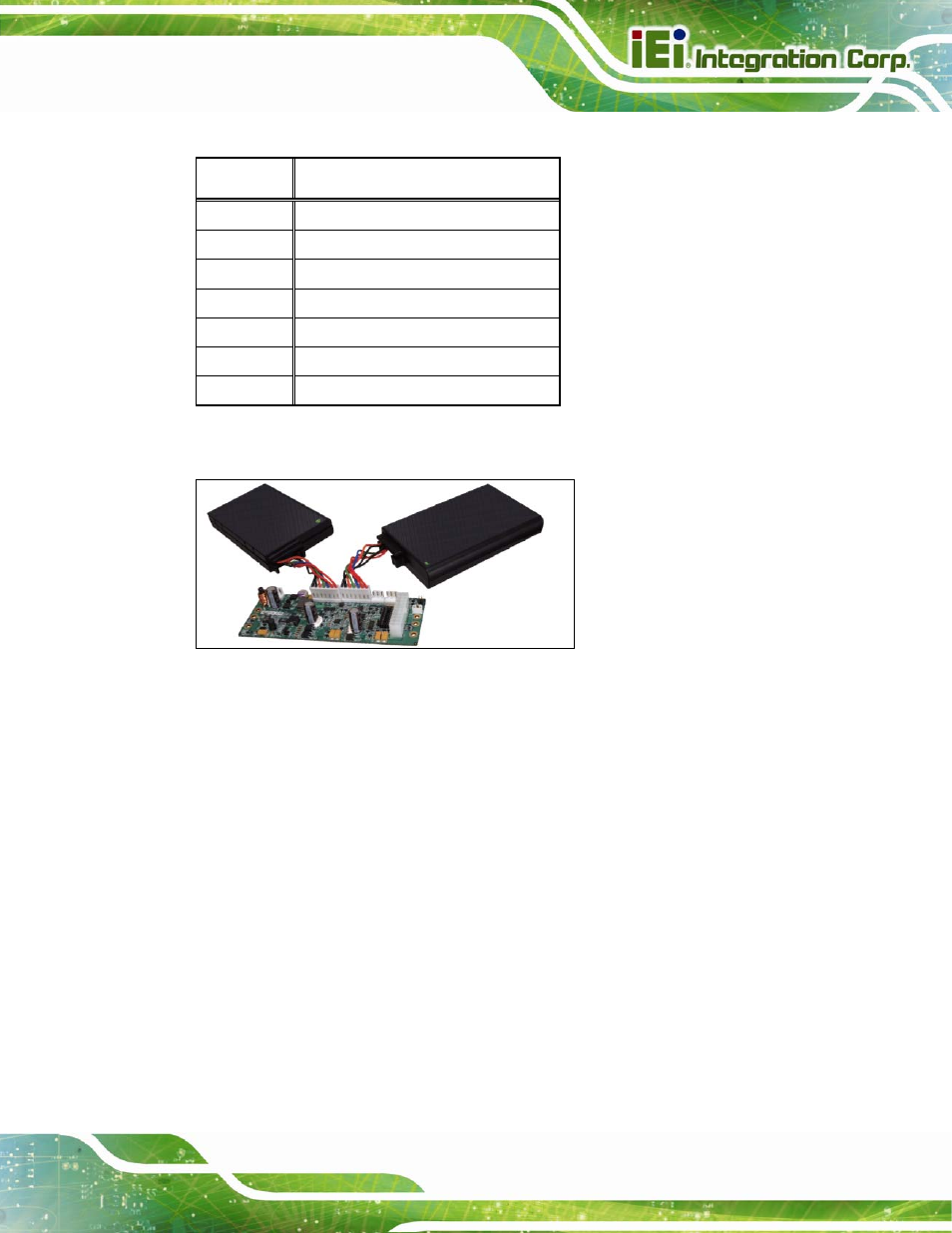

Figure 4-6: Battery Connected
4.2.4 Input Power Connector
CN Label: CN1
CN Type: 4-pin wafer connector (1x4)
CN Location: See
210H210H210H213H
Figure 4-7
CN Pinouts: See
211H211H211H214H
Table 4-8
The input power connector is connected to power source, such as a power adapter or a
terminal block.
