IDDUPS Series DC/DC Converter Module
Page 37

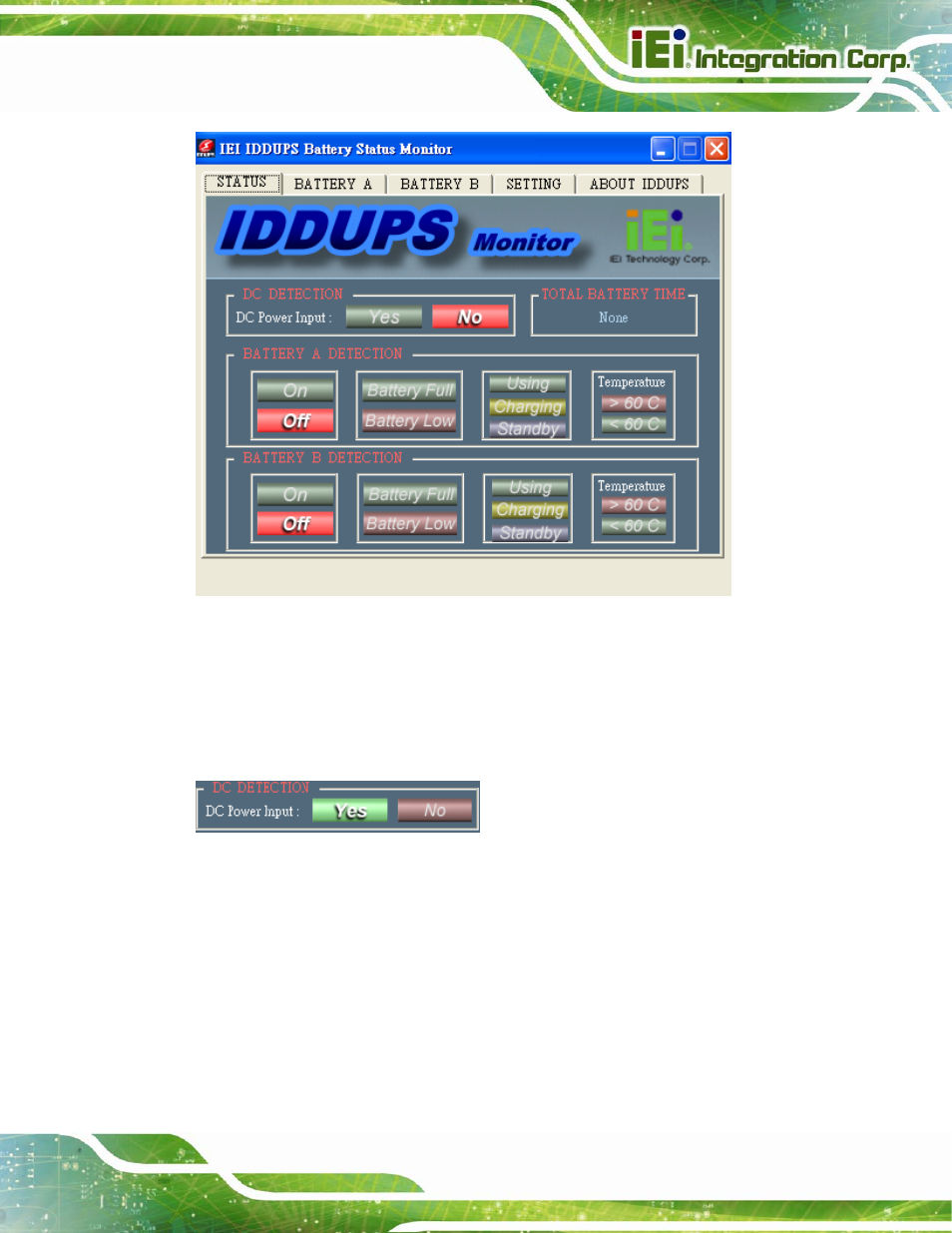

Figure 5-2: Status Information
5.2.2.1 DC Detection
When the DC power is connected to the IDDUPS series power module, the IDDUPS
Battery Status Monitor detects it and shows in the screen as
226H226H226H229H
Figure 5-3 .
Figure 5-3: DC Detection
5.2.2.2 Battery Detection
When the smart battery is connected to the IDDUPS series power module, the IDDUPS
Battery Status Monitor detects it and shows in the screen as
227H227H227H230H
Figure 5-4 . Two batteries
can be connected to the IDDUPS series power module at the same time. The second
battery information is shown in the Battery B Detection section if connected.
