IDDUPS Series DC/DC Converter Module
Page 36
5.1 Introduction
The IEI IDDUPS Battery Status Monitor application detects the information of the smart
battery and monitors the battery status. It is recommended to execute this IDDUPS
application in Windows XP SP2 environment.
5.2 Monitoring DC Power and Smart Battery
5.2.1 Using the Application
Follow the steps below to start the IDDUPS Battery application.
Step 1:
Use the RS-232 cable to connect the JP2 connector on the IDDUPS series to
the serial port of the SBC. Please refer to Section
223H223H223H226H
4.3.1
for the location of the
JP2 connector.
Step 2:
Insert the application CD that comes with IDDUPS series.
Step 3:

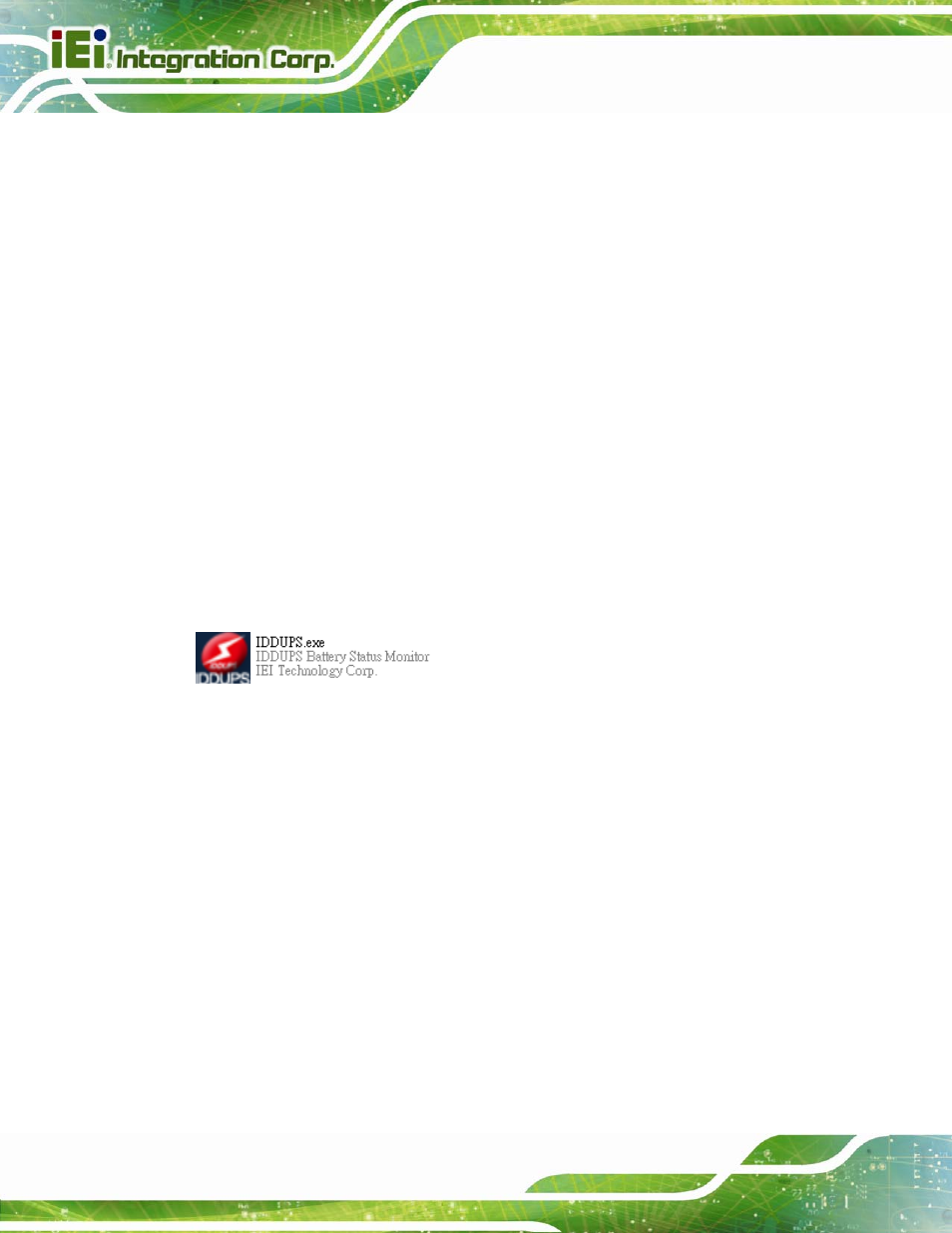

Double click the IDDUPS.exe icon (
224H224H224H227H
Figure 5-1
).
Figure 5-1: IDDUPS Battery Status Monitor Application
5.2.2 Status Information
The IEI IDDUPS Battery Status Monitor application shows the DC power status and
battery status (
225H225H225H228H
Figure 5-2
). The following sections describe the status information in
details.
