IDDUPS Series DC/DC Converter Module
Page 24
4.2 Internal Peripheral Connectors
Internal peripheral connectors are found on the motherboard and are only accessible
when the motherboard is outside of the chassis. This section has complete descriptions of
all the internal, peripheral connectors on the IDDUPS-6364120/636260.
4.2.1 ATX Mode Connector
CN Label:
CN2
CN Type:
3-pin wafer connector (1x3)
CN Location:
See
203H203H203H206H
Figure 4-3
CN Pinout s:
See
204H204H204H207H
Table 4-3
Connect the ATX Mode Connector (CN2) to the motherboard to use ATX mode to control
power on/off. The JP1 jumper should be open when using ATX mode (Section
205H205H205H208H
4.3.1
).

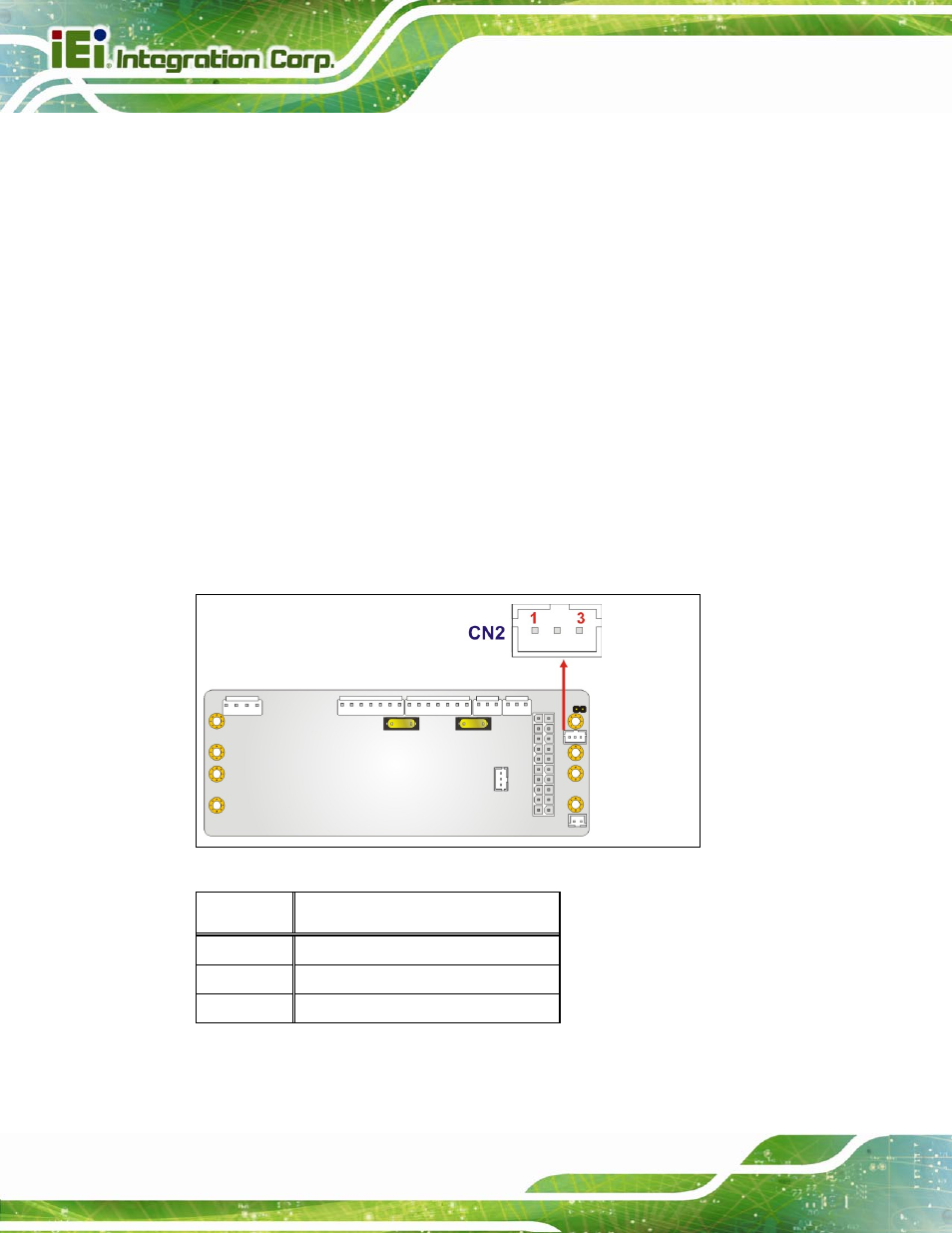

Figure 4-3: ATX Mode Connector Location
PIN NO.
DESCRIPTION
1 5VSB
2 GROUND
3 PS_ON
Table 4-3: ATX Mode Connector Pinouts
Use either one of the following cables to connect CN2 with motherboard:
