AFL-W19A/17D/W15A-N270 Panel PC

Page 21

JP6 Description

Short 1-2

COM1 RI Pin use +12 V

Short 3-4

COM1 RI Pin use RI

Short 5-6

COM1 RI Pin use +5 V

Table 2-6: COM1 Pin 9 Setting Jumper Settings

JP7 Description

Short 1-2

COM3 RI Pin use +12 V

Short 3-4

COM3 RI Pin use RI

Short 5-6

COM3 RI Pin use +5 V

Table 2-7: COM3 Pin 9 Setting Jumper Settings

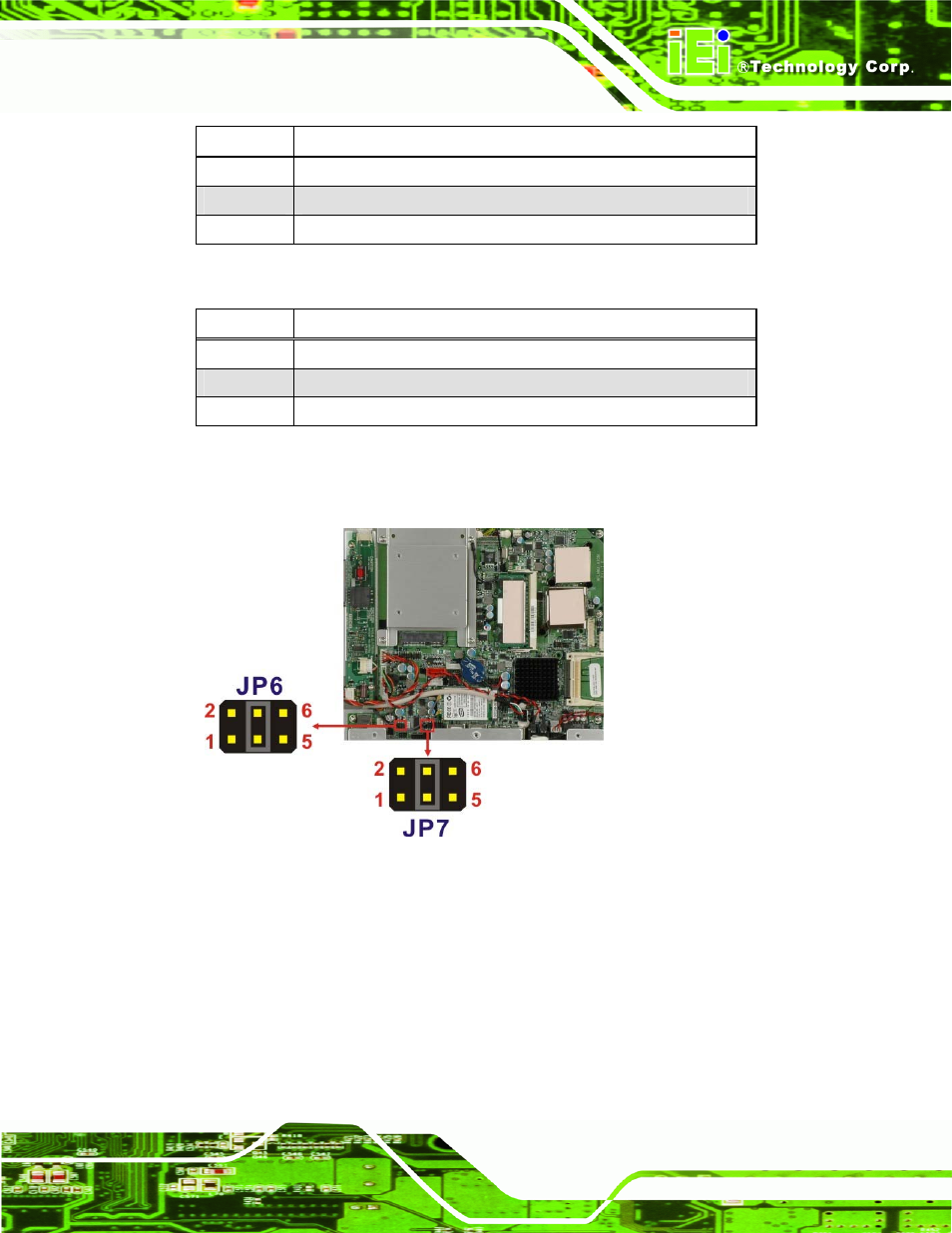

The COM1 and COM3 Pin 9 Setting jumper locations are shown in Figure 2-10 below.

Figure 2-10: COM1 and COM3 Pin 9 Setting Jumper Locations

2.5.6 COM3 RX Function Select Jumper

Jumper Label:

JP8

Jumper Type:

8-pin header

Jumper Settings:

See Table 2-8

Jumper Location:

See Figure 2-11
