AFL-W19A/17D/W15A-N270 Panel PC

Page 20

After having done one of the above, save the changes and exit the CMOS Setup menu.

The clear CMOS jumper settings are shown in Table 2-5.

Clear CMOS

Description

Short 1 - 2

Keep CMOS Setup

Short 2 - 3

Clear CMOS Setup

Table 2-5: Clear CMOS Jumper Settings

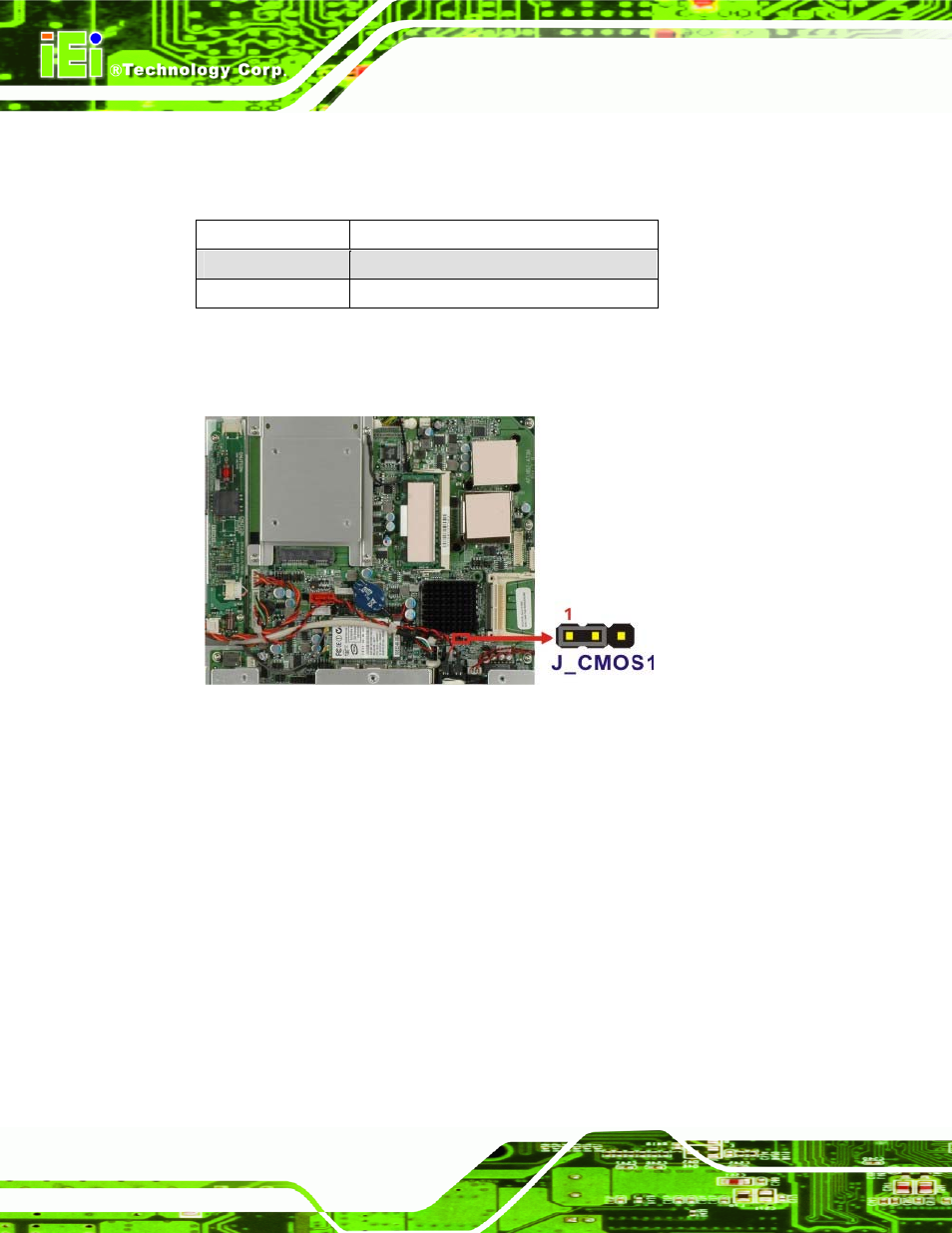

The location of the clear CMOS jumper is shown in Figure 2-9 below.

Figure 2-9: Clear CMOS Jumper

2.5.5 COM Port Pin 9 Select

Jumper Label:

JP6 and JP7

Jumper Settings:

See Table 2-6

Jumper Type:

6-pin header

Jumper Location:

See Figure 2-10

Two jumpers (JP6 and JP7) configure pin 9 on COM1 and COM3 DB-9 connectors. Pin 9

on the COM1 and the COM3 DB-9 connectors can be set as the ring (RI) signal, +5 V or

+12 V. The COM1 and COM3 Pin 9 Setting jumper selection options are shown in Table

2-6.
