AFL-W19A/17D/W15A-N270 Panel PC

Page 15

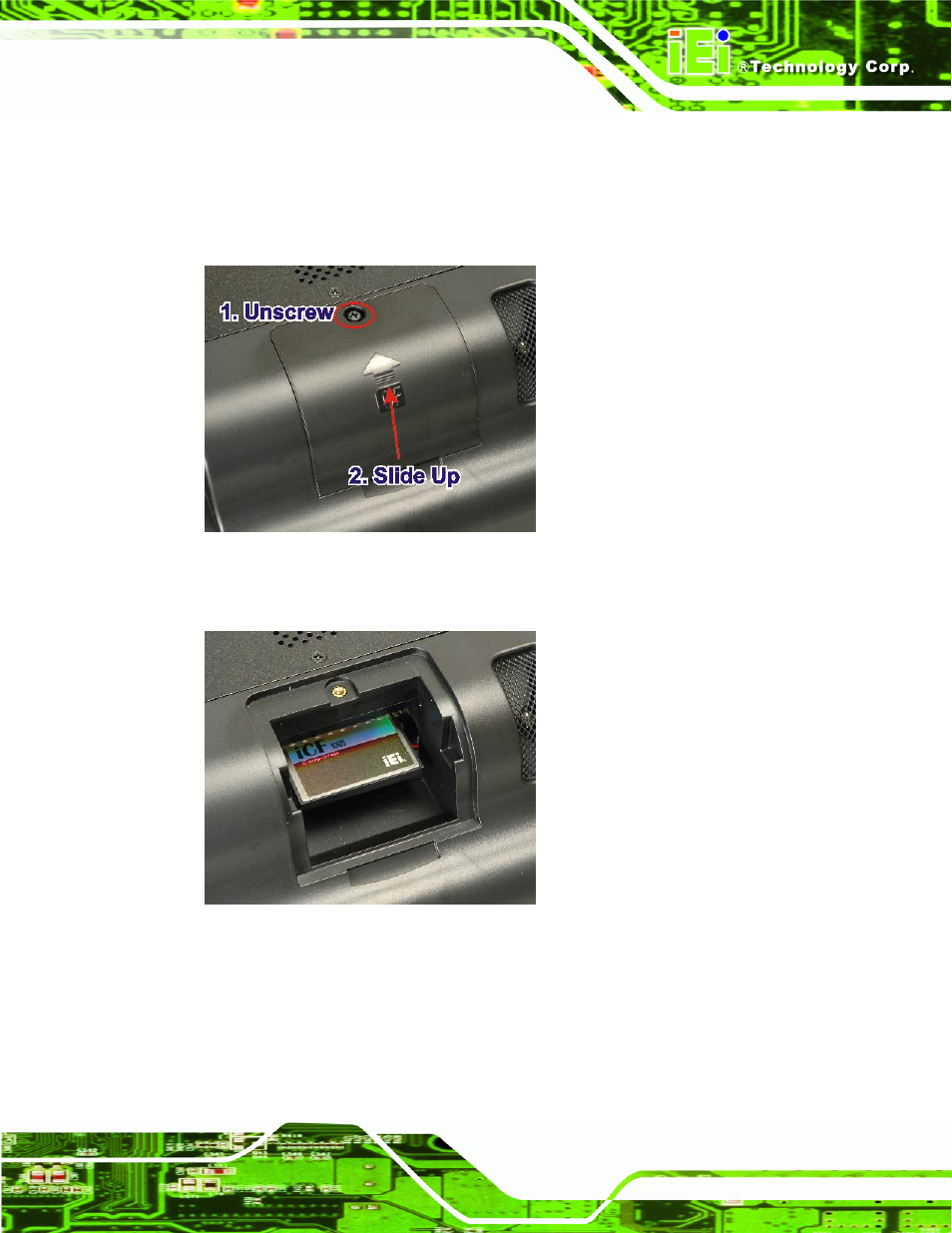

2.4.1 AFL-17D-N270 CompactFlash® Installation

Step 1:

Undo the CompactFlash® slot screw.

Step 2:

Slide the cover upwards to remove.

Figure 2–4: Remove CompactFlash® Cover

Step 3:

Install the CompactFlash® in the slot inside.

Figure 2–5: CompactFlash® Install

Step 4:

Slide the cover back on, then fasten the screw.

S

te

p

0

:

2.4.2 ALF-W15A-N270/AFL-W19A-N270 CompactFlash® Installation

Step 1:

Locate the CompactFlash® slot as shown in the figure below.
