AFL-W19A/17D/W15A-N270 Panel PC

Page 14

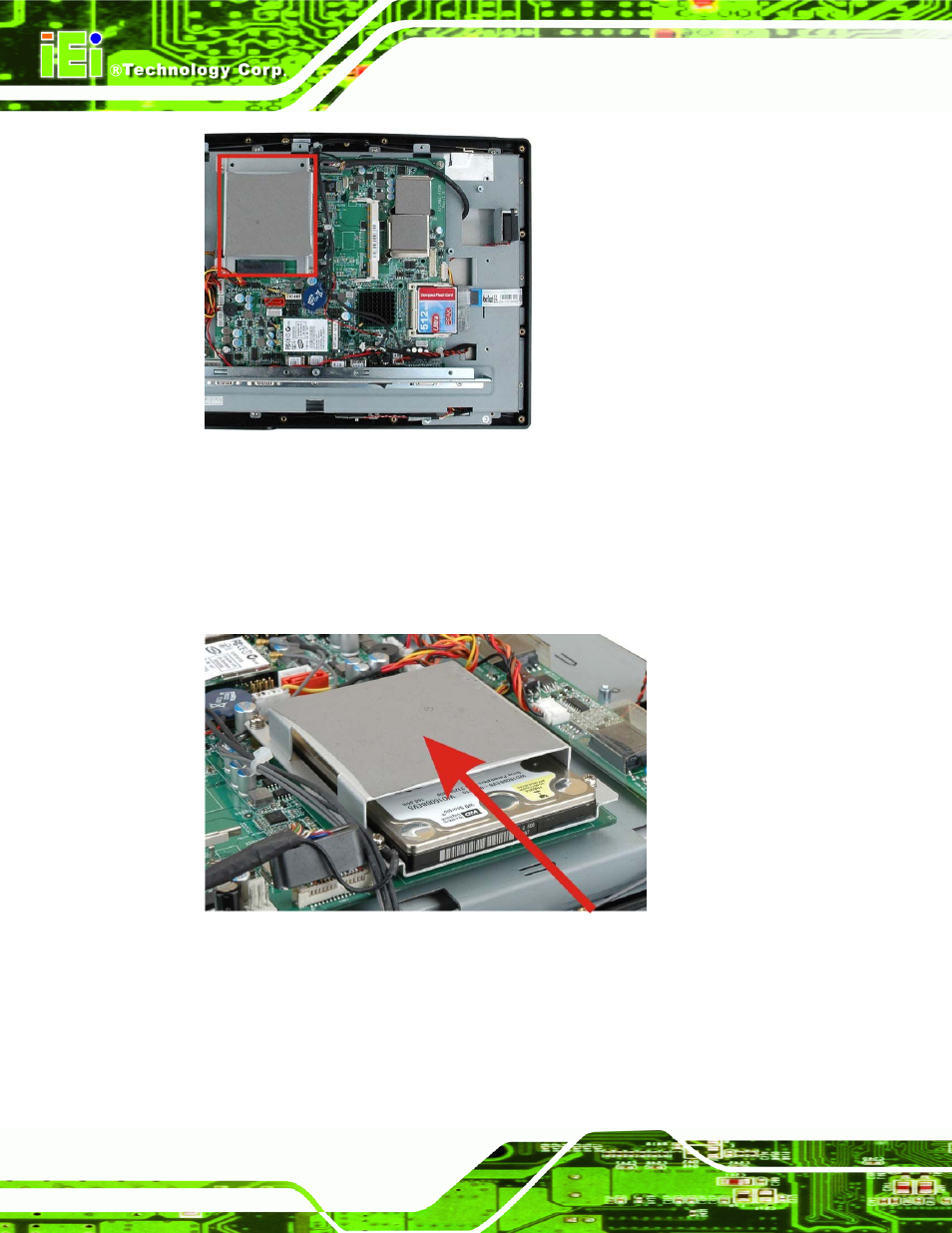

Figure 2-2: HDD Bracket

Step 4:

Locate the HDD bracket.

Step 5:

Insert the SATA connector end of the HDD into the bracket to connect the

motherboard SATA connector to the hard drive SATA connector as shown in the

figure below.

Figure 2–3: HDD Installation

Step 6:

Replace the cover and screws.

S

te

p

0

:

2.4 CompactFlash® Installation

The installation for a CompactFlash® card is described in this section.
