IDS-H61 Digital Signage Player
Page 44
Step 1: Remove the top cover by removing the four retention screws on both side panels
(two on each side). See Figure 5-1.
Step 2: Locate the SO-DIMM. (
83
Figure 5-4 ).

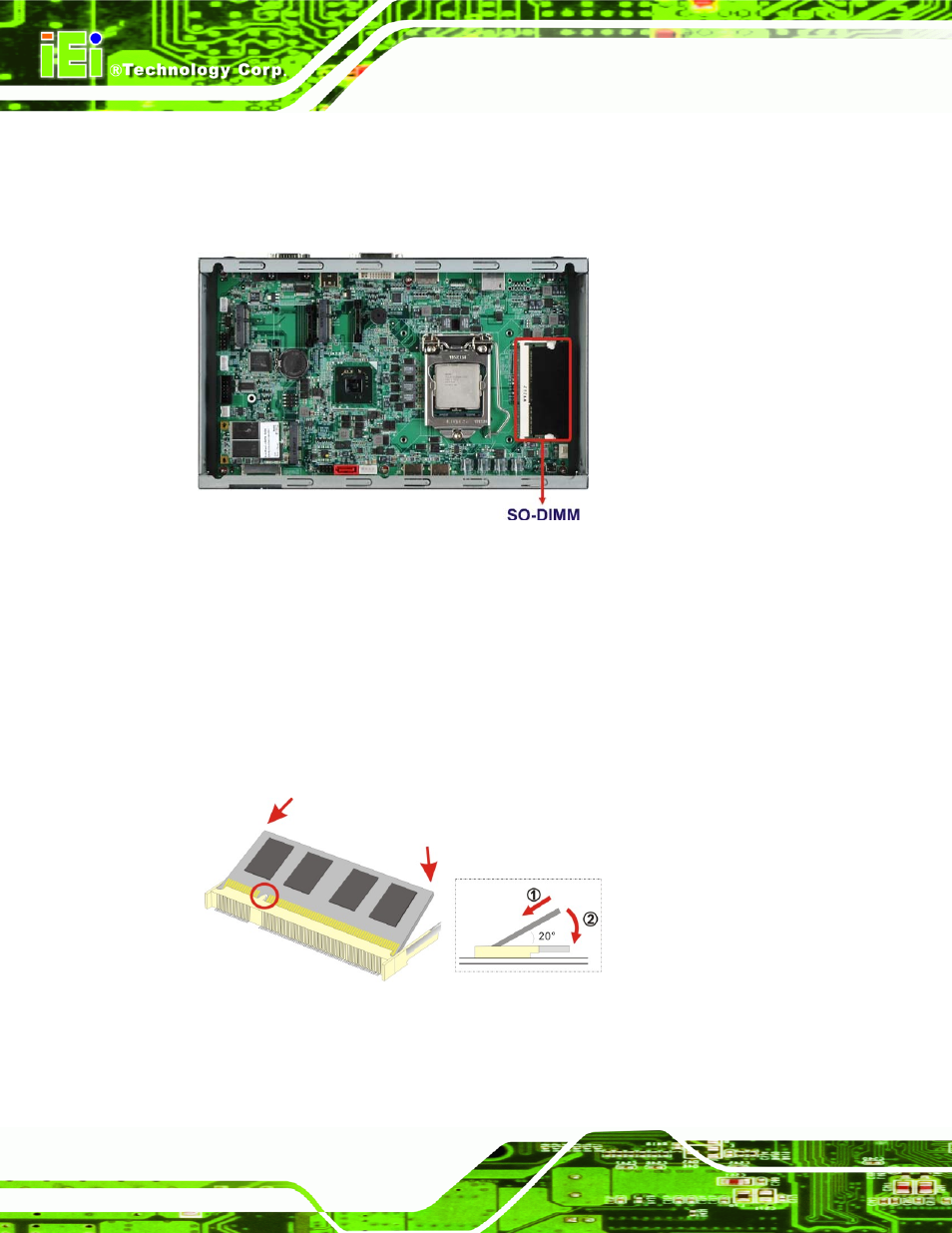

Figure 5-4: SO-DIMM Removal
Step 3: Remove the SO-DIMM by releasing the arms on the SO-DIMM socket. Align the
new SO-DIMM with the socket. The SO-DIMM must be oriented in such a way
that the notch in the middle of the SO-DIMM must be aligned with the plastic
bridge in the socket (
83
Figure 5-5 ).
Step 4: Insert the SO-DIMM. Push the SO-DIMM chip into the socket at an angle
(
83
Figure 5-5 ).
Figure 5-5: SO-DIMM Installation
Step 5: Secure the SO-DIMM . Press the SO-DIMM down until the arms of the
SO-DIMM socket clip into place and secure the SO-DIMM in the socket. Step 0:
