Step 3:

Secure the SDHC card with the slot cover by fastening the previously removed

retention screw.

3.3 HDD Installation

The IDS-H61 has a 2.5” HDD bay inside the top cover. To install to an HDD, follow the

steps below.

Step 1:

Remove the top cover by removing the four retention screws on both side panels

(two on each side). See Figure 3-3.

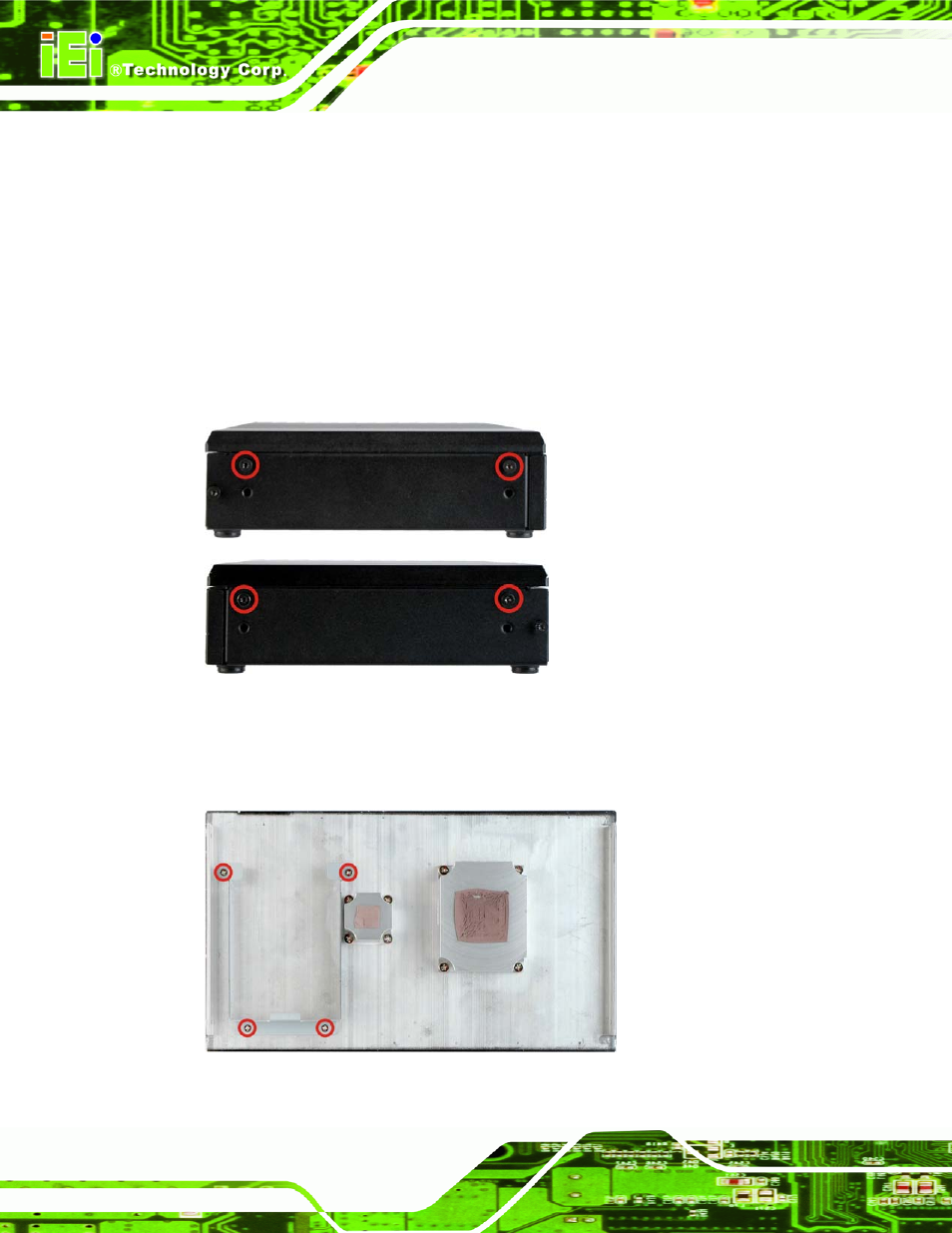

Figure 3-3: Top Cover Retention Screws

Step 2:

Locate the HDD bracket inside the top cover. Remove the four HDD bracket

retention screws and lift the HDD bracket.

Figure 3-4: HDD Bracket Retention Screws
