Pin Description Pin Description Pin Description
8 Analog vertical sync 16 GND 24 TMDS Clock -
C1 Analog Red -- -- -- --
C2 Analog Green -- -- -- --
C3 Analog Blue -- -- -- --
C4 Analog Horizontal Sync -- -- -- --
C5 Analog GND -- -- -- --

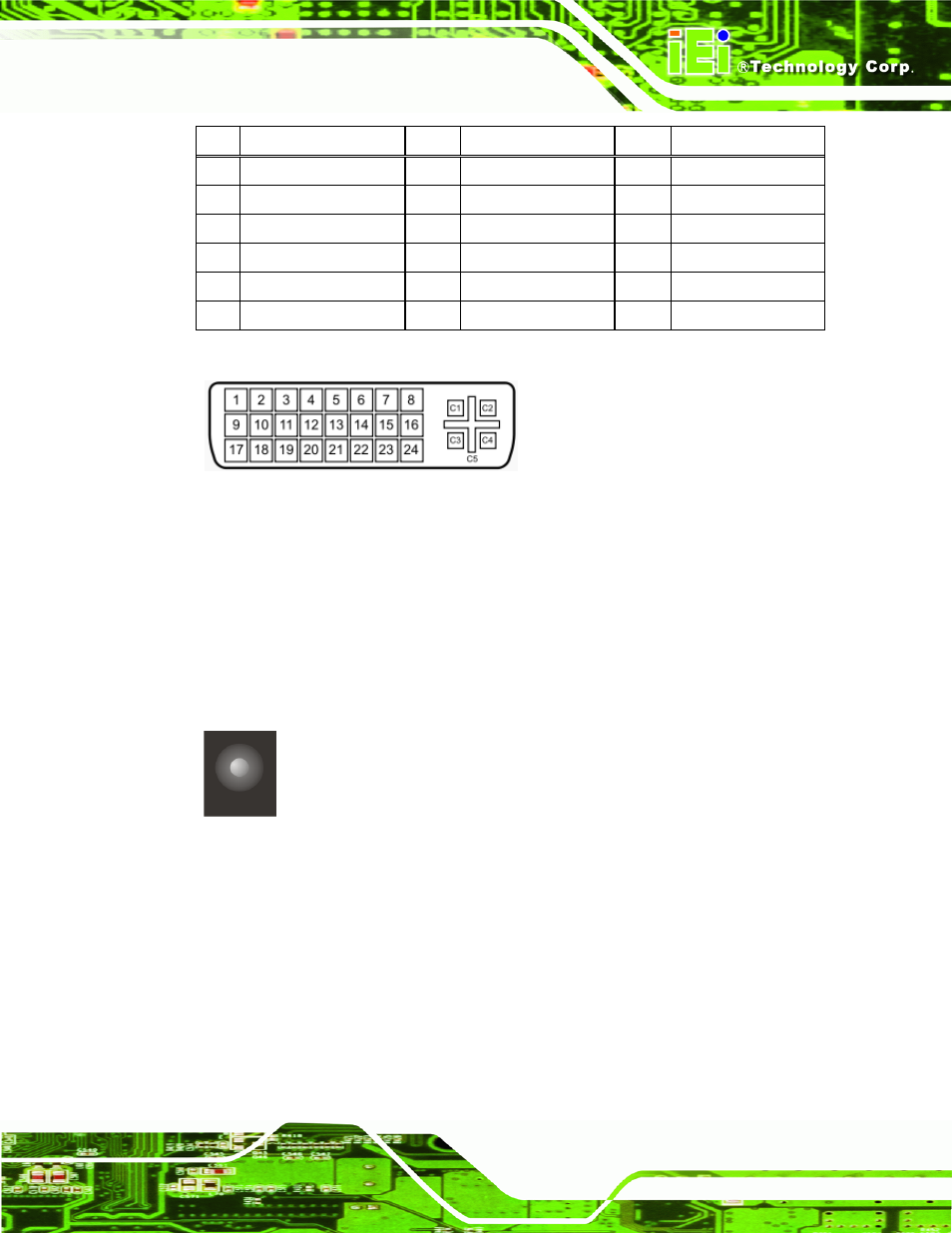

Table 3-3: DVI Connector Pinouts
Figure 3-12: DVI-I Connector
3.5.5 Power Connector (12 V, Power Adapter)
CN Label: DC 12V
CN Type:
DC jack
The connector supports the 12V power adapter.
Figure 3-13: Power Jack Connector
3.5.6 RS-232 Serial Port Connector
CN Label: RS-232
CN Type: Male DB-9
CN Pinouts: See Table 3-4
The RS-232 serial port connector allows connection to a serial device.
