IDS-H61 Digital Signage Player

Page 43

Step 3:

Remove the mSATA module

. Push the two spring clips in to release the

mSATA module.

Step 4:

Insert a new mSATA module into the socket at an angle

. Line up the notch

on the card with the notch on the connector. Slide the mSATA module into the

socket at an angle of about 20º (Figure 5-3).

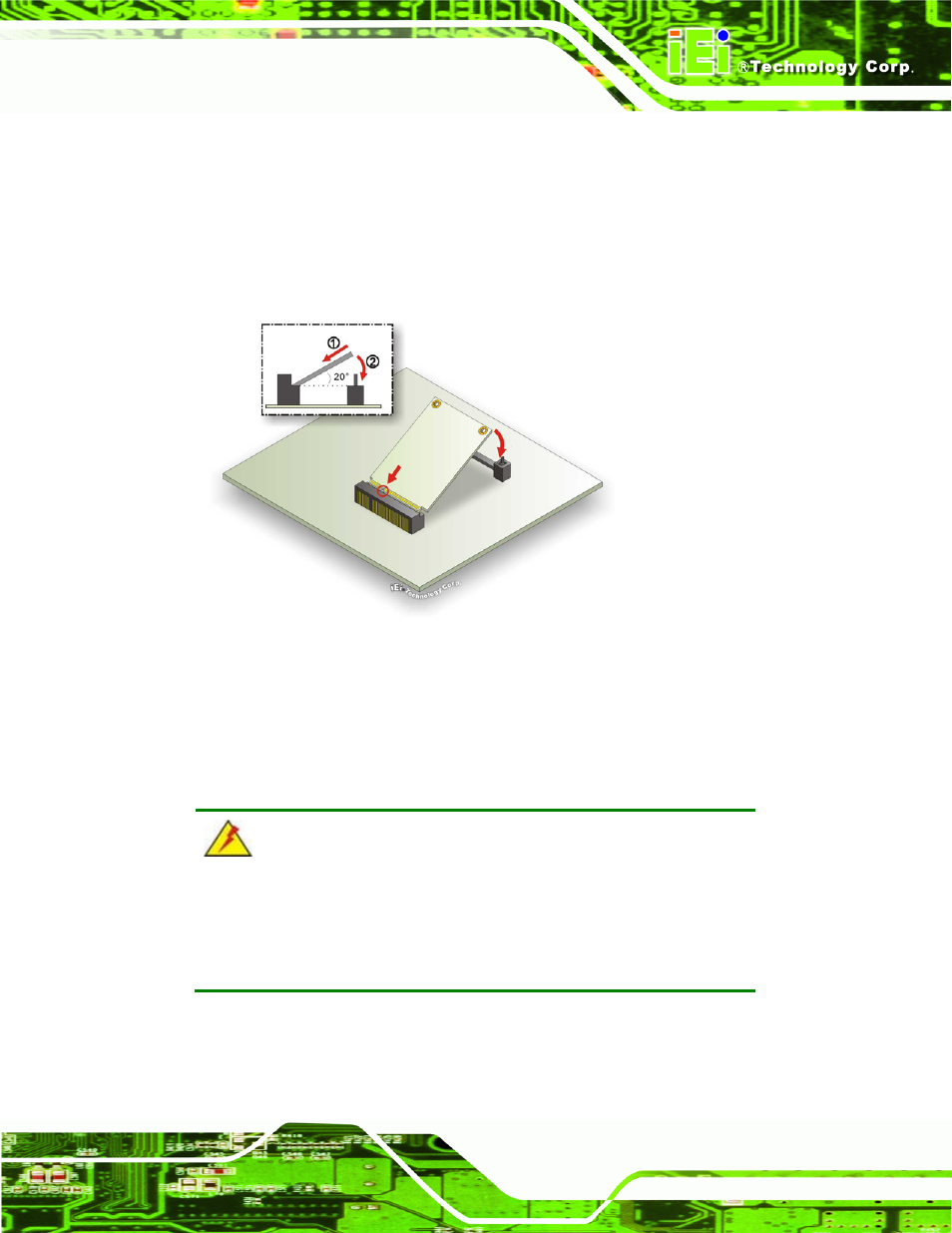

Figure 5-3: mSATA Module Installation

Step 5:

Push down until the card clips into place

. Push the other end of the card

down until it clips into place on the plastic connector.

Step 0:

5.2.2 SO-DIMM Replacement

WARNING:

Using incorrectly specified SO-DIMM may cause permanently damage

the IDS-H61. Please make sure the purchased SO-DIMM complies

with the memory specifications of the IDS-H61.

To replace a SO-DIMM memory module into a SO-DIMM socket, please follow the steps

below.
