S te p 8: Install the bracket that was previously removed in the same position it was
before.
S te p 9: Reinstall the bottom panel to the TANK-720.
3.8 Mo u n tin g th e S ys te m with Mo u n tin g Bra c ke ts
To mount the embedded system onto a wall or some other surface using the two mounting
brackets, please follow the steps below.
S te p 1: Turn the embedded system over.
S te p 2: Align the two retention screw holes in each bracket with the corresponding
retention screw holes on the sides of the bottom surface (Figure 3-12).

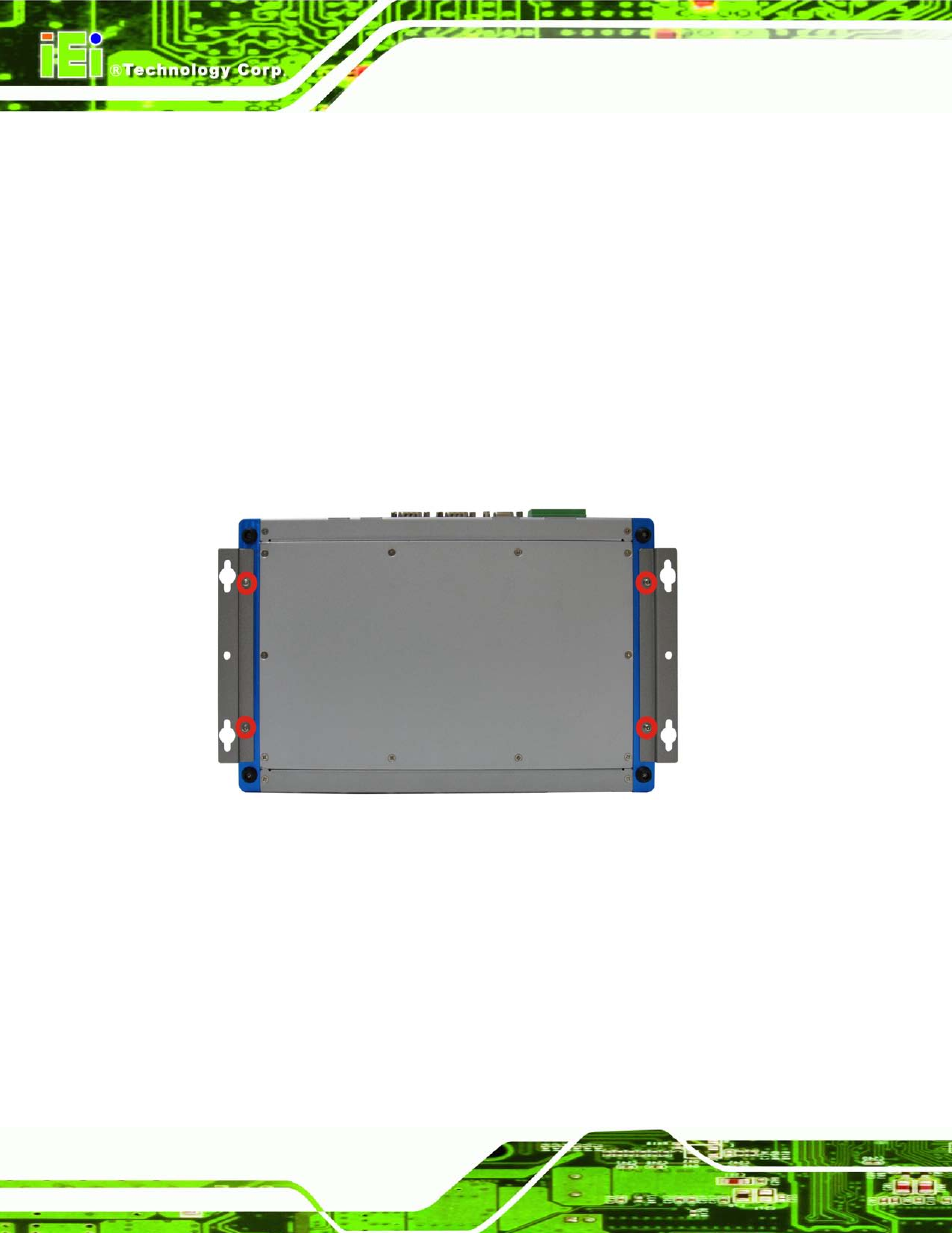

Figure 3-12: Mounting Bracket Retention Screws
S te p 3: Secure the brackets to the system by inserting two retention screws into each
bracket (Figure 3-12).
S te p 4: Drill holes in the intended installation surface.
S te p 5: Align the mounting holes in the sides of the mounting brackets with the predrilled
holes in the mounting surface.
S te p 6: Insert four retention screws, two in each bracket, to secure the system to the
wall.
