TANK-720 Em b e d d e d S ys te m
P a g e 18

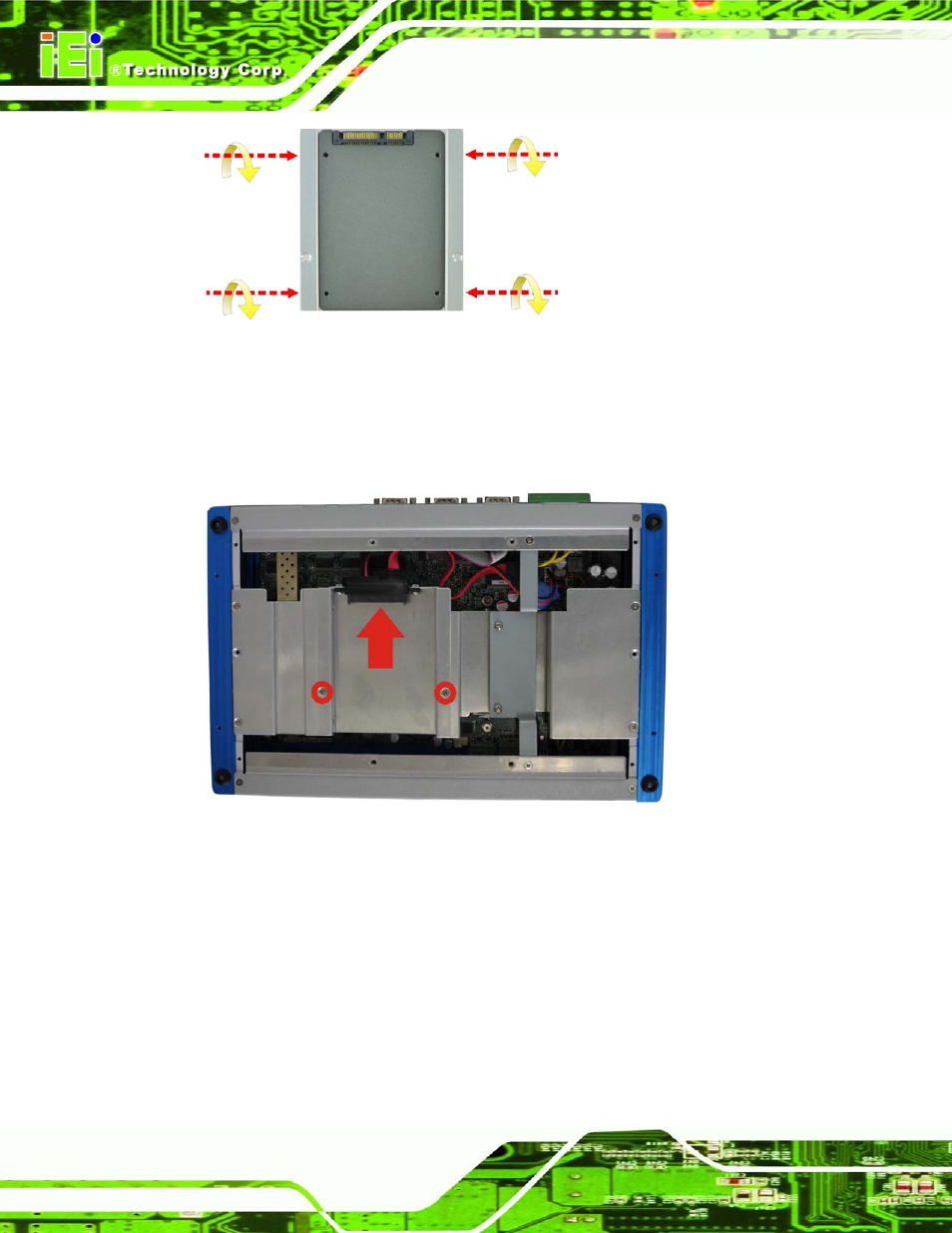

Figure 3-3: HDD Installation
S te p 5: Slide the HDD bracket to connect the HDD to the SATA connector. Secure the
HDD bracket with TANK-720 by the two retention screws that were previously
removed (Figure 3-4).
Figure 3-4: HDD Bracket Installation
S te p 6: Reinstall the bottom panel to the TANK-720.
3.3 P lu g g a b le CAN-b u s Te rm in a l Blo c k In s ta lla tio n
To install the pluggable CAN-bus terminal block, please follow the steps below:
S te p 1: Locate the CAN-bus terminal block connector. The location of the connector is
shown in Figure 1-2.
