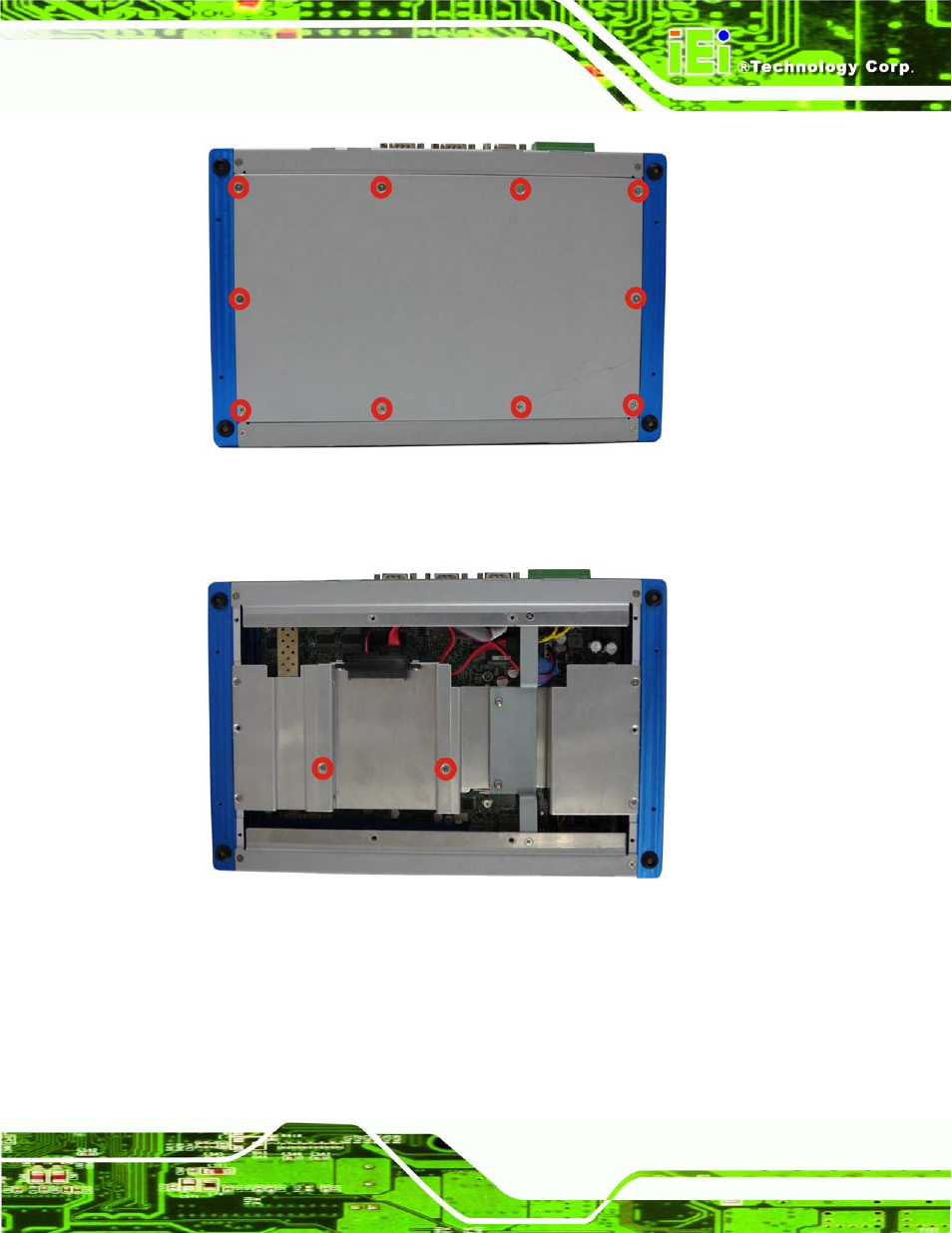

Figure 3-1: Bottom Panel Retention Screws

S te p 2:

Remove the two HDD bracket retention screws (Figure 3-2).

Figure 3-2: HDD Bracket Retention Screws

S te p 3:

Lift the HDD bracket out of the TANK-720 and put it on a flat surface.

S te p 4:

Attach the HDD to the HDD bracket. Secure the HDD with the HDD bracket by

four retention screws (Figure 3-3).
