TANK-800 Embedded System
Page 35
The VGA connector connects to a monitor that accepts VGA video input.
Step 1: Locate the female DB-15 connector . The location of the female DB-15
connector is shown in Figure 1-2.
Step 2: Align the VGA connector . Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
Step 3: Insert the VGA connector . Once the connectors are properly aligned with,
insert the male connector from the VGA screen into the female connector on the
TANK-800. See Figure 3-23.

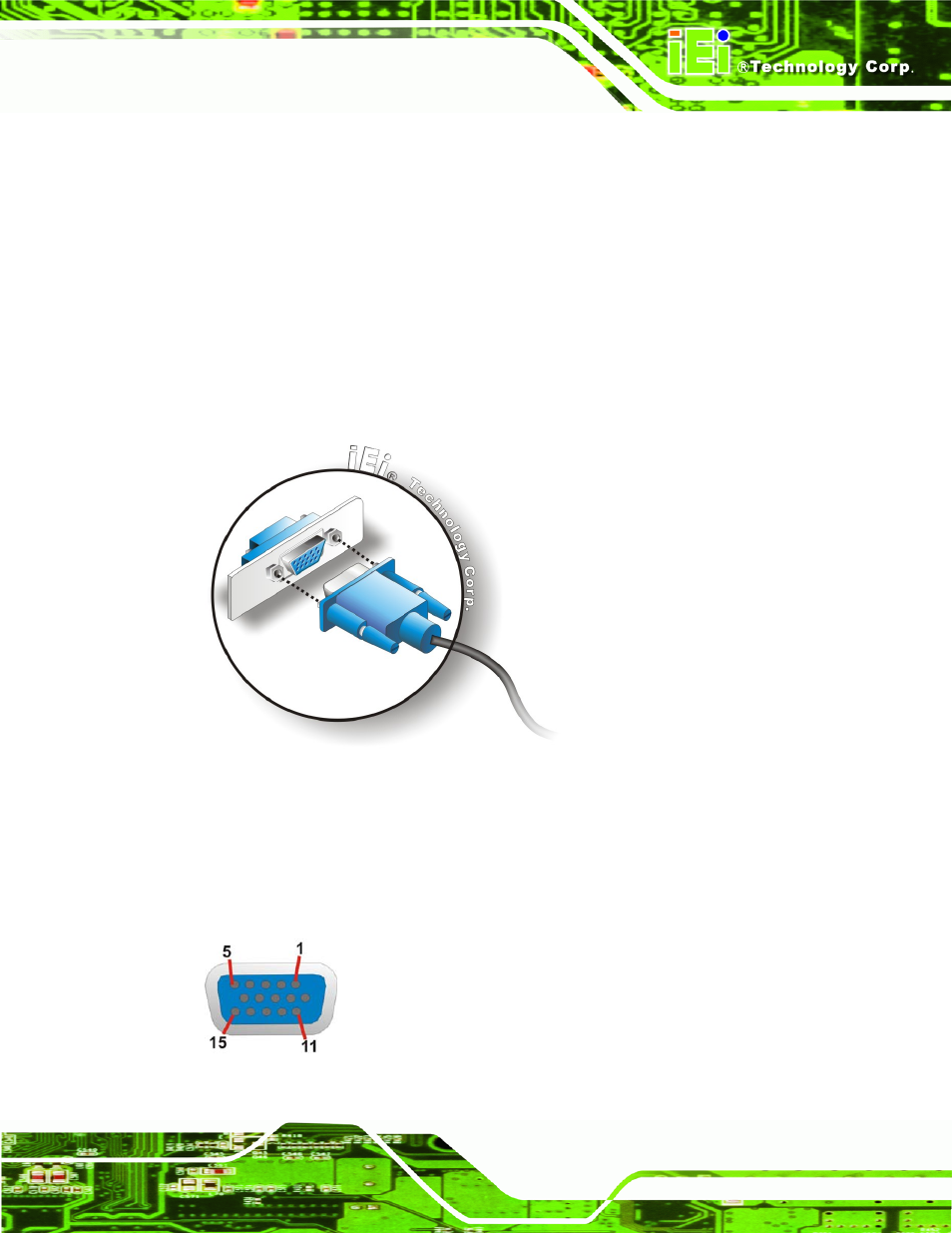

Figure 3-23: VGA Connector
Step 4: Secure the connector . Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either
side of the connector.
Figure 3-24: VGA Connector
