TANK-800 Embedded System
Page 26
3.7.3 Audio Connector
CN Label: Line out and Mic
CN Type: Audio jack
CN Location: See Figure 1-2
The audio jacks connect to external audio devices.
ƒ Line Out port (Green): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
ƒ Microphone (Pink): Connects a microphone.

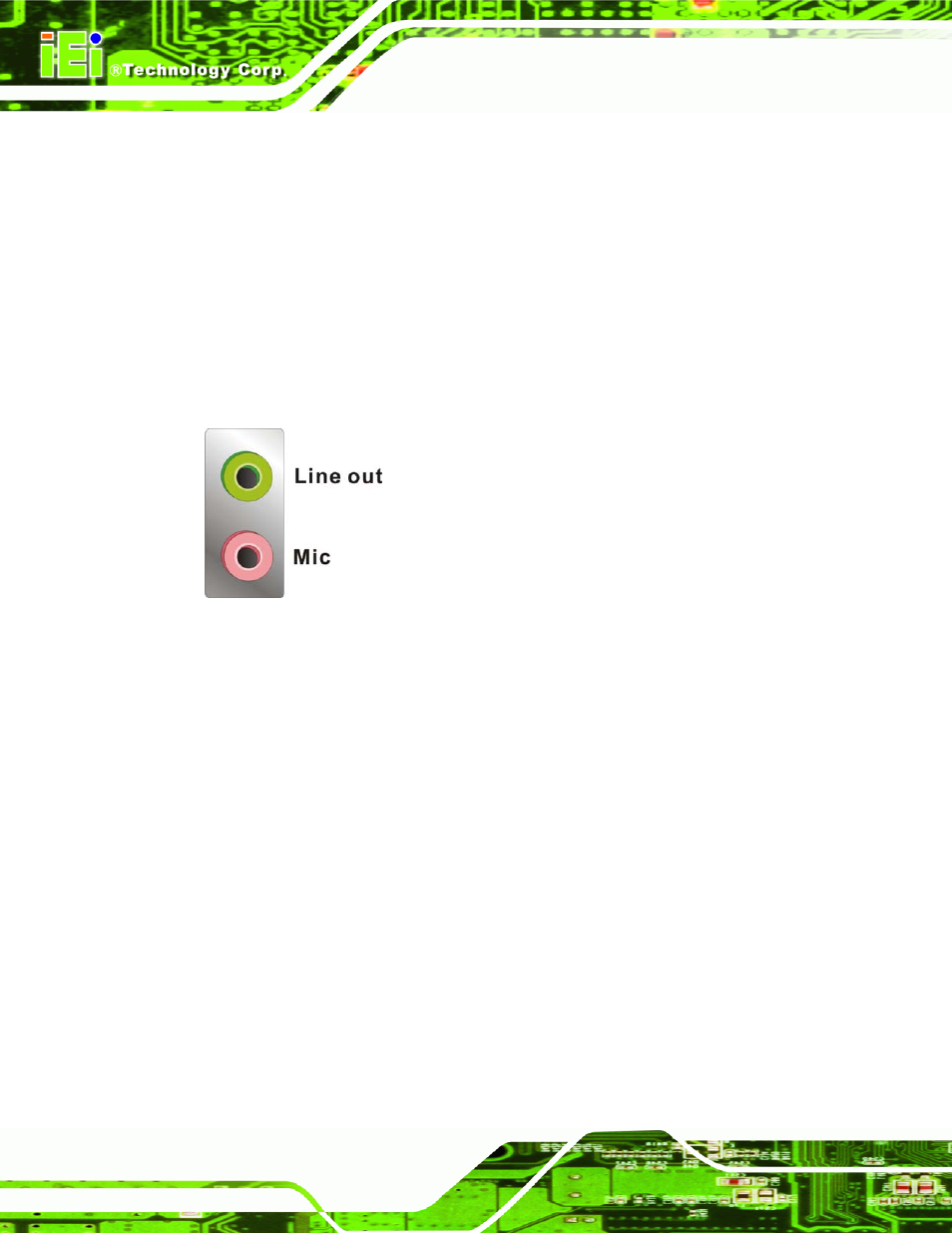

Figure 3-12: Audio Connector
3.7.4 CompactFlash® Type II
The TANK-800 has one CF Type II socket. The location of the socket is shown in Error!
Reference source not found.. To install the CF card, refer to Section 3.2.
3.7.5 Digital Input/Output Connector
CN Label: DIO x 8
CN Type: DB-9 female connector
CN Location: See Figure 1-2
CN Pinouts: See Table 3-1 and Figure 3-13
The digital I/O connector provides programmable input and output for external devices.
The pinouts for the digital I/O connector are listed in the table below.
