KINO-QM770 Mini-ITX SBC

Page 59

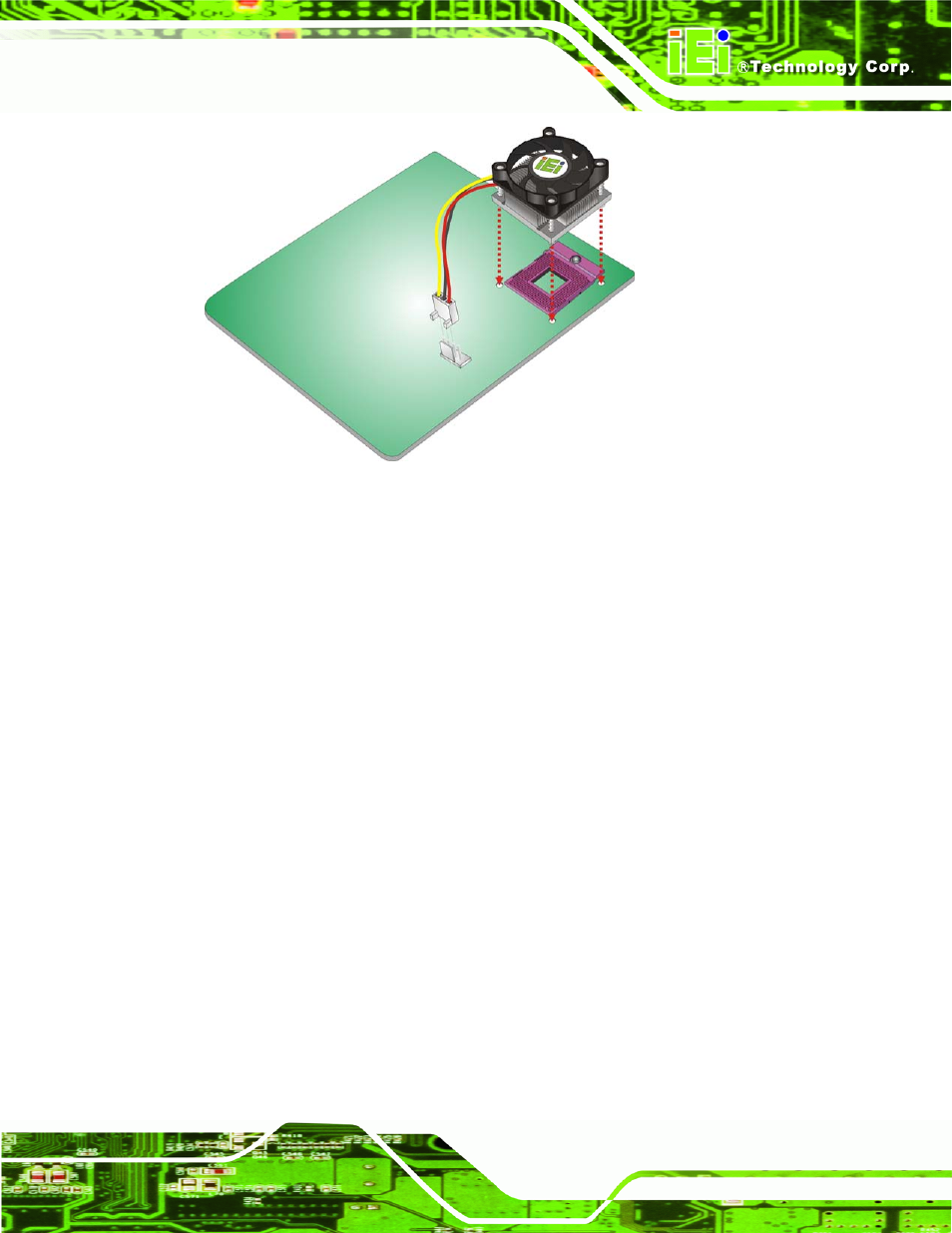

Figure 4-4: Align the Cooling Kit

Step 4:

Place the cooling kit onto the CPU. Push down the fan with some pressure to

secure the cooling kit with the support bracket. See Figure 4-5.

Step 5:

Tighten the screws. Use a screwdriver to tighten the four screws. In a diagonal

pattern, tighten each screw a few turns then move to the next one, until they are

all secured. Do not overtighten the screws. See Figure 4-5.

Step 6:

Connect the fan cable. Connect the cooling kit fan cable to the fan connector

on the board. Carefully route the cable away from heat generating chips and fan

blades.
