PICOe-HM650 Half-size PCIe CPU Card
Page 43
The PICOe-HM650 has a single 15-pin female connector for connectivity to standard
display devices.

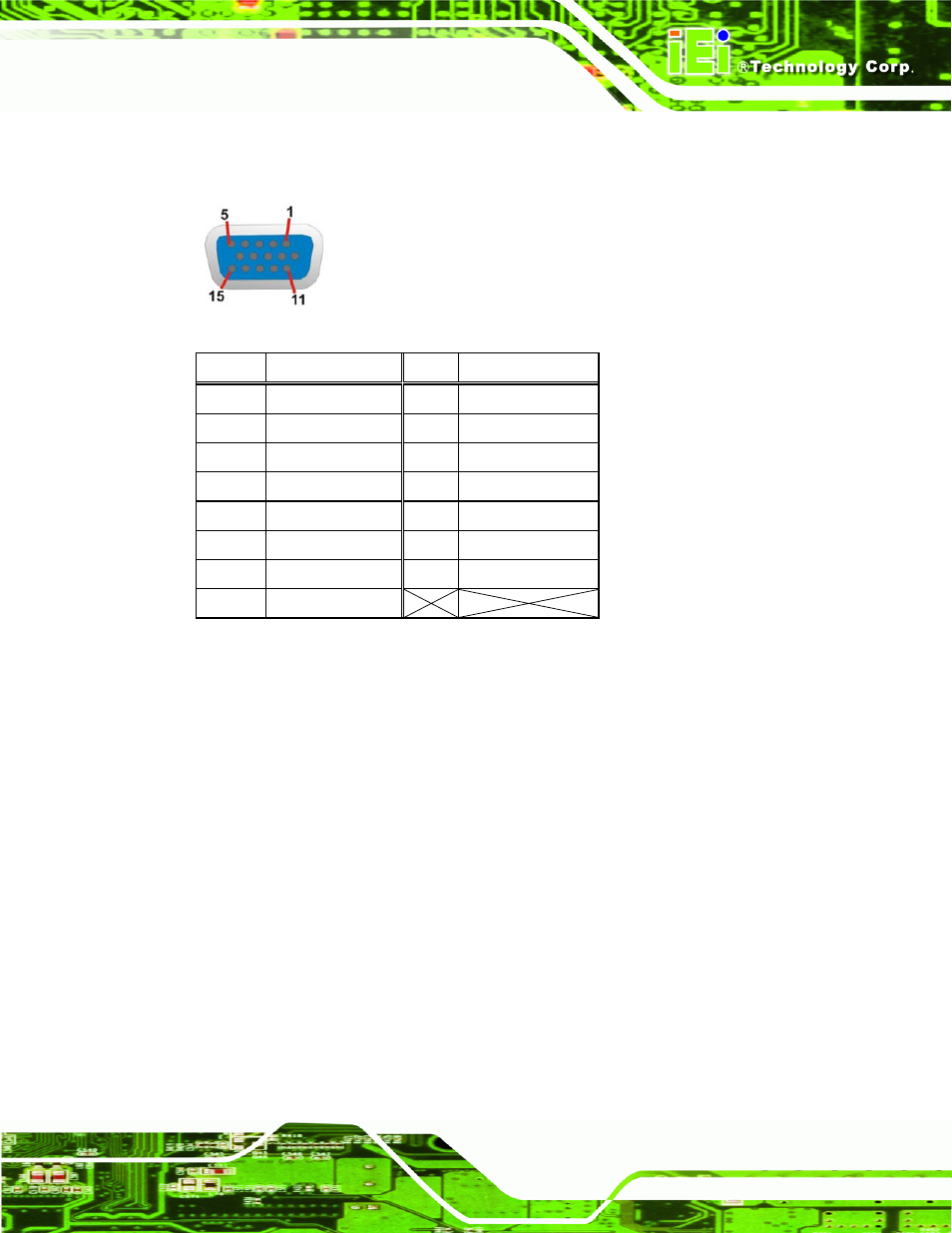

Figure 3-28: VGA Connector
Pin Description Pin Description
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 VCC
7 GND 8 GND
9 VCC 10 GND
11 NC 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 3-31: VGA Connector Pinouts
